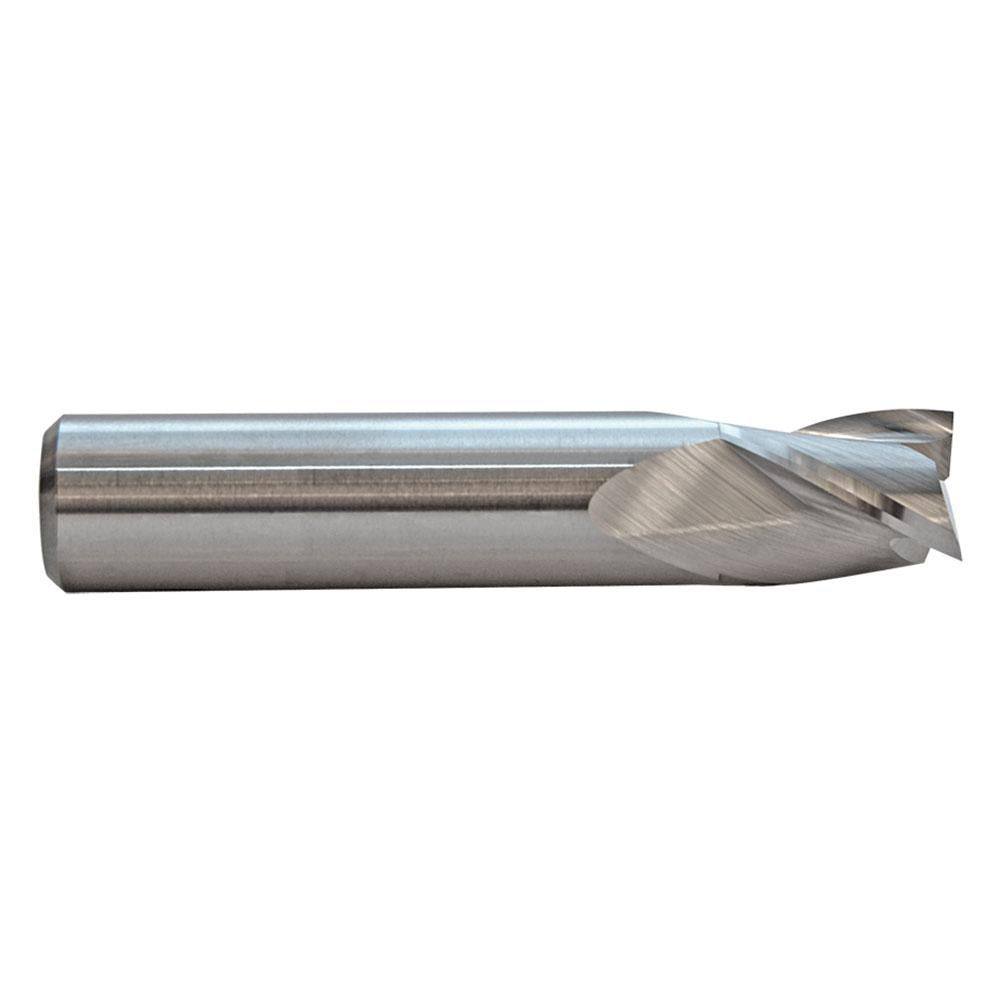

M.a. Ford 16918750 Square End Mill 3 Flute Solid Carbide

Product Description

The M.A. FORD 16918750 is a solid carbide square end mill designed for precision milling operations in metalworking and machining applications. Built from micrograin carbide, this 3-flute tool measures 0.1875 inches in diameter with a 0.375-inch length of cut and a 2-inch overall length. The 30-degree right-hand spiral helix promotes efficient chip evacuation and smooth cutting action. The bright, uncoated finish suits a wide range of workpiece materials. Machinists and tool and die professionals install this end mill in CNC machining centers and manual milling machines where tight tolerances and controlled material removal are required.

This stub-length end mill is suited for milling operations on materials covering a broad hardness and composition range, including cast iron, non-ferrous metals, stainless steel, heat-resistant alloys, and general steels, as indicated by the primary workpiece material codes H, K, M, N, P, and S. The straight cylindrical shank allows direct mounting in standard collet chucks and end mill holders. Its compact stub geometry provides added rigidity in tight-clearance setups and shallow-cavity work.

Key Features

• Micrograin solid carbide construction for wear resistance and edge retention
• 3 flutes with a 30-degree right-hand spiral helix for efficient chip flow
• Center-cutting design allows plunge entry into the workpiece
• Bright, uncoated finish compatible with a wide range of workpiece materials
• Mill diameter tolerance of +0.000 / -0.002 inches for close-tolerance work
• Stub length type adds rigidity and reduces deflection in shallow milling passes

Compatibility

Designed for use in standard collet chucks and end mill holders accepting a 0.1875-inch straight cylindrical shank. Suitable for CNC and manual milling applications on workpiece material categories H, K, M, N, P, and S as classified by the manufacturer.

Installation Notes

Installation should be performed by a qualified machinist following the machine tool manufacturer's setup procedures. Ensure the spindle is fully powered down and at rest before inserting or removing the tool from the holder. Verify collet or holder bore size matches the 0.1875-inch shank diameter before tightening. Inspect the tool edge for chipping or wear before each use and replace if damage is observed.
