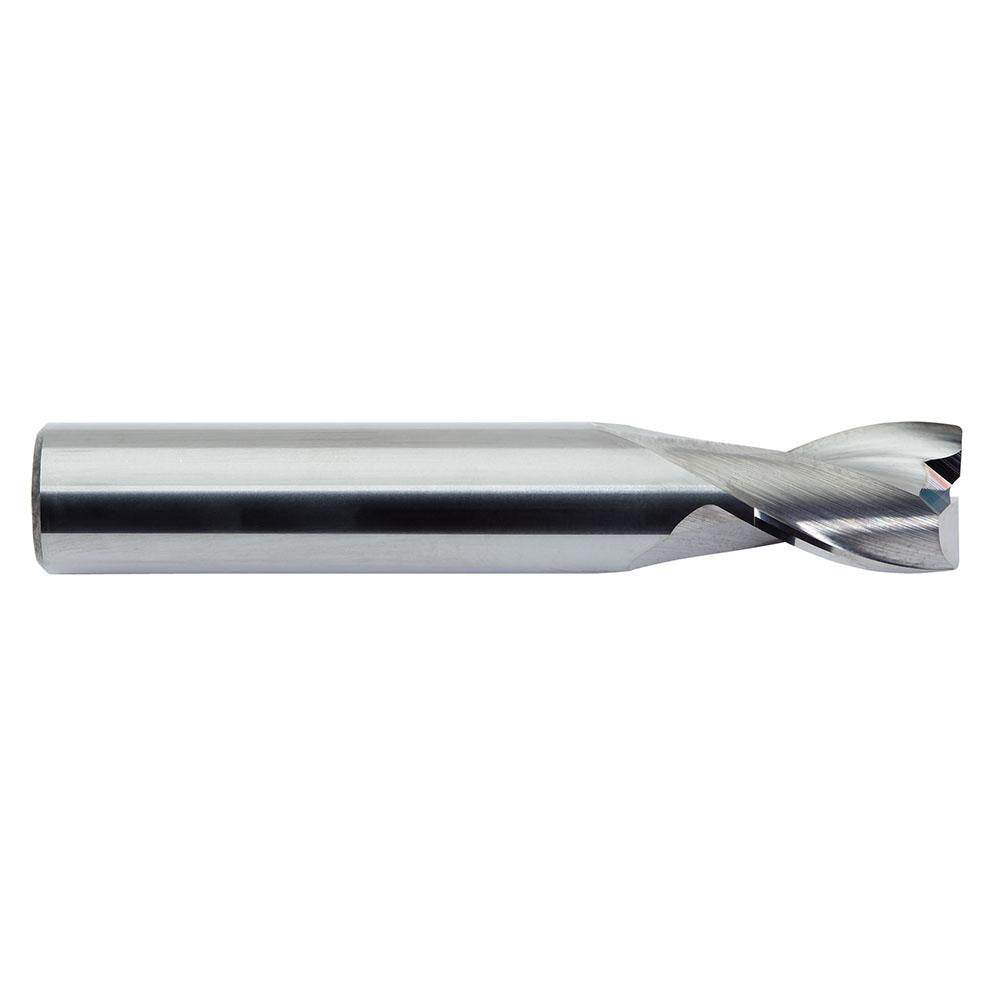

M.a. Ford 13537501 Corner Radius End Mill 3/8 in 2 Flute

Product Description

The M.A. FORD 13537501 is a solid carbide corner radius end mill designed for precision material removal in non-ferrous metal applications. It features a 3/8 inch diameter with a 0.015 inch corner radius, a 30-degree helix angle, and 2 right-hand spiral flutes. The bright, uncoated micrograin carbide construction provides rigidity and edge retention when cutting aluminum, copper, brass, and similar materials. At 3 inches overall length with a 1/2 inch length of cut, it fits standard toolholders with a 3/8 inch straight-cylindrical shank. This is a centercutting, single-end tool suitable for both roughing and finishing passes.

This end mill is intended for use in CNC machining centers, vertical mills, and manual knee mills running non-ferrous workpiece materials. The coarse pitch and medium helix style support efficient chip evacuation when working aluminum and other gummy or soft metals. The corner radius geometry reduces edge chipping at the cutting corner compared to a sharp-corner end mill, making it well suited for slotting, profiling, and pocket milling where corner durability matters. It is used by machinists, tool-and-die shops, and precision job shops.

Key Features

• Solid micrograin carbide construction for rigidity and edge retention in non-ferrous cuts
• 0.015 inch corner radius reduces edge chipping during slotting and profiling
• 30-degree medium helix angle promotes efficient chip evacuation
• Centercutting design allows direct plunge entry into the workpiece
• Bright, uncoated finish suited for non-ferrous materials where coating adhesion is not required
• Right-hand cut and right-hand flute direction for use in standard CNC and manual mill setups

Compatibility

Designed for use with standard straight-cylindrical toolholders accepting a 3/8 inch shank. Intended for non-ferrous metal workpiece materials per Series 135 application guidelines.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. Power down and lock out the machine spindle before loading or changing the tool. Seat the shank fully in the toolholder collet or end mill holder and torque the retention hardware per the toolholder manufacturer specification. Verify runout with a dial indicator before commencing the cut, as excessive runout will accelerate edge wear on a carbide tool.
