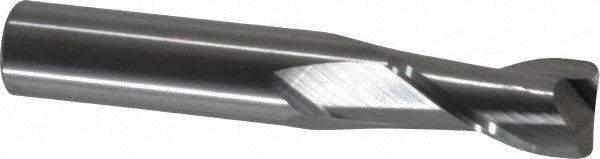

M.a. Ford. 12150005 Corner Radius End Mill 0.5in 2 Flute

Product Description

The M.A. FORD. 12150005 is a solid carbide corner radius end mill designed for precision material removal in demanding machining environments. It features a 0.5 inch mill diameter, a 0.06 inch corner radius, and a 2-flute spiral configuration with a 30-degree helix angle. The single-end, centercutting design allows plunge entry and full peripheral cutting. Built from micrograin solid carbide, this tool delivers the edge retention and rigidity required when cutting steel, stainless steel, cast iron, non-ferrous metals, superalloys, titanium, and hard materials. It runs uncoated and is classified as a roughing tool within M.A. FORD. Series 121.

This end mill is suited for CNC machining centers and manual mills where a controlled corner radius is needed to reduce stress concentrations at slot or pocket corners. The 1 inch length of cut and 3 inch overall length make it a standard-reach option for general-purpose milling operations. Compatible workpiece materials span a broad range including steel, stainless steel, cast iron, non-ferrous metals, superalloys, and titanium, making it a versatile choice for job shops and production machining environments. It mounts in a standard straight-bore toolholder with a 0.5 inch shank bore.

Key Features

• 0.06 inch corner radius reduces stress risers at pocket and slot corners
• Micrograin solid carbide construction provides superior edge retention on hard and abrasive materials
• 2-flute coarse pitch design promotes chip evacuation during roughing passes
• 30-degree helix angle balances cutting forces for stable material removal
• Centercutting geometry allows direct plunge entry without a pre-drilled pilot hole
• Uncoated bright finish suitable for use with cutting fluids or dry applications on non-ferrous materials

Compatibility

Designed for use with standard straight-bore cylindrical toolholders accepting a 0.5 inch shank diameter. Rated for primary workpiece materials including Steel, Stainless Steel, Cast Iron, Non-Ferrous Metal, Superalloys and Titanium, and Hard Material per ISO material codes P, M, K, N, S, and H.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Ensure the machine spindle is fully stopped and the toolholder is securely clamped before inserting or removing the end mill. Verify runout with a dial indicator after tool change to confirm proper seating in the holder. Follow the machine manufacturer and tooling supplier feed and speed recommendations for the specific workpiece material being cut.
