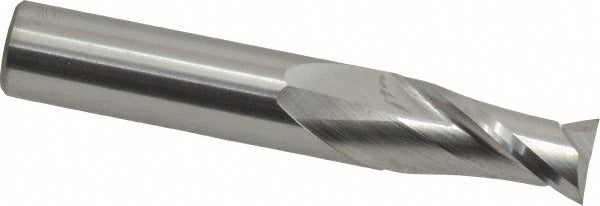

M.a. Ford 12150000 Square End Mill 1/2 Inch Solid Carbide

Product Description

The M.A. FORD 12150000 is a solid carbide square end mill designed for precision milling in a wide range of metalworking applications. It features a 1/2 inch cutting diameter, a 1 inch length of cut, and a 3 inch overall length with a straight cylindrical 1/2 inch shank. Constructed from micrograin solid carbide, the tool delivers tight dimensional accuracy with a mill diameter tolerance of +0.000/-0.003 inches. The 30-degree helix spiral flute geometry promotes efficient chip evacuation and stable cutting performance. This is a right-hand cut, right-hand flute, centercutting tool, meaning it can plunge directly into the workpiece. It carries no coating and is supplied as a single end mill in Series 121 regular length configuration.

This end mill is suited for milling operations across a broad spectrum of workpiece materials, including cast iron, non-ferrous metals, steel, stainless steel, heat-resistant superalloys, and other materials classified under primary material codes H, K, M, N, P, and S. Its centercutting capability makes it practical for slotting, profiling, and plunge operations in both manual and CNC machining setups. Machinists working in job shops, tool rooms, and production environments will find the 2-flute geometry effective for applications requiring aggressive chip removal or work in softer and gummy materials where flute clearance matters.

Key Features

• 1/2 inch cutting diameter with +0.000/-0.003 inch tolerance for precise fits
• Micrograin solid carbide construction for rigidity and wear resistance
• 30-degree helix angle spiral flute for effective chip evacuation
• Centercutting design allows direct plunge entry into the workpiece
• Right-hand cut and right-hand flute geometry for standard spindle rotation
• Uncoated finish suitable for use with appropriate cutting fluids across multiple material types

Compatibility

Compatible with workpiece materials designated under primary material codes H, K, M, N, P, and S, covering cast iron, non-ferrous metals, mild steel, stainless steel, heat-resistant alloys, and titanium alloys. Designed for use in standard 1/2 inch collet chucks, end mill holders, or hydraulic tool holders on CNC machining centers and manual mills.

Installation Notes

Installation should be performed by a qualified machinist following shop safety protocols. Ensure the machine spindle is fully stopped and the tool holder is clean and free of debris before seating the shank. Verify runout with an indicator after clamping to confirm concentricity within acceptable limits. Follow the machine tool manufacturer and cutting tool manufacturer recommendations for speeds, feeds, and depth of cut for the specific workpiece material.
