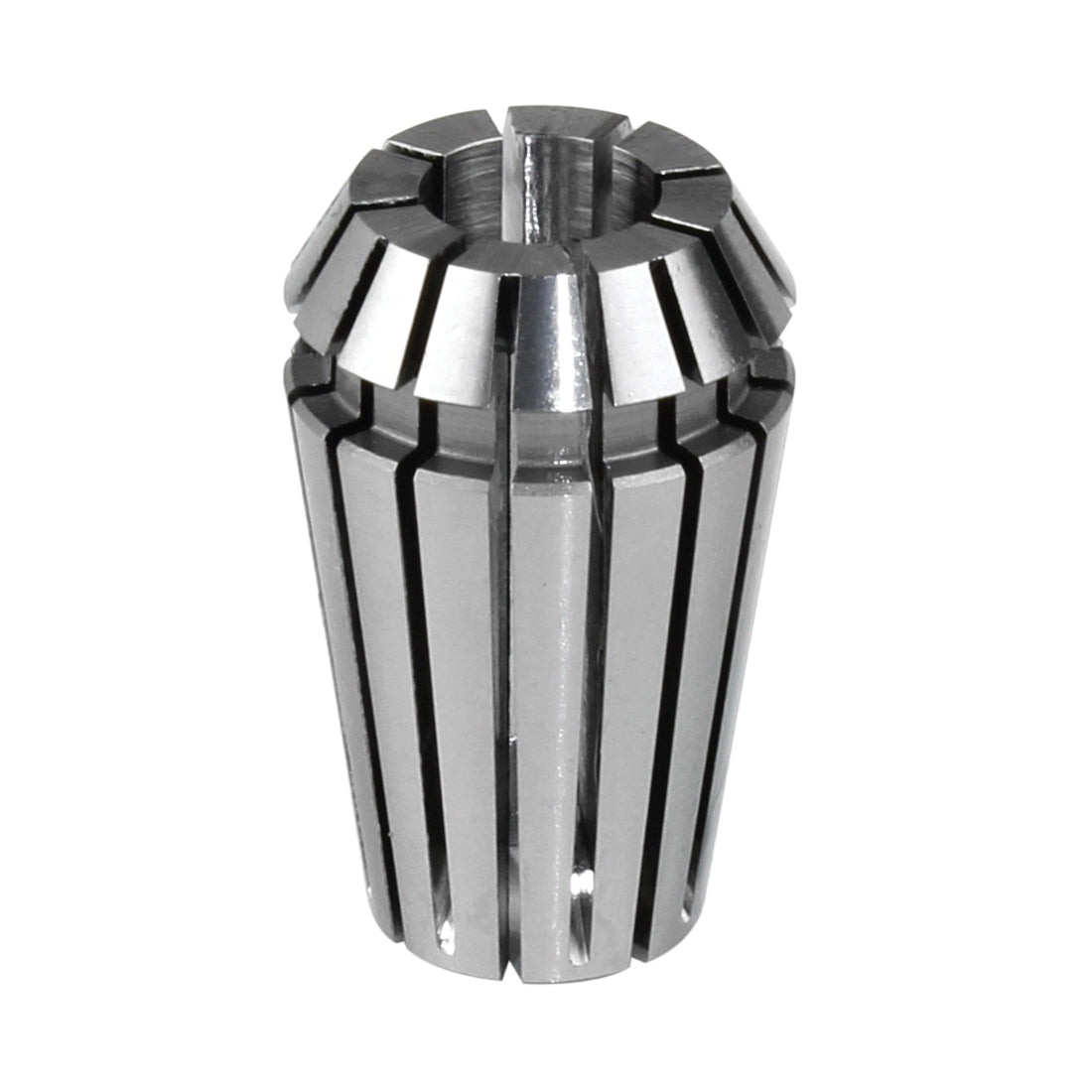

Lyndex-Nikken E16-012 LYNDEX ER16 3/16 COLLET

Product Description

The Lyndex-Nikken E16-012 is a precision collet designed for standard ER16 applications. It has a size of three-sixteenth inches, which is equivalent to four point seven six three millimeters. This collet provides a clamping range from zero point one five six to zero point one eight seven inches, or four to four point seven millimeters. It is commonly used in various machining tasks where accurate gripping of tools is necessary.

• Compatible with ER collet chucks
• Precision slots for even clamping
• Suitable for tight tolerances

Product Highlights

This collet is made by Lyndex-Nikken and offers reliable performance for machining needs.

Product Information

Standard Information

• Brand: Lyndex-Nikken
• Collet Series: ER16

Technical Specifications

• Size: 3/16 inches (4.763 mm)
• Clamping Range: 0.156 - 0.187 inches (4 - 4.7 mm)
• Body Diameter: 17.2 mm
• Head Diameter: 17.2 mm
• Overall Length: 27 mm
• Suitable For Use With: ER Collet Chuck
