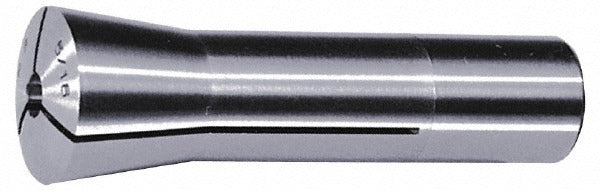

Lyndex-nikken 810-SET-21 R8 Collet Set 21 Pc

Product Description

The LYNDEX-NIKKEN 810-SET-21 is a 21-piece R8 collet set covering a capacity range of 1/8 inch to 3/4 inch in 1/32-inch increments. R8 collets are the standard toolholding interface for Bridgeport-style vertical knee mills and compatible machines. This set delivers a full working range in a single package, allowing machinists and tool room technicians to hold a wide variety of round-shank end mills, drills, and reamers without sourcing individual collets. The set weighs 11.44 pounds and ships as a complete matched set from LYNDEX-NIKKEN, a manufacturer known for precision toolholding components.

This collet set is suited for production shops, tool rooms, and job shops running R8-spindle vertical milling machines. The 21 included sizes span from 1/8 inch through 3/4 inch, covering the most common shank diameters used in general milling operations. Sizes included are: 1/8, 3/16, 7/32, 1/4, 9/32, 5/16, 11/32, 3/8, 13/32, 7/16, 15/32, 1/2, 17/32, 9/16, 19/32, 5/8, 21/32, 11/16, 23/32, and 3/4 inch, plus one additional size completing the 21-piece count. Machinists benefit from having every 1/32-inch step on hand for rapid tooling changeovers.

Key Features

• R8 collet system - fits Bridgeport-style vertical knee mills and R8-spindle machines
• 21-piece set with 1/32-inch size increments from 1/8 inch to 3/4 inch
• Full range coverage eliminates the need to source individual collets for common shank sizes
• Complete matched set for consistent toolholding performance across all included sizes
• UNSPSC Code 27112800 - classified as standard cutting tool accessories

Compatibility

Designed for use with R8-spindle milling machines. Collets in this set follow the R8 collet system specification.

Installation Notes

R8 collets are installed and removed by a qualified machinist or toolroom technician. The machine spindle must be fully stopped and the drawbar must be backed off the correct number of turns before seating or releasing the collet - do not strike the drawbar aggressively or allow the collet to free-fall from the spindle. Use the appropriate collet wrench and drawbar wrench for your machine; do not overtighten the drawbar beyond the manufacturer-recommended feel, as this can distort the collet bore and shorten service life. Inspect collet bores and tapers for chips or damage before each use.
