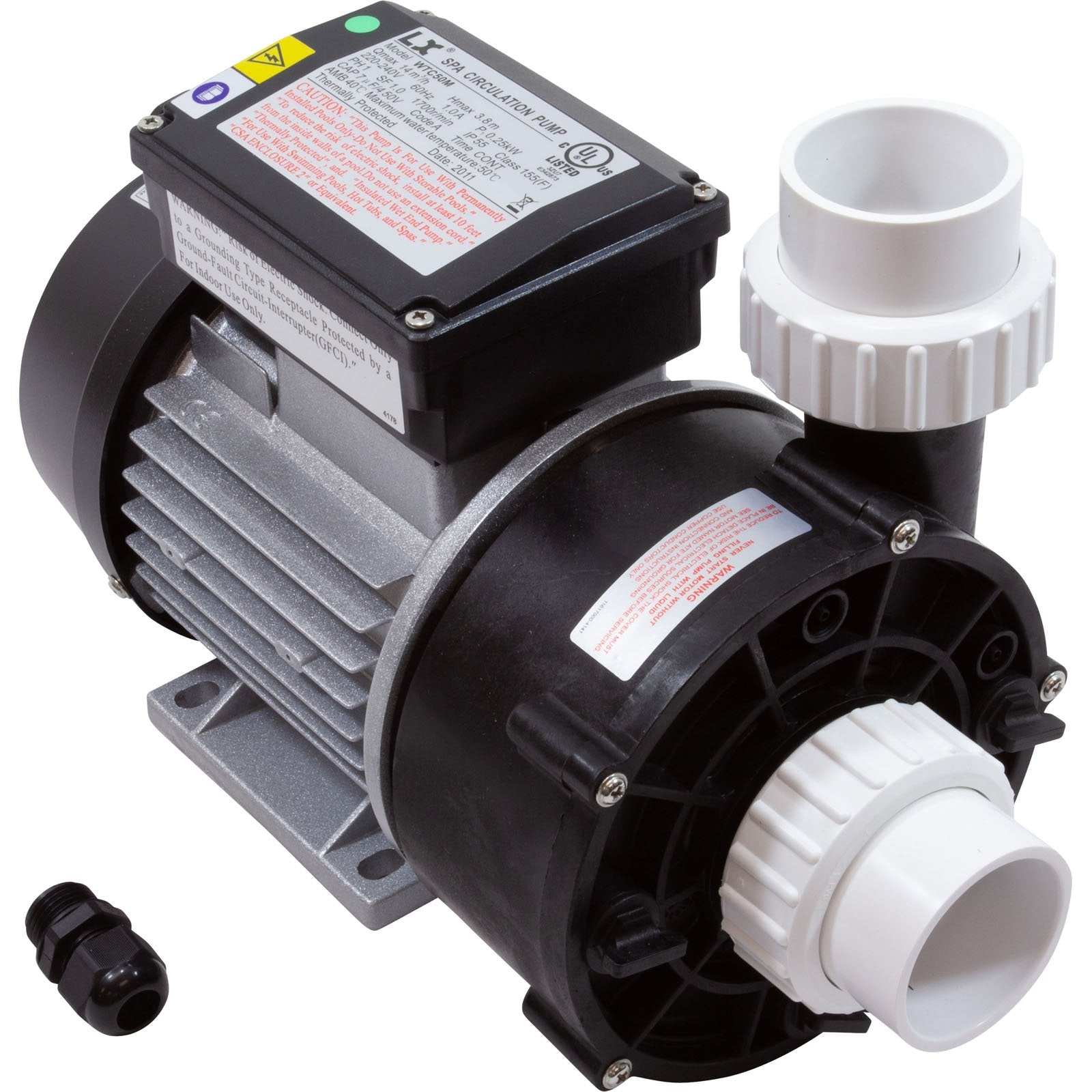

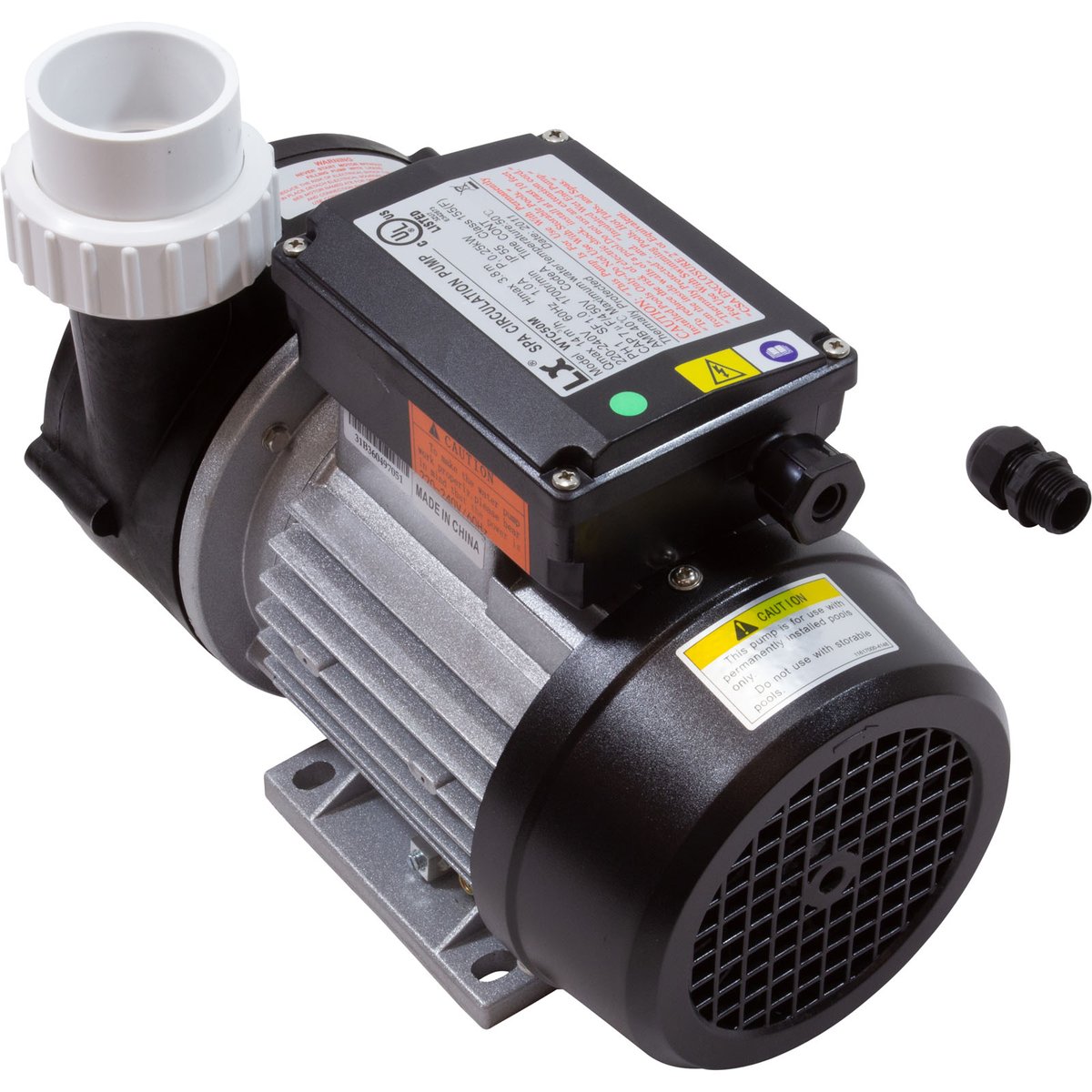

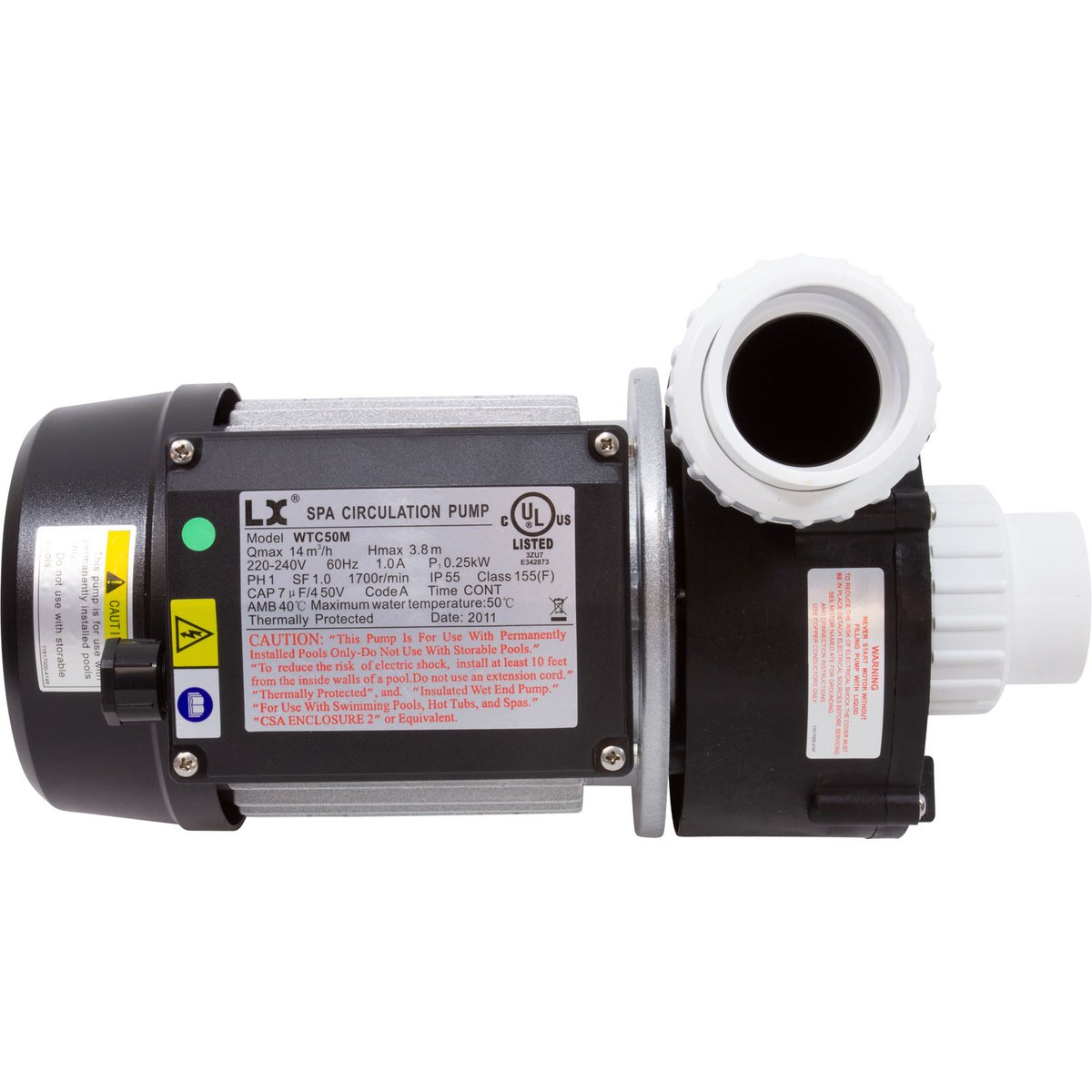

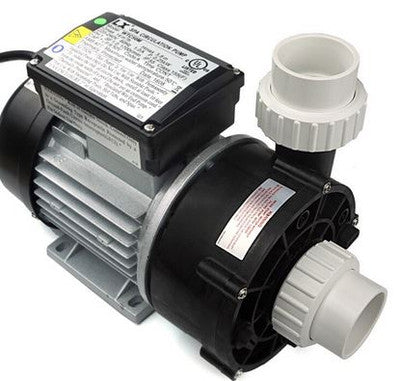

Lx Pumps WTC50M (Standard) Lx Circulation 1/5 Hp (1.5 inches Standard Snout)

Product Description

The LX PUMPS WTC50M (Standard) LX Circulation is a circulation pump designed for spa and hot tub applications. It operates at 230V and 1A, delivering up to 35 gallons per minute. This single-speed pump features 1.5" standard side discharge plumbing connections and includes two pump unions.

• 24 hour circulation pump
• 1 1/2 Inch plumbing connections
• 48 Frame dedicated circ pump for spas

Product Highlights

The LX Circulation pump is ideal for maintaining constant water circulation in spas and hot tubs, ensuring consistent temperature and water quality.

Product Information

Standard Information

• Brand: LX PUMPS
• Manufacturer Part Number: WTC50M ( STANDARD)
• Country of Origin: China

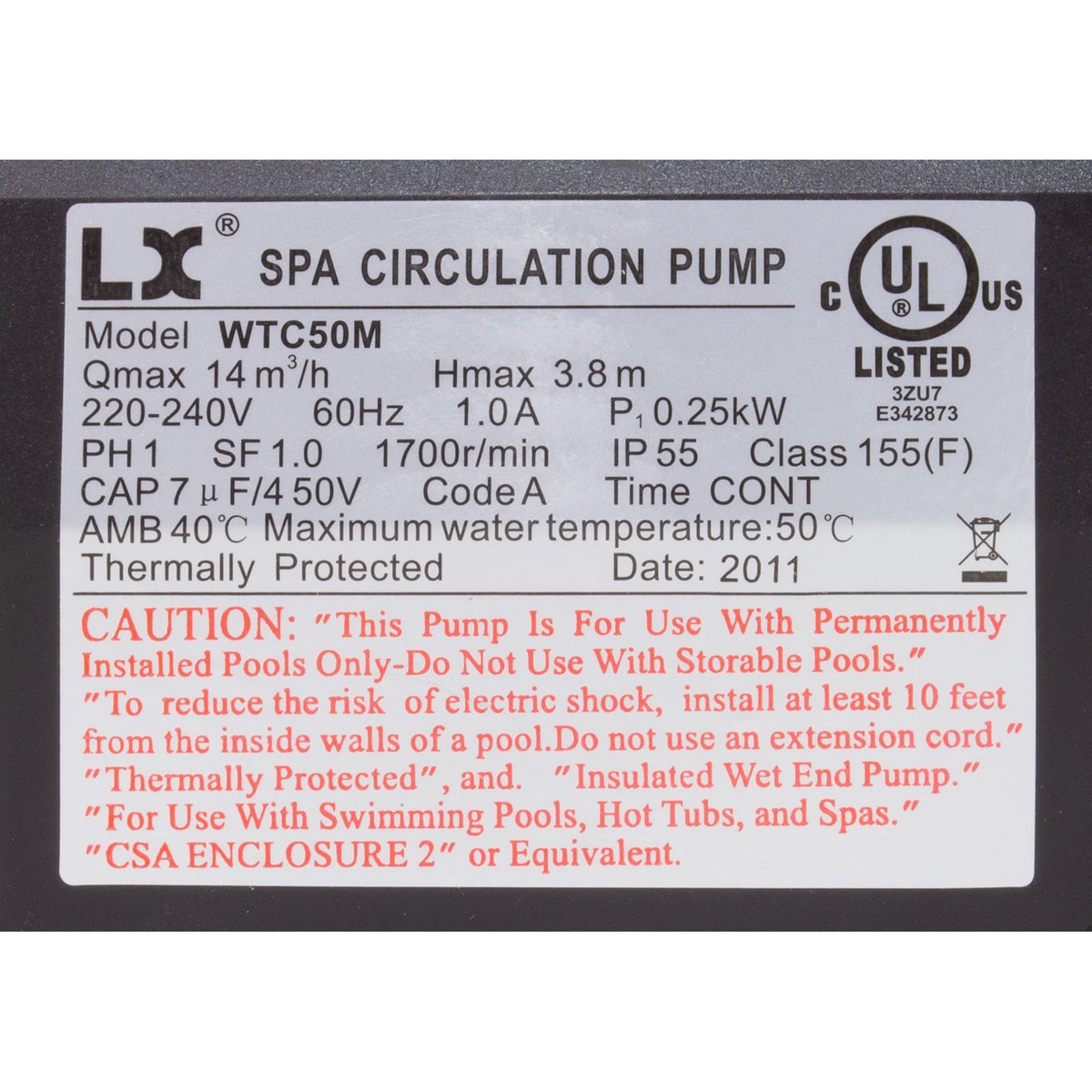

Technical Specifications

• Mfg #: WTC50M (Standard)
• SKU: WTC50M (Standard)
• Frame: 48 Frame
• Voltage: 230V
• Amperage: 1.0 amp
• Horsepower: 0.35HP
• Intake: 1-1/2"
• Discharge: 1-1/2" Side Discharge
• Country of Origin: China
• MPN: WTC50M
• intake/outake size: 1.5" Male Part Threads (MPT)
• Electrical: 220-240V 50/60Hz
• Model: 0.35HP / 250 watts
• Brand: LX pumps
• Set Includes: compression unions
• Type: Recirculation
• Accessory Pump Type: Circulation
• Manufacturer: Lingxiao-Pump
• Pump Model: WTC
• Speed: 1 Speed (1-Spd)
• Motor Voltage: 230v
• Drain Plug Location: 6,9 o`clock
• Suction Style: Center
• Suction Connection Type: Male Buttress Thread (mbt)
• Suction Pipe Size: 1-1/2"
• Discharge Style: Side
• Discharge Connection Type: Male Buttress Thread (mbt)
• Discharge Pipe Size: 1-1/2"
• Motor Frame: 48 Frame Thru-Bolt
• Motor Amperage/Wattage: 1.0A
