Lx Pumps 56WUA300-II Pump 3HP 2-Speed

Product Description

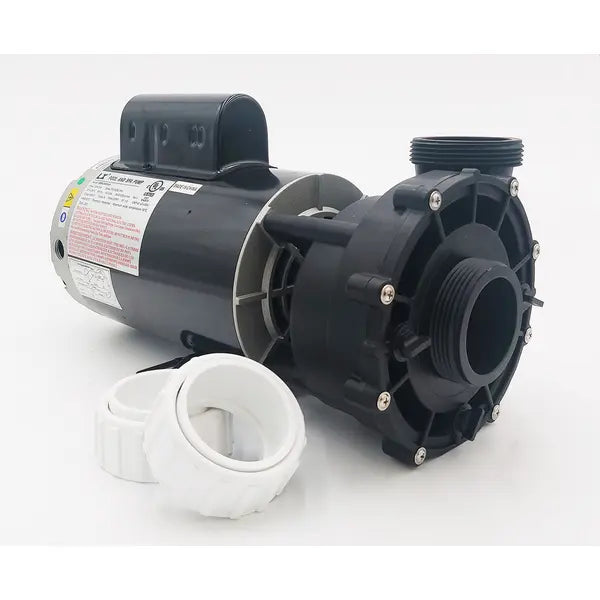

The LX PUMPS 56WUA300-II is a 3HP 2-speed, 230 volt, 56 frame pump designed for 2 inch inner diameter plumbing. This pump is designed for SPA large-pool usage in North American that can achieve to high-speed for massage and low speed for filter and cycle functions. It comes with a mounting base.

• 2-speed
• 230 volt
• 56 frame pump

Product Highlights

The 56WUA300-II is a LX Spa Pump designed for pool and spa applications. It has a 2-inch pipe connection and delivers high-quality power that guarantees optimal performance.

Product Information

Standard Information

• Brand: LX PUMPS
• Manufacturer Part Number: 56WUA300-II
• Country of Origin: China

Technical Specifications

• Frame: 56
• Voltage: 230V
• Amperage: 10.0 amps on high speed and 3.5 amps on low speed
• Horsepower: 3.0 HP
• Speeds: 2
• Intake: 2"
• Discharge: 2" Side Discharge
• Application: Suitable for hydro massage tube or spa system and circulation or filter of swimming pool system; Suitable for circulating water equipment that use for workshop cooling-down. (Single-speed)
• Voltage and Frequency: 220-240V/60HZ
• Fitting Size Available: 60.3mm, 63mm, 75 mm
• Insulation class: F
• Protection: IPX5

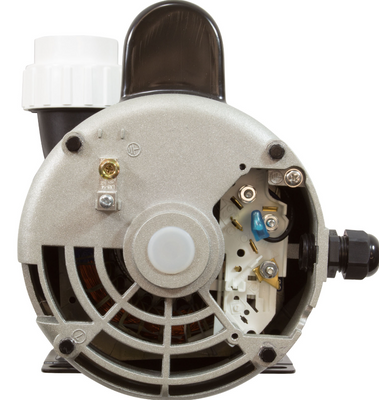

• Motor: Fan cooling motor and 56 frame are suitable for North American. High and low dual-speed motor is allowed to select.
• Brand: LX
• Discharge Size: 2" MBT
• Frame Size: LX56
• Intake Size: 2" MBT
• Number of Speeds: 2
• Mounting: Welded steel mounting bracket under the motor
• Compatible Brand: For LX
• Type: Pump
• Material: Metal
• MPN: 56WUA300-II
• Condition: New
