Lx Pumps 48wua2002c-ii (nf) pump 2.0hp 2-spd 48 frame

Product Description

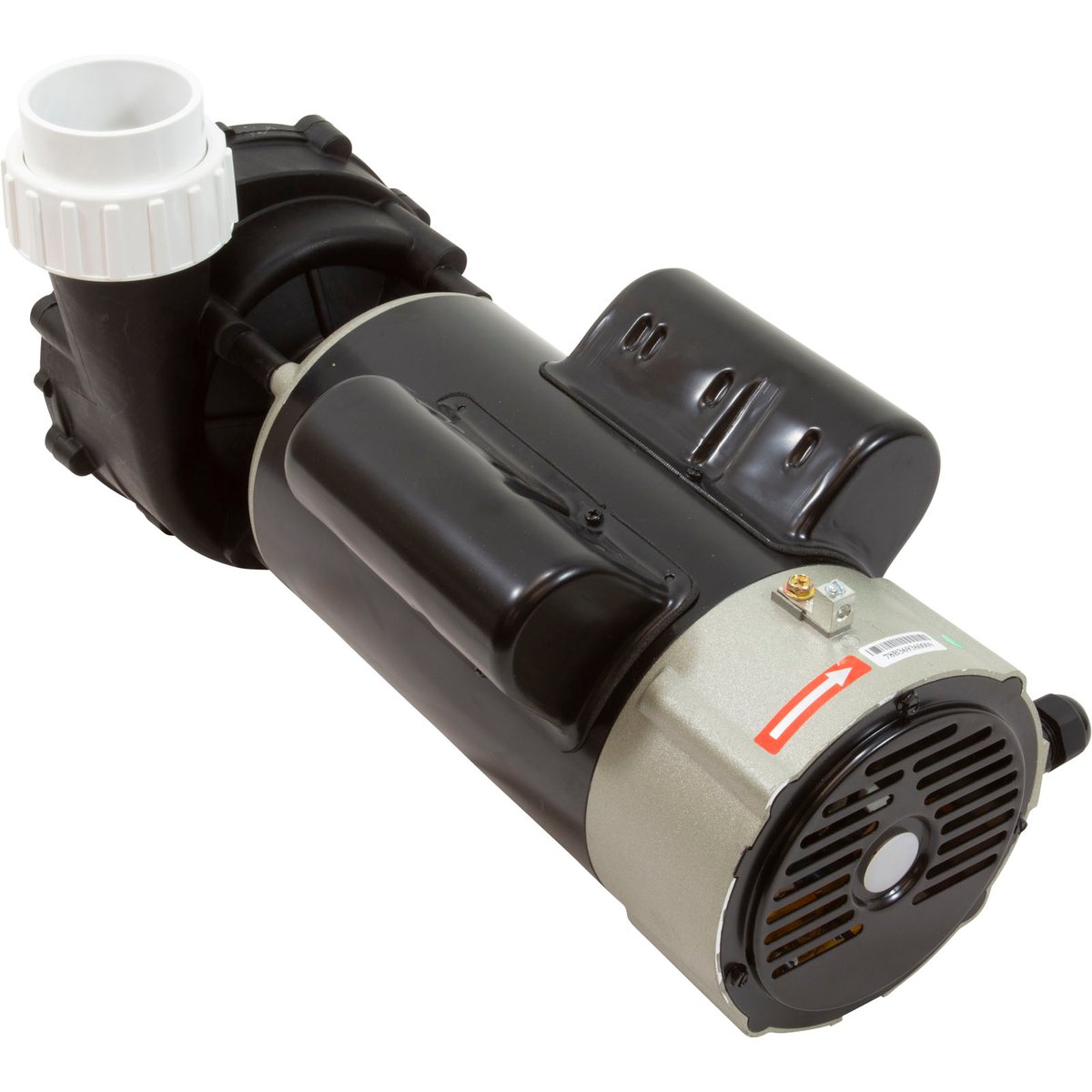

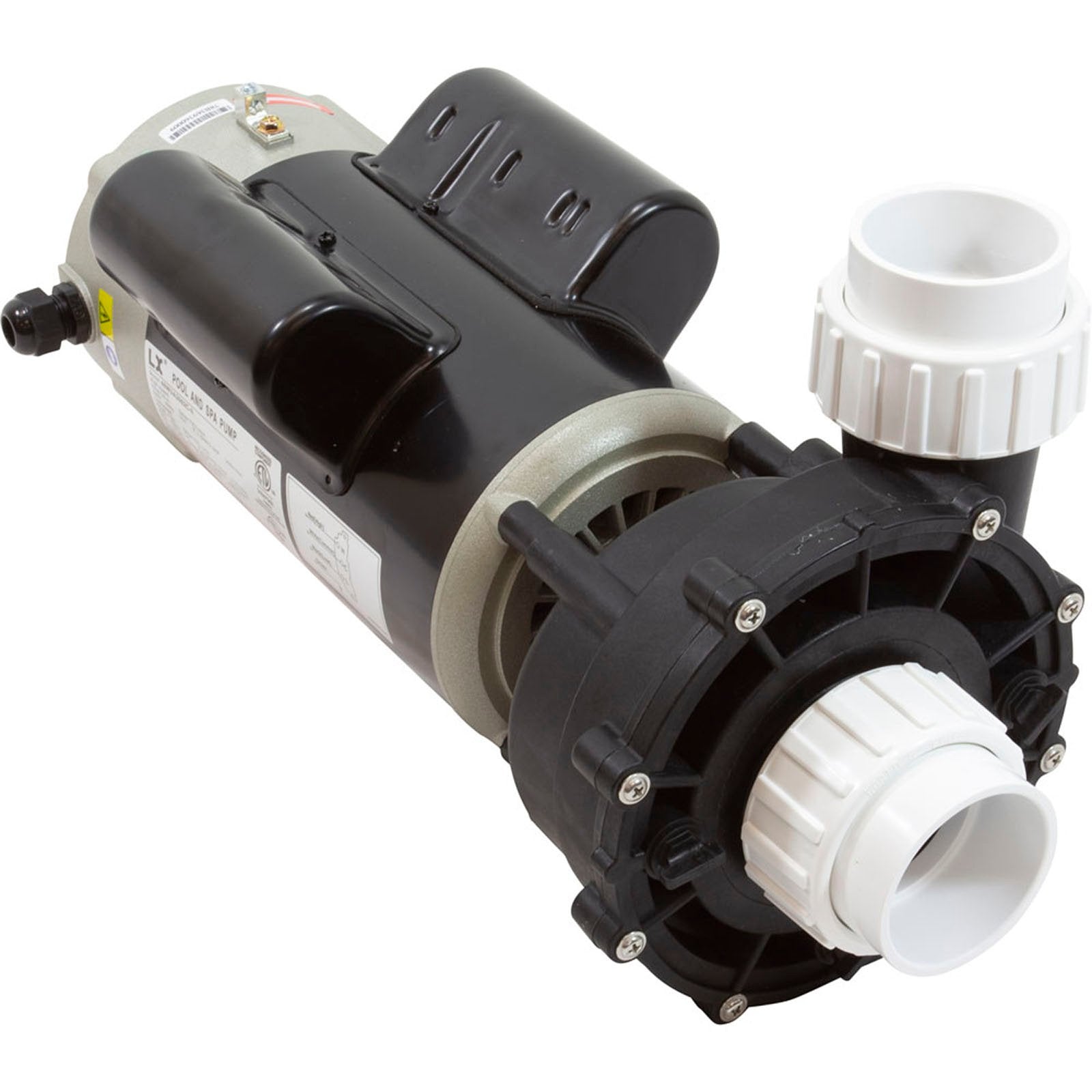

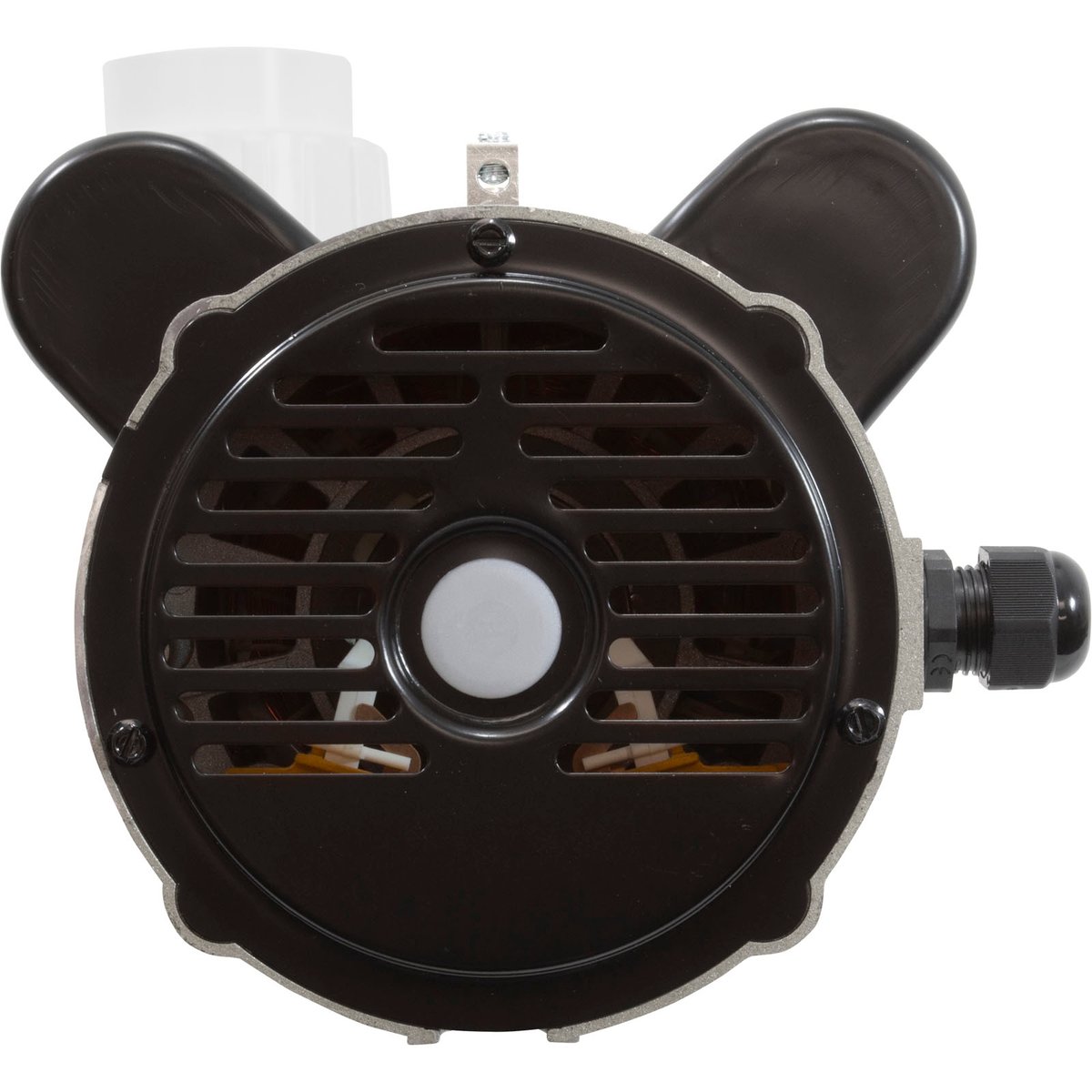

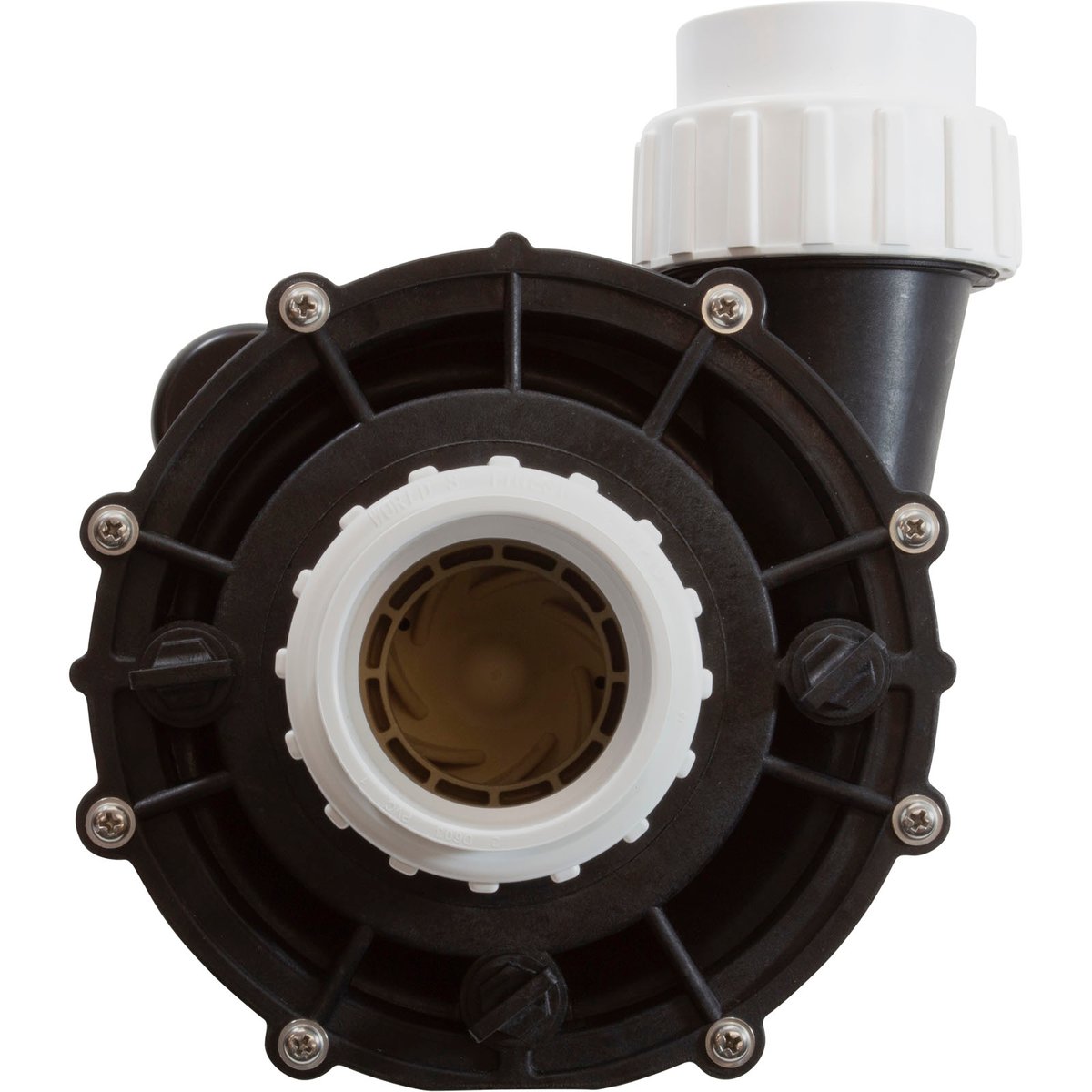

The LX PUMPS 48WUA2002C-II (NF) is a 2.0hp, 2-speed pump designed for spa systems. Operating at 230V and 60HZ for use in US/Canada, it offers both high-speed for powerful massage and low-speed for efficient filtration. This pump features a 48 frame, 2" inlet and outlet, and a baseless design requiring a separate bracket for installation.

• 230V, 60HZ for use in US/Canada
• 2 Speed (2-Spd)
• 48 Frame
• Replaces multiple Sundance pump models

Product Highlights

The LX PUMPS 48WUA2002C-II (NF) is a 2.0hp 2-speed spa pump with a 48 frame, designed for efficient filtration and powerful massage.

Product Information

Standard Information

• Brand: LX PUMPS
• Manufacturer Part Number: 48WUA2002C-II (NF)

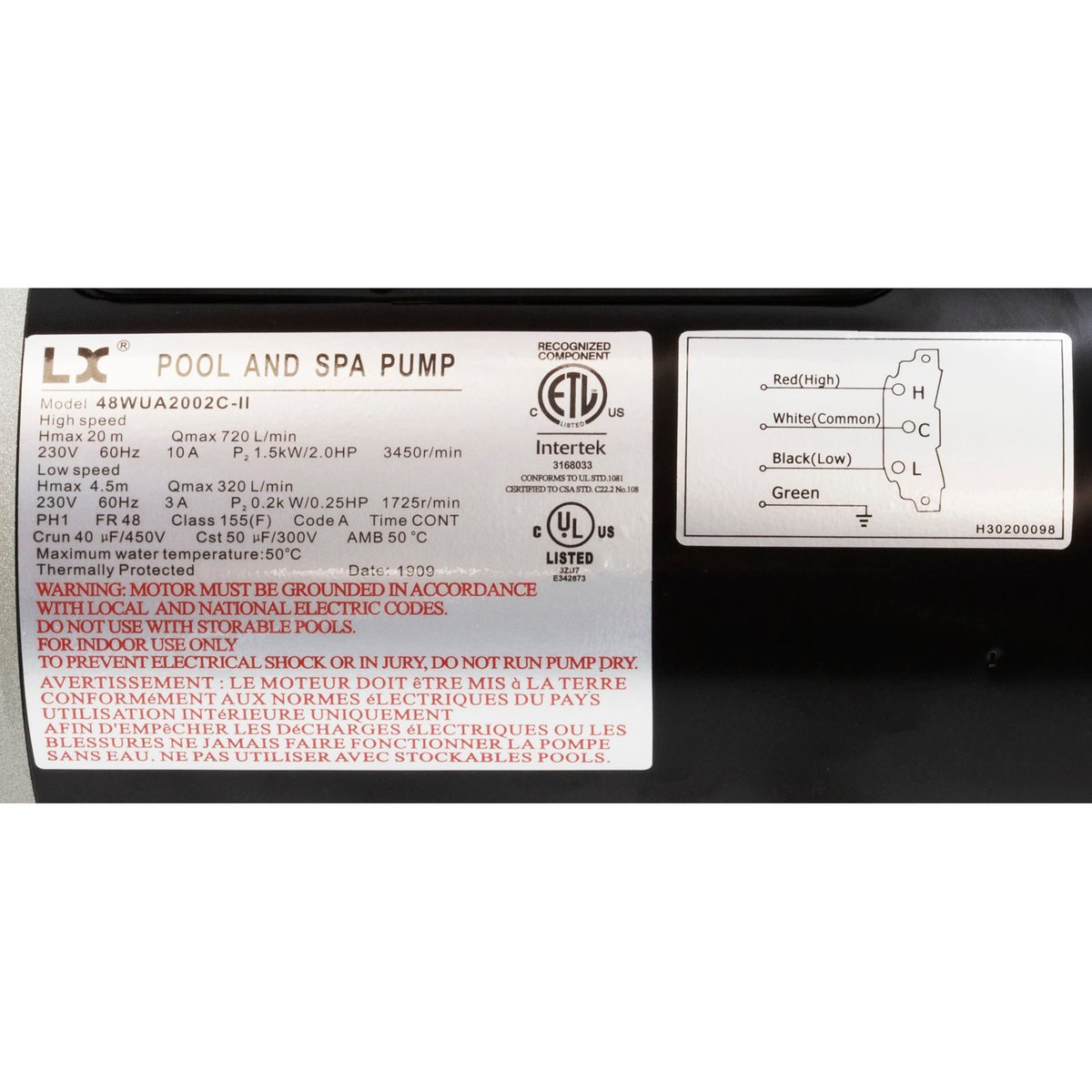

Technical Specifications

• Manufacturer: Lingxiao (LX) Pump
• Pump Model: 48WUA
• Speed: 2 Speed (2-Spd)
• Motor Voltage: 230v
• Drain Plug Location: 3,6,9 o`clock
• Suction Style: Center
• Suction Connection Type: Male Buttress Thread (mbt)
• Suction Pipe Size: 2"
• Discharge Style: Side
• Discharge Connection Type: Male Buttress Thread (mbt)
• Discharge Pipe Size: 2"
• Horsepower: 2.0hp
• Motor Frame: 48 Frame Thru-Bolt
• Motor Amperage/Wattage: 10.0A/3.0A
• Frequency (Hz): 60
• Number of Speeds: 2
• Frame Size: 48Y
• Voltage: 230V
• Discharge Location: Side
• Discharge Size: 2" MBT
• High Speed (Amp): 10
• Lo Speed (Amp): 3
• Alternate Part Numbers: 6500-092, SD6500-092, 48WUA2002CIISUN, 6500-096
