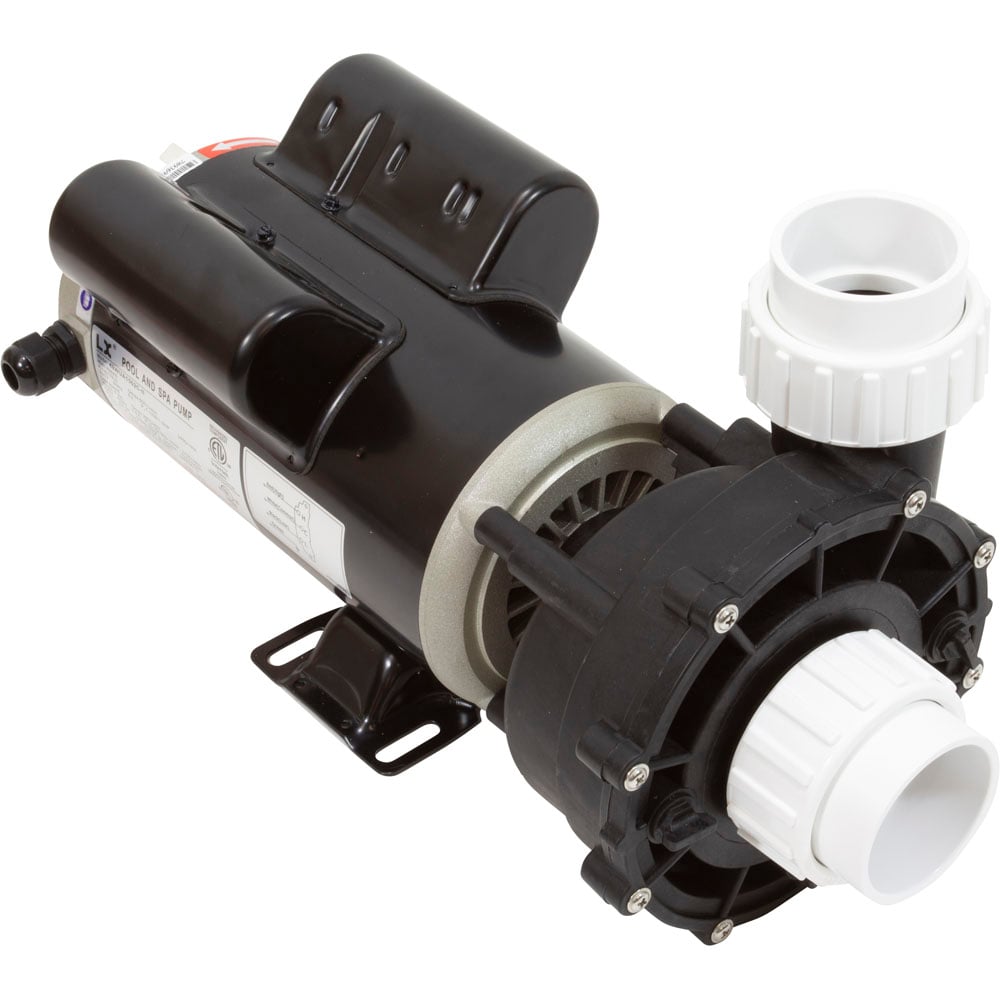

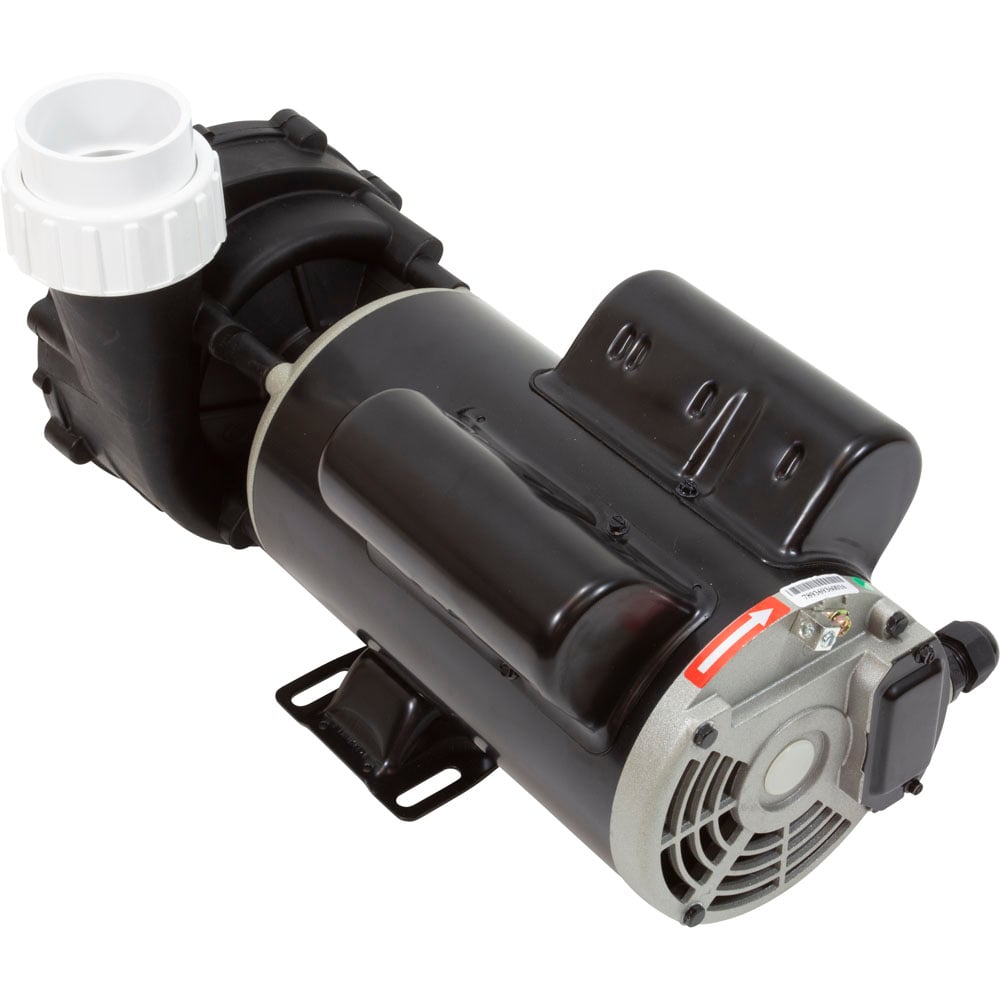

Lx Pumps 48WUA1502C-II Spa Pump 1.5Hp 230V 2-Speed 48 Frame 2 inches

Product Description

The LX PUMPS 48WUA1502C-II spa pump is a 1.5Hp 230V 2-speed pump with a 48 frame and 2" inlet and discharge. This LX model is commonly used to replace Aqua Flo XP2e 1.5 HP 230 Volt 48 frame pumps with 2" inlet and discharge. It is designed for efficient water circulation in pools and spas.

• Replaces Aqua Flo XP2e 1.5 HP 230 Volt 48 frame pump
• 2 speed
• 2" inlet and discharge

Product Highlights

The LX 48WUA1502C-II spa pump is a reliable replacement for Aqua Flo XP2e pumps, offering efficient 2-speed operation and easy 2" plumbing connections.

Product Information

Standard Information

• Brand: LX PUMPS
• Manufacturer Part Number: 48WUA1502C-II
• Country of Origin: China

Technical Specifications

• Model #: 34-343-1030
• Manufacturer Code: 48WUA1502C-II
• Alternate Part #'s: 48WUA1502C-II, LX48WUA1502CII
• Manufacturer: Lingxiao (LX) Pump
• Pump Model: 48WUA
• Speed: 2 Speed (2-Spd)
• Motor Voltage: 230v
• Drain Plug Location: 3,6,9 o`clock
• Suction Style: Center
• Suction Connection Type: Male Buttress Thread (mbt)
• Suction Pipe Size: 2"
• Discharge Style: Side
• Discharge Connection Type: Male Buttress Thread (mbt)
• Discharge Pipe Size: 2"
• Horsepower: 1.5hp
• Motor Frame: 48 Frame Thru-Bolt
• Motor Amperage/Wattage: 8.0A/2.6A
• HP: 1.5 HP
• Pool / Spa Type: Spa
• Volts: 230
• Amps: 8.0/2.6
• Frame: 48
• Intake Port: 2 in.
• Discharge Port: 2 in.
• Discharge Location: Side
• Amperage: 8.0 amps and 2.6amps on low speed
• Speeds: 2-speed
• Brand: LX
• Type: Pool & Spa Pump
• Voltage: 230.0
• Model: 48WUA1502C-II
• UPC: Does not apply
• Country of Origin: China
