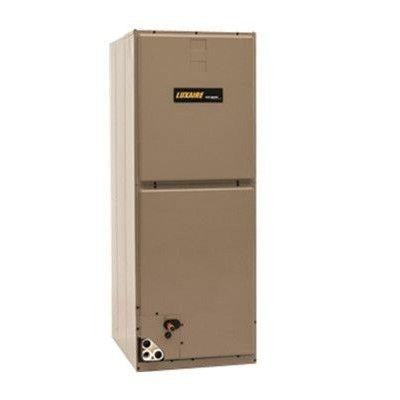

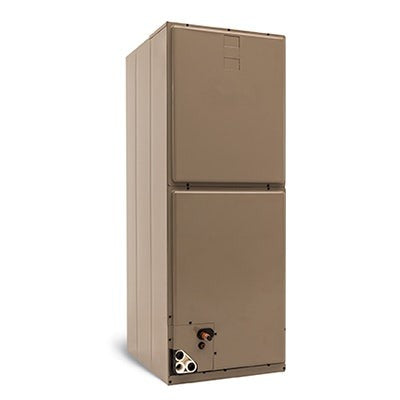

Luxaire AVV25BE121 AVV Communicating, Constant CFM Air Handler 780 CFM

Product Description

The LUXAIRE AVV25BE121 is a communicating, constant CFM air handler. The factory-installed electronic expansion valve provides consistent capacity and efficiency across a wide band of operation. It features multi-position flow as standard and less than 2% air leakages at 1.0" esp. ensures only conditioned air moves through your home.

• Factory-installed electronic expansion valve provides consistent capacity and efficiency across a wide band of operation, and multi-position flow as standard provides everything needed for all installed positions without additional kits
• Less than 2% air leakages at 1.0" esp. ensures only conditioned air moves through your home and unconditioned air isn't introduced into the system
• MaxAlloy coil features advanced corrosion-resistant design for long life

Product Highlights

This air handler integrates with the Hx3 Communicating Zoning System and has a built-in filter rack that accepts 1.0" disposable and cleanable air filters.

Product Information

Standard Information

• Brand: LUXAIRE
• Manufacturer Part Number: AVV25BE121
• Country of Origin: United States

Technical Specifications

• Make: Luxaire
• Manufacturer: Luxaire
• Category: Cooling
• Model code: AVV25BE121
• Quantity: 780 CFM
• Speed: Variable
• Motor Speed: 1/2 HP
• Product Series: AVV Series
• Country of Origin: United States
• Unit Type: Air Handler
• Air Flow Configuration: Multi-Position
• Tons: 2 T
• Maximum Air Flow: 780 CFM
• Stages: Two Stage
• Motor Type: ECM
• Horsepower (HP): 1/2
• Minimum Circuit Amps (MCA): 15 A
• Maximum Fuse Size (MOP): 15 A
• Supply Voltage: 208V, 230V
• Phase: Single Phase
• Hertz: 60Hz
• Refrigerant (ASHRAE): R-410A
• Liquid Line: 3/8"
• Vapour/Gas Line (OD): 3/4"
• Air Filter Nominal Size: 16" x 20"
• Product Length/Depth: 20.5 "
• Product Width: 17.5 "
• Product Height: 47.5 "
