Lutze A3081005 Silflex Control Tray Cable 10 AWG

Product Description

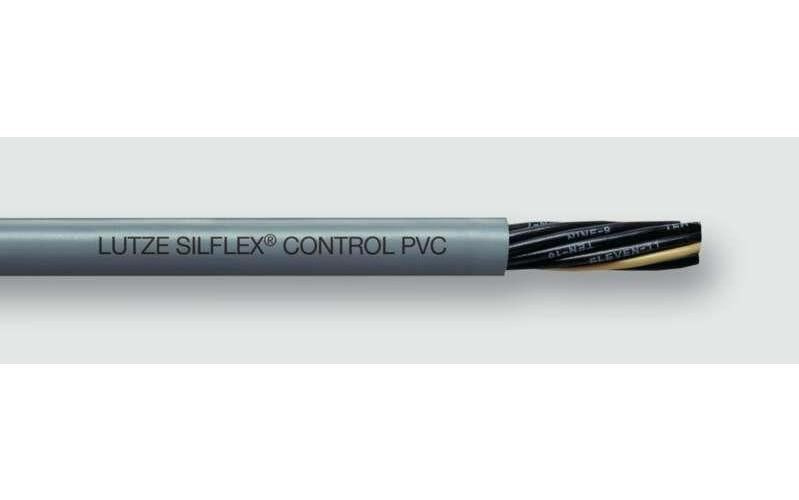

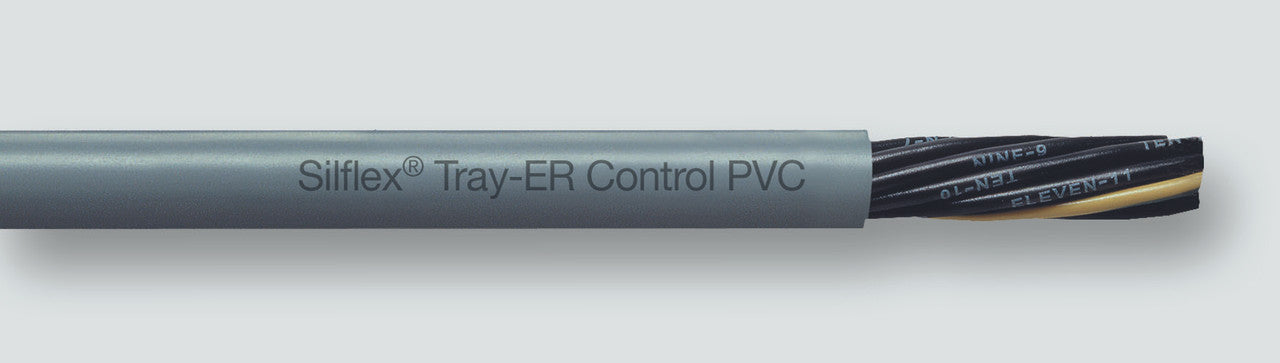

The LUTZE A3081005 Silflex Control Tray Cable is a tray-ER unshielded cable designed for stationary applications. This multi-conductor cable is suitable for machine tools, HVAC, and assembly lines. It features a stranded bare copper conductor, nylon/PVC insulation, and a PVC jacket. The cable is sunlight-resistant and flame retardant.

• Flexible control and tray cable for stationary applications
• Improved oil resistance due to specifically developed PVC jacket
• Easy stripping and fast installation

Product Highlights

Flexible, multi-conductor control cable with oil and sunlight resistance, ideal for industrial applications.

Product Information

Standard Information

• Brand: LUTZE
• Manufacturer Part Number: A3081005

Technical Specifications

• Brand: LUTZE
• Part Number #: A3081005
• Outside Diameter: 0.623 in
• Series: A308
• Strands: 105/30
• Temperature Rating (Degrees F): -40 to 90 deg C Static
• Type: Tray-ER Unshielded
• Insulation material: Nylon/PVC
• Manufacturer Name: LUTZE Inc
• UNSPSC: 26121603
• AWG: AWG 10
• Alternate Part Number: SILFLEX Series
• Nominal Voltage: 1000 V WTTC 600 V TC, MTW 90 300 V PLTC
• Test Voltage: 3000 V
• Temperature Range: Moving: 5 to +90 Fixed: -40 to +90
• Minimum Bending Radius: Moving: D x 15 Fixed: D x 6
• Jacket Material: PVC
• Burning behavior: UL 1581, FT 4
• Copper: 162 Lbs/Mft
• GAUGE: 10
• CONDUCTORS: 5
• SHIELDING: NON-SHIELDED
• CABLE TYPE: UL/TC-ER/WTTC/MTW
• JACKET: GRAY
