Lutze A2161604 VFD Cable DRIVEFLEX

Product Description

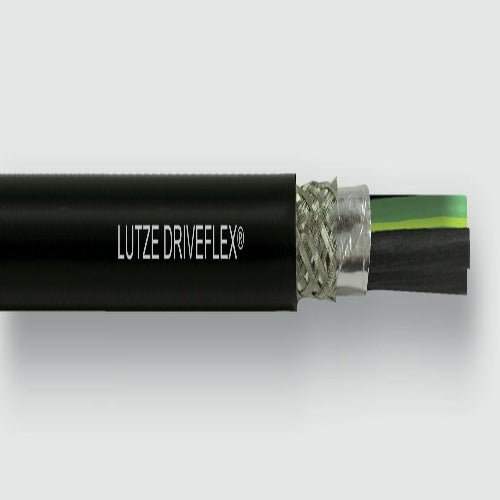

The LUTZE A2161604 DRIVEFLEX cable is designed to cope with the power distortions in VFD applications. It is UL listed as a flexible VFD servo cable and flexible motor supply cable, complying with codes and standards for VFD electrical wiring. DRIVEFLEX XLPE insulation is suited for VFD applications with PWM to handle high voltage and power distortions. Shielded VFD cable helps mitigate electrical noise.

• Special XLPE insulation with low capacitance
• High dielectric strength
• Effective EMC-compatible shielding thanks to 2-layer shield

Product Highlights

LUTZE DRIVEFLEX cables meet electrical challenges in servo and variable frequency drive (VFD) applications. These cables feature thermoset insulation that copes with power disruptions in VFD applications.

Product Information

Standard Information

• Brand: LUTZE
• Manufacturer Part Number: A2161604

Technical Specifications

• AWG: AWG 16
• Cable Type: VFD/Drive Cable
• Series: DRIVEFLEX
• Jacket Material: PVC
• Number of Conductors: 4
• Conductor: Cu-Wire Tin-Plated
• Jacket Characteristics: Oil Resistant
• Manufacturer: Lutze
• Bending Radius: 6 Cable OD
• Component: VFD Cable
• Jacket Color: Black
• Conductor Insulation: RHW-2
• Rated Voltage (Cable): 1000 Volt
• Conductor Size: 16 AWG
• Conductor Count: 4
• Conductor Type: Stranded
• Conductor Material: Tinned Copper
• Insulation: XLPE - Cross-Linked Polyethylene
• Shield: Shielded
• Omni Cable item: LUA2161604
• Lutze item: A2161604
