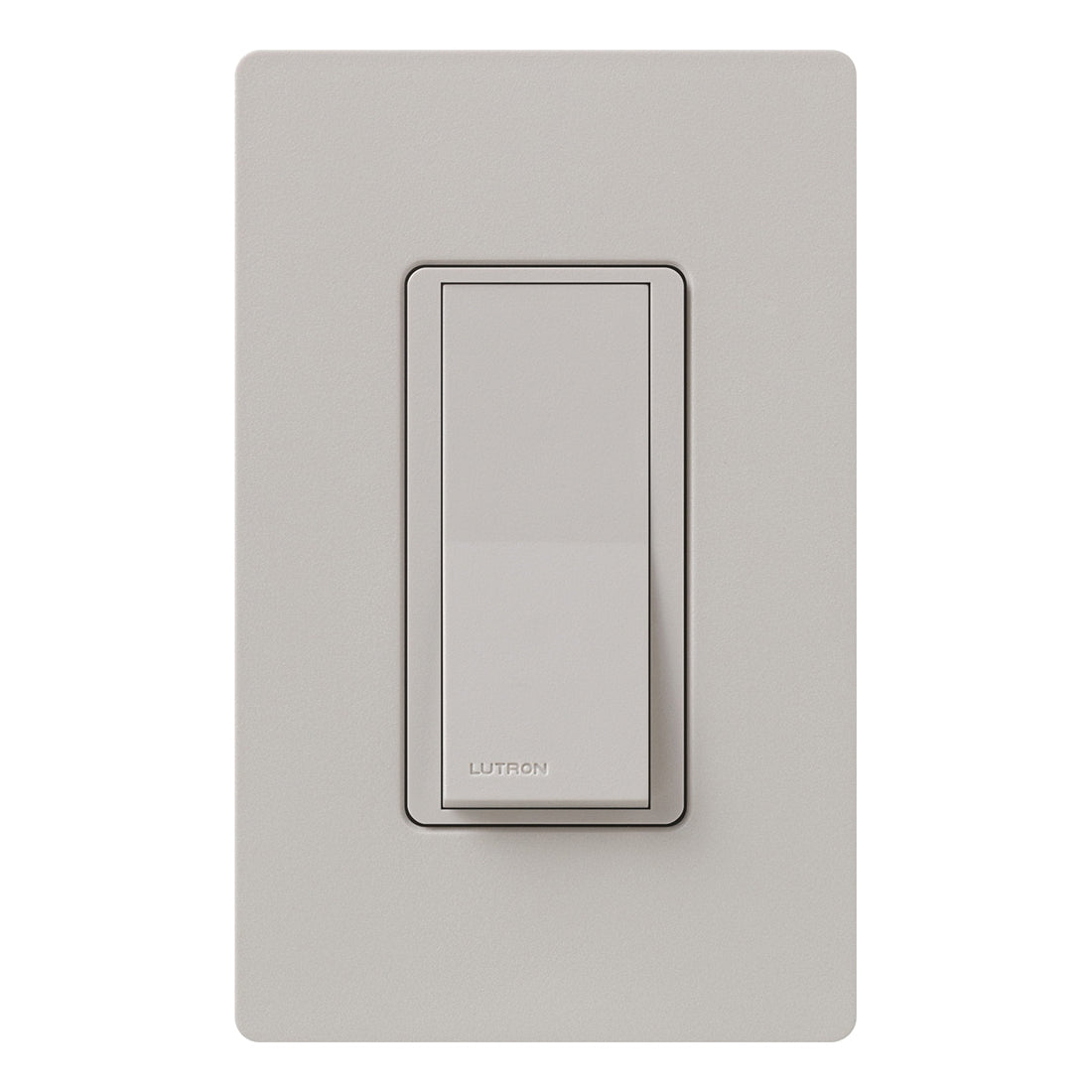

Lutron SC-3PS-TP 3-Way Switch 120/277 VAC 15 A

Product Description

The Lutron SC-3PS-TP is a 3-way paddle switch designed for use in lighting applications. This switch operates at 120/277 VAC and has a maximum load rating of 15 amps. It features a paddle actuator for easy operation and supports both side and rear push-in wired connections.

• Designed for general purpose switching of all sources and motor loads.
• UL listed and CSA certified for safety.
• Easy installation in standard wall openings.

Product Highlights

The SC-3PS-TP is suitable for home and commercial use where reliable switching is needed. Its simple design integrates well with existing decor.

Product Information

Standard Information

• Manufacturer: Lutron Electronics
• Product SKU: 2112024

Technical Specifications

• Actuator: Paddle
• Color: Taupe
• Connection: Side and Rear Push-In Wired
• Dimensions: 4.69 inches H x 2.94 inches W x 1.31 inches D
• Electrical Ratings: 120/277 VAC, 15 A
• Environmental Conditions: 0 to 40 degrees C Operating Temperature, 0 to 90% Non-Condensing Relative Humidity
• Frequency Rating: 60 Hz
• Material: Metal/Plastic
• Mounting: Wall
• Number of Poles: 1
• Operational Mode: 3-Way
• Switch Function: ON/OFF
• Standards/Approvals: UL Listed, CSA Certified, NOM Certified
