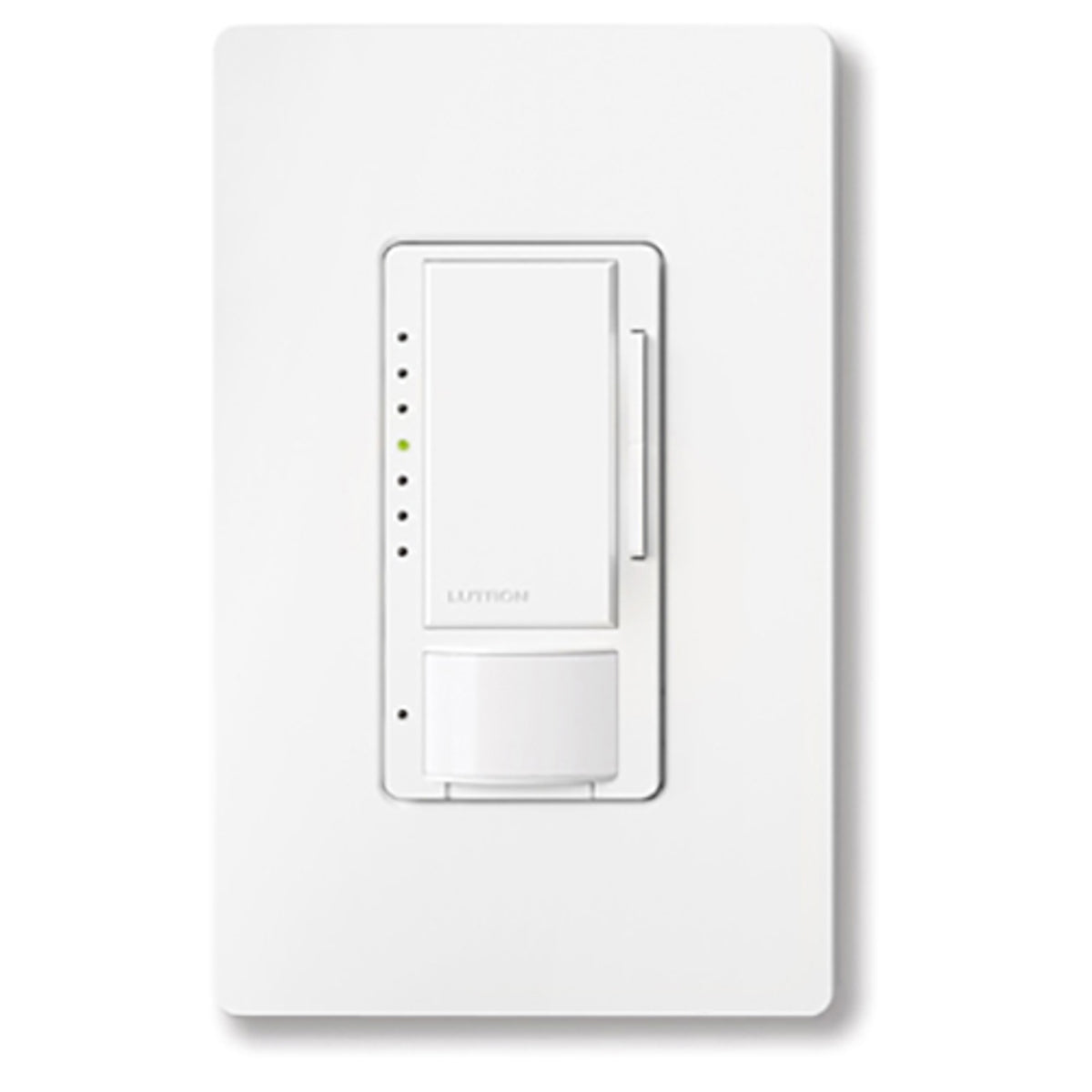

Lutron MSCL-OP153M-WH Maestro Occupancy Sensor Dimmer 120VAC 600W Replacement MPN

Product Description

The Lutron MSCL-OP153M-WH is a maestro occupancy sensor dimmer designed for effective lighting control. This device operates at one hundred twenty volts alternating current and supports a maximum load of six hundred watts. It combines occupancy sensing with dimming capabilities, making it ideal for various indoor lighting applications.

• Passive infrared sensors detect heat from moving occupants.
• Controls multiple load types including CFL, LED, incandescent, and halogen.
• Adjustable timeout settings enhance energy efficiency.

Product Highlights

This model features a sensing range providing major motion coverage of nine hundred square feet and minor motion coverage of four hundred square feet. It supports adjustable settings for light levels and can be configured for automatic on/off operations, enhancing user convenience and energy savings.

Product Information

Standard Information

• Manufacturer: Lutron Electronics
• Application: Indoor lighting control

Technical Specifications

• Catalog Number: MSCL-OP153M-WH
• Supply Voltage: 120 VAC
• Load Rating: 600 W (CFL/LED), 600 W (Incandescent/Halogen)
• Mounting Type: Wall
• Sensing Range: 900 ft² (major), 400 ft² (minor)
• Temperature Rating: 32 to 104 F (0 to 40 C)
• Enclosure Type: NEMA WD7
