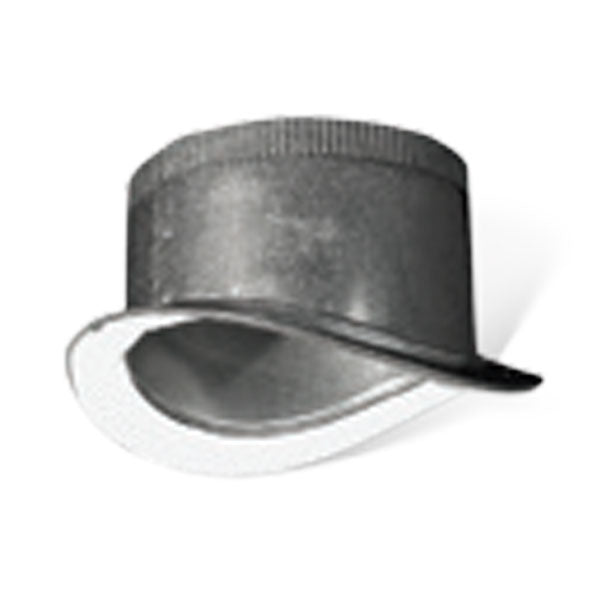

Lukjan TA0906 6 Inch Stick-on Round Saddle Collar

Product Description

The LUKJAN TA0906 is a 6-inch stick-on round saddle collar designed for use in sheet metal ductwork installations. This fitting allows technicians to add a branch takeoff to an existing round or flat-oval duct surface without cutting a full hole first. The self-adhesive mounting flange bonds to the duct surface to hold the collar in position during layout and fastening, speeding up branch connection work on residential and light commercial air distribution systems. HVAC sheet metal workers and duct installers are the primary trade using this fitting.

The TA0906 saddle collar is suited for residential forced-air systems and light commercial HVAC ductwork where a 6-inch round branch tap is required. It is commonly installed when adding supply or return branch runs to a main trunk line, making it a practical fitting for new construction duct rough-in as well as retrofit and remodel work where existing duct runs need additional branch outlets.

Key Features

• 6-inch round saddle collar for branch duct takeoffs on main trunk lines
• Stick-on adhesive flange holds collar in position before final fastening
• Round saddle design seats flush against curved or flat duct surfaces
• Speeds up branch layout by eliminating the need for separate positioning hardware
• Suitable for new construction duct rough-in and retrofit applications

Compatibility

Designed as an OEM-style sheet metal fitting compatible with standard 6-inch round duct branch connections in residential and light commercial forced-air HVAC systems.

Installation Notes

Installation is typically performed by licensed sheet metal workers or HVAC technicians following local mechanical codes and SMACNA duct construction standards. Power down the air handling system before cutting into any existing ductwork. The saddle collar should be secured with sheet metal screws after the adhesive is seated, and all joints should be sealed with UL 181-rated mastic or foil tape per applicable code requirements.

Technical Specifications

• Collar Diameter: 6 inches
• Collar Type: Round Saddle
• Mounting Style: Stick-On Adhesive Flange

Standard Information

• Brand: LUKJAN
• Manufacturer Part Number: TA0906
