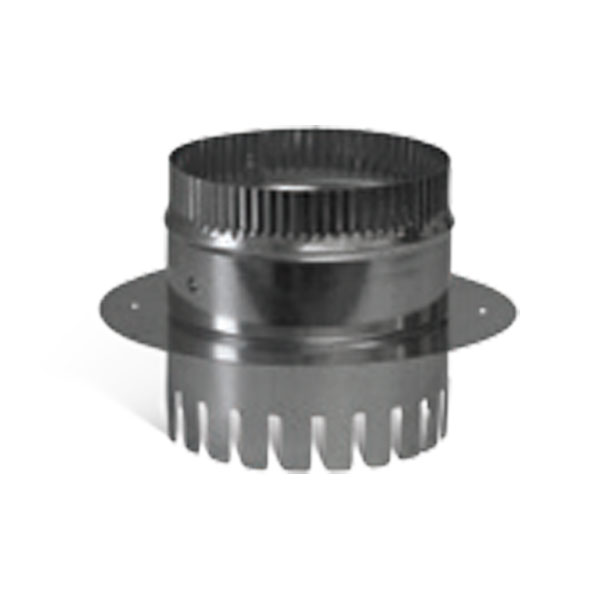

Lukjan dx7618 Ductboard Collar 18x6 Inch

Product Description

The LUKJAN dx7618 is an 18-inch ductboard collar with a 6-inch length, designed to create a secure and precise transition between ductboard panels and round duct runs. Compatible with both 1-inch and 1.5-inch ductboard, this collar maintains proper airflow routing and system integrity at connection points. It is a standard component in ductboard fabrication and is installed by HVAC technicians working on residential and commercial forced-air systems. The collar supports clean, stable connections that reduce air leakage and help maintain system efficiency.

This collar is used in ductboard takeoff and fitting applications where a round duct must connect to a flat ductboard panel. It fits both 1-inch and 1.5-inch ductboard thicknesses, making it versatile across common ductboard systems used in light commercial and residential HVAC installations. Typical applications include supply air distribution in forced-air systems where ductboard is used as the primary duct material.

Key Features

• 18-inch diameter collar sized for standard round duct connections
• 6-inch collar length provides sufficient engagement for a secure fit
• Compatible with both 1-inch and 1.5-inch ductboard panels
• Designed for ductboard takeoff and fitting applications in HVAC systems
• Supports consistent airflow routing and reduced leakage at transition points

Compatibility

Designed for use with 1-inch and 1.5-inch ductboard panels in residential and light commercial HVAC ductboard installations.

Installation Notes

Installation is performed by licensed HVAC technicians. Power down the air handling system before beginning any ductwork modifications. The collar should be inserted into the ductboard opening and secured according to standard ductboard fabrication practices, including appropriate mastic or tape sealing at all joints per applicable mechanical codes. Do not operate the system with unsecured or unsealed collar connections.

Technical Specifications

• Collar Diameter: 18 inches
• Collar Length: 6 inches
• Compatible Ductboard Thickness: 1 inch and 1.5 inches
• Product Category: Ductboard Takeoffs and Fittings

Standard Information

• Brand: LUKJAN
• Manufacturer Part Number: dx7618
