Ls Electric 83661834001 Mounting Unit MT-12 Overload Relay

Product Description

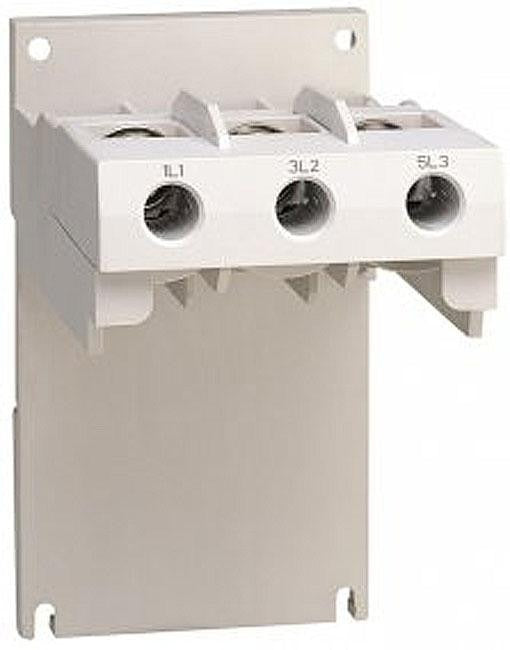

The LS ELECTRIC 83661834001 is a mounting unit with screw terminals designed for use with the MT-12 overload relay. This component provides a secure, screw-terminal connection point that allows the overload relay to be mounted to a panel or DIN-rail assembly. It is part of the MT Series line of motor protection accessories and is installed by licensed electricians and industrial maintenance technicians working on motor control circuits. The screw-terminal design supports reliable field wiring without the need for specialty tooling, making it a straightforward replacement or addition to existing relay mounting configurations.

This mounting unit is suited for motor control panel builds and industrial electrical installations where MT-12 overload relays are specified. It is used in both new construction and retrofit applications across commercial and industrial environments. The UZ designation identifies it as the specific mounting accessory compatible with the MT-12 relay footprint within the MT Series lineup. Electricians integrating or replacing MT-12 overload relays will find this unit provides a direct, OEM-style fit.

Key Features

• Screw-terminal connection design for secure field wiring
• Designed specifically for the MT-12 overload relay
• Part of the MT Series motor protection accessory line
• Compact form factor at 0.25 pounds for easy handling
• Covered by a 2-year manufacturer warranty

Compatibility

Designed for use with the MT-12 overload relay in the LS ELECTRIC MT Series. Alternate part number: MOUNTING UNIT,UZ-12,MT-12.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize and lock out the motor control circuit before beginning any work on the relay or mounting unit. Verify all screw-terminal connections are fully seated and torqued per the relay manufacturer documentation before restoring power. Do not modify the mounting unit or use it with relay models outside the MT-12 specification.
