Ls Electric 64180002 Door Installation Kit 2m G100

Product Description

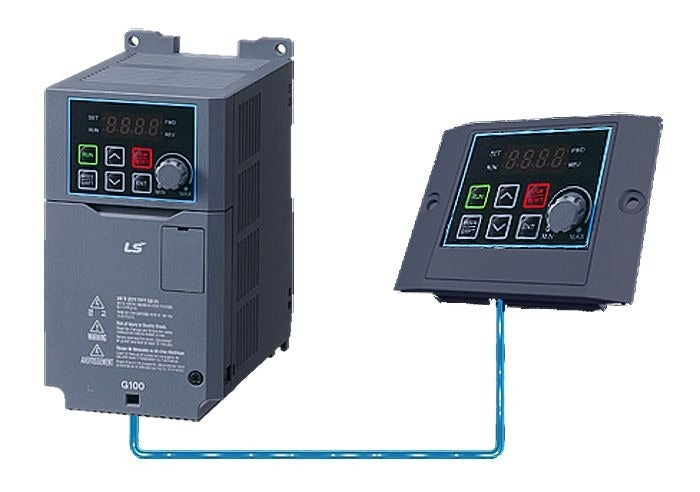

The LS ELECTRIC 64180002 is a door installation kit designed for use with the G100 series variable frequency drive. The kit provides the hardware and cabling needed to mount the drive keypad and interface components at a panel door, allowing the operator to access drive controls without opening the enclosure. Contents include a frame kit, a 7-segment keypad, and a 2-meter connection cable. This type of accessory is typically installed by industrial electricians and automation technicians during panel build-out or drive commissioning.

This kit is intended for applications where the G100 drive is mounted inside an electrical enclosure and remote door-mount access to the keypad is required. The 2-meter cable length accommodates standard panel depths and door swing configurations. It is suited for both new installations and retrofit projects where a door-mount keypad arrangement is being added to an existing G100 drive installation.

Key Features

• Includes frame kit, 7-segment keypad, and 2-meter interface cable as a complete assembly
• 2-meter cable length supports standard enclosure door-mount configurations
• Designed for door-mount installation, keeping drive controls accessible without opening the enclosure
• 7-segment keypad provides parameter access and drive control at the panel face

Compatibility

Designed for use with the LS ELECTRIC G100 series variable frequency drive as a door-mount keypad installation accessory.

Installation Notes

Installation should be performed by a qualified electrician familiar with variable frequency drive wiring and panel assembly practices. Disconnect and lock out power to the drive and enclosure before beginning any installation work. Secure the frame kit to the enclosure door per the panel manufacturer guidelines, then route the cable to the drive before making connections. Follow applicable NEC requirements for enclosure wiring and drive accessory installation.
