Ls Electric 64170007 Cable Extension Drive to Keypad 1m

Product Description

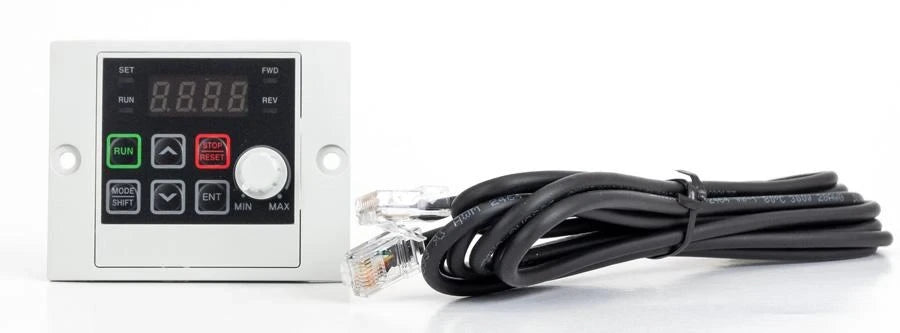

The LS ELECTRIC 64170007 is a 1-meter cable extension designed to connect a variable frequency drive to a remote keypad, allowing the keypad to be mounted at a distance from the drive unit. The kit includes the extension cable, a frame kit, and the keypad, providing everything needed to install the operator interface on a panel door or enclosure surface. This accessory is used by electricians and drive technicians who need remote operator access without direct line-of-sight to the drive itself. It is part of the M100 Series accessory lineup from LS ELECTRIC.

This cable extension kit is intended for use with LS ELECTRIC M100 Series variable frequency drives. A typical installation scenario involves mounting the keypad on the door of an electrical enclosure or control panel, running the extension cable from the keypad frame to the drive, and securing the keypad in the provided frame. This eliminates the need to open the enclosure for routine parameter adjustments or drive monitoring, which is common in industrial and commercial motor control applications.

Key Features

• 1-meter cable length for remote keypad positioning
• Includes frame kit and keypad for a complete installation package
• Designed for door-mount or panel-mount keypad installation
• Compatible with LS ELECTRIC M100 Series VFDs
• 2-year manufacturer warranty
• Alternate part number: A1MT-M100

Compatibility

Designed for use with LS ELECTRIC M100 Series variable frequency drives. Alternate part number reference: INV,REMOTE 1M (LSLV-M100), A1MT-M100.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC guidelines and the drive manufacturer's wiring instructions. De-energize the VFD and verify that stored capacitor charge has dissipated before connecting or disconnecting any cables. Route the extension cable away from high-voltage conductors where possible to minimize interference. Secure the keypad frame to the enclosure door before final cable connection.
