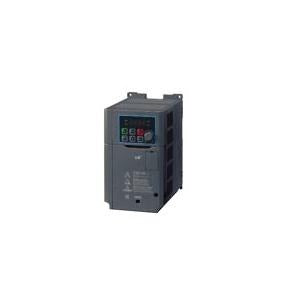

Ls Electric 6041002400 Ac Drive 3HP 460V Three Phase

Product Description

The LS ELECTRIC 6041002400 is a variable frequency drive (VFD) rated for 3 horsepower at 460 volts, three phase. It accepts input voltages from 380 to 480 VAC and delivers heavy-duty output at 5.5 amps continuous with 150 percent overload capacity for 60 seconds. The drive ships with a built-in 7-segment keypad for local parameter programming and includes an integrated EMI/RFI filter to reduce line noise. The IP20/UL Type 1 enclosure suits indoor panel or wall-mount installations. HVAC technicians, industrial electricians, and automation contractors install this class of drive on motors requiring adjustable speed control.

This drive is suited for commercial and light industrial applications where three-phase motor speed control is required. Common installation scenarios include fan and pump control in HVAC air handling systems, conveyor drives, and other variable-torque loads. The Frame 2 form factor fits standard enclosure cutouts used in motor control centers and drive panels. Remote cable control type allows integration with external control systems or building automation inputs.

Key Features

• 3 HP heavy-duty rating with 150 percent overload for 60 seconds at 5.5 amps output
• Input voltage range of 380 to 480 VAC accommodates standard three-phase service
• Built-in 7-segment keypad enables on-drive programming without external tools
• Integrated EMI/RFI filter reduces conducted interference on the supply line
• IP20/UL Type 1 enclosure rated for indoor panel installations
• Remote cable control type supports integration with external control wiring

Compatibility

Designed as an OEM-style three-phase VFD replacement for residential and commercial motor control applications requiring a Frame 2 drive at 3 HP and 460 volt input.

Installation Notes

Installation must be performed by a licensed electrician in accordance with NEC Article 430 covering motor circuits and controllers. Disconnect and lock out all power before wiring input or output terminals. Do not connect the drive output directly to power factor correction capacitors or output contactors that switch under load without appropriate drive configuration. Mount the drive vertically in a clean, dry enclosure with adequate clearance above and below for airflow as required by the manufacturer.
