Ls Electric 1323000800 Overload Relays 3.3A

Product Description

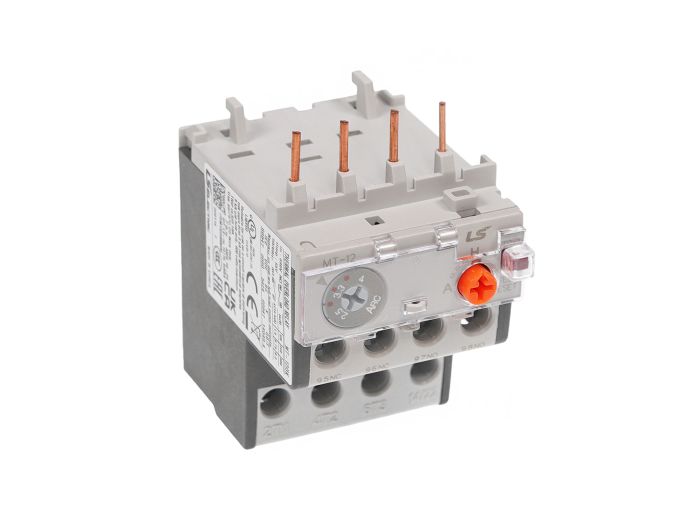

The LS Electric 1323000800 is a thermal overload relay with a current rating of 2.5-4 A. This differential type relay is part of the LS Electric Overload Relays series and is designed for 12AF frames. It features both automatic and manual reset options and utilizes screw terminals for connection.

• Thermal overload relay with a 3.3A rating.
• Current range of 2.5-4A.
• Offers both automatic and manual reset options.

Product Highlights

Thermal overload relay with 2.5-4A current range, automatic/manual reset, and screw terminals.

Product Information

Standard Information

• Brand: LS Electric
• Manufacturer Part Number: 1323000800

Technical Specifications

• Manufacturer Part Number: 1323000800
• Manufacturer: LS Electric
• Family Series: LS Electric Overload Relays
• Description: Thermal Overload Relay 3.3A, Current Range 2.5_4A, 12AF Frame, Class 10A, Differential Type, SCREW
• Type: Thermal
• Current Rating: 2.5-4 A
• Trip Class: Class 10A
• Reset Type: Automatic, Manual
• Connection Type: Screw Terminals
• Approvals: UL
