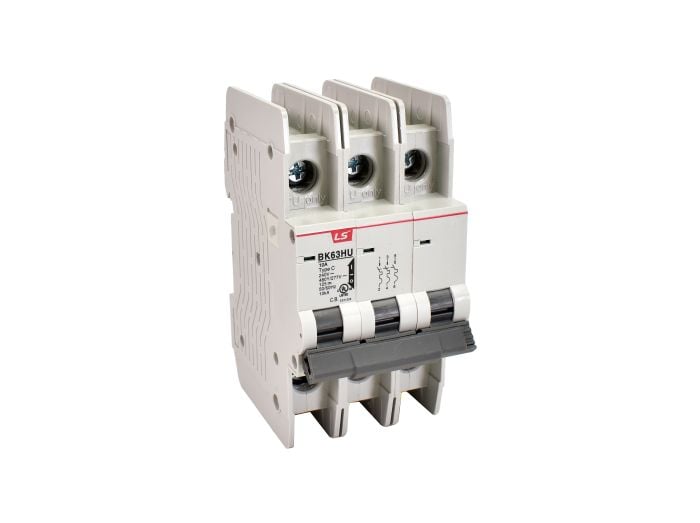

Ls Electric 0628039863 Circuit Breakers, MCB Series 10A

Product Description

The LS Electric 0628039863 is a miniature circuit breaker from the MCB series. This UL489 certified breaker features 3 poles, a C curve, and a 10A current rating with a 10kA interrupt capacity. It is designed for 480Y/277VAC applications and utilizes fixed thermal/magnetic trip unit.

• 3 Poles
• C Curve
• 10kA Interrupt Capacity

Product Highlights

Miniature circuit breaker with UL489 certification, suitable for various electrical protection applications.

Product Information

Standard Information

• Brand: LS Electric
• Manufacturer Part Number: 0628039863

Technical Specifications

• Manufacturer Part Number: BK63HU-3P-C10A-10kA-480Y/277VAC-UL489
• Manufacturer: LS Electric
• Product Series: MCB
• Family Series: LS Electric Circuit Breakers, MCB Series
• Poles: 3
• Current Rating: 10 A
• Max Voltage: 480/277 VAC
• Trip Curve: C
• Trip Unit: Fixed Thermal / Fixed Magnetic
• Mounting: DIN Rail
• Neutral Pole: No
• GFCI: No
• 100% Rated: No
• Terminal Type: Screw
• Auxiliary Switch: Optional
• Shunt Trip: Optional
• Undervoltage Release: Optional
• Alarm Switch: Optional
• UL Standard: 489
• Approvals: UL
• Comments: BK63HU 3P C10A 10kA 480Y/277VAC UL489
• Brand: LS Electric Co.
• Catalog #: 0628039863
