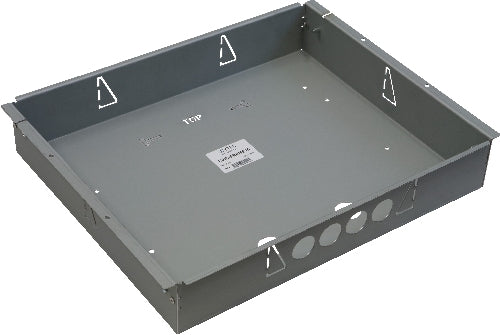

Loytec LVIS-FRAME15 Mounting Frame for 15in L-VIS Panels

Product Description

The LOYTEC LVIS-FRAME15 is a mounting frame designed for 15in L-VIS panels, ideally suited for building automation applications in BACnet, LonMark, and Modbus networks. These touch panels visualize building systems and can be used as room operator panels. The user screens are fully customizable and easy to navigate.

• High resolution IPS touch display with dimmable backlight
• Flush-mounting in combination with the mounting frame
• Supports BACnet/IP, BACnet/SC and BACnet MS/TP

Product Highlights

The LVIS impresses with its timeless design and user-friendly concept, allowing mounting in almost any location.

Product Information

Standard Information

• Brand: LOYTEC
• Manufacturer Part Number: LVIS-FRAME15

Technical Specifications

• Power Supply: 24 VDC
• Type: Mounting Bracket
• Display: No
• Storage Temperature Range: -40 to 158 °F (-40 to 70 °C)
• Application: BAS
• Display Resolution: 7”: IPS, 1024 x 600,16.7 million colors, 500 cd/m²; 12”: IPS, 1024 x 768, 16.7 million colors, 700 cd/m²; 15”: IPS, 1024 x 768, 16.7 million colors, 350 cd/m²
• Remote Network Interface: 1 RNI with 2 MNI devices
• Real Time Clock: Powered by rechargeable capacitor, 10-day power reserve
• Operating Conditions: 50 °F to 104 °F, 10 °C to 40 °C, 10-90% RH, noncondensing
• Storage Conditions: -4 °F to 158 °F, -20 °C to +70 °C
• Degree of Protection: Front: IP54 / back: IP10
• Tools: LPAD/L-VIS/L-WEB Configurator, L-STUDIO
• Programming: Node.js, Node-RED
