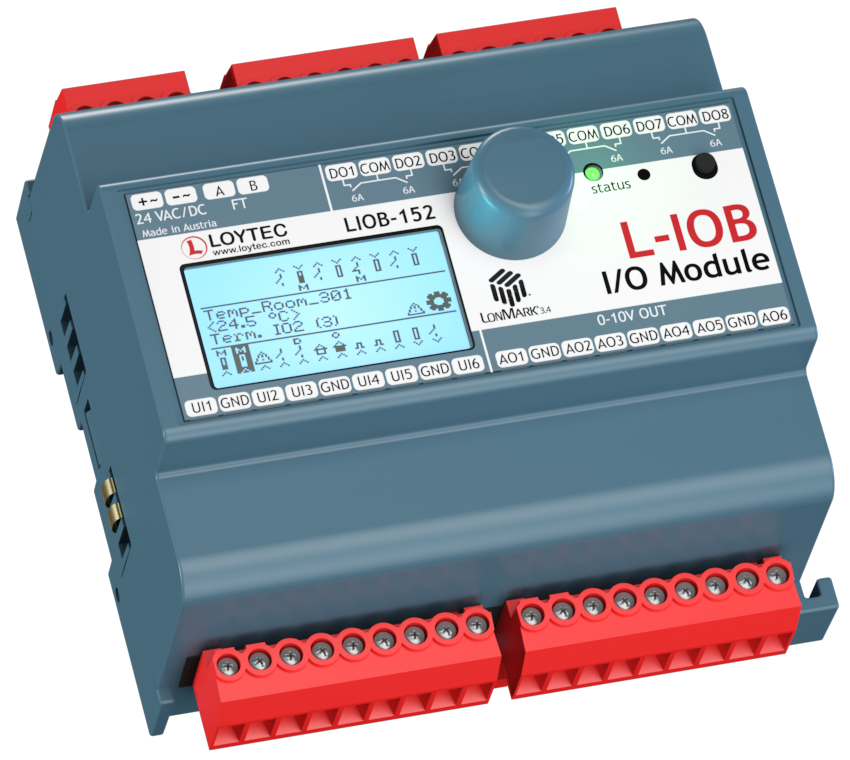

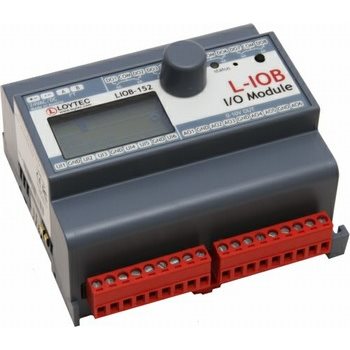

Loytec LIOB-152 Lon I/O Module 6Ui 6Ao 8Do

Product Description

The LOYTEC LIOB-152 is a LON I/O Module with 6 universal inputs, 6 analog outputs, and 8 digital outputs. It supports LonMark TP/FT-10 and features physical inputs and outputs. This module is designed for use in LonMark (TP/FT-10 and IP-852) and BACnet Networks (BACnet/IP).

• Physical Inputs and Outputs
• Stackable I/O Modules supporting LIOB-Connect
• Models available for LonMark (TP/FT-10 and IP-852) and BACnet Networks (BACnet/IP)

Product Highlights

The LIOB-152 module offers versatile I/O options for LON networks, ideal for building automation and control applications.

Product Information

Standard Information

• Brand: LOYTEC
• Manufacturer Part Number: LIOB-152

Technical Specifications

• Compatibility: Lonworks
• Relay Outputs: 8
• Analog Outputs: 6
• Universal Inputs: 6
• Communication Protocol: LON
• Power Supply: 24 VAC,24 VDC
• Type: Module
• Number of Ports: 20
• Supply Voltage: 24 VAC ± 10 % # 2.7 VA, 24 VDC @ 113 mA
• Operating Temperature: 32° to 122°F (0° to 50°C)
• Operating Humidity: 10-90% RH @ 122°F (50°C) non-condensing
• Approvals: CE, FCC, LonMark 3.4. RoHs
• Integrated HMI: Yes
