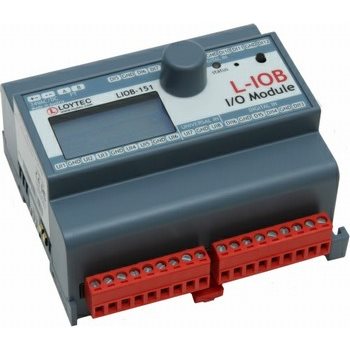

Loytec LIOB-151 Lon I/O Module 8UI 12 DI

Product Description

The LOYTEC LIOB-151 is a Lon I/O Module with 8 universal inputs (UI) and 12 digital inputs (DI). It provides expansion to LOYTEC devices through a twisted-pair cable. The module features a 128x64 display with backlight for device and data point information and is LonMark certified.

• Features 8 Universal Inputs (UI)
• Equipped with 12 Digital Inputs (DI)
• Connected through a twisted-pair cable

Product Highlights

The LIOB-151 I/O module enhances LOYTEC devices with physical inputs and outputs, featuring a display and jog dial for local operation.

Product Information

Standard Information

• Brand: LOYTEC
• Manufacturer Part Number: LIOB-151
• Country of Origin: South Korea

Technical Specifications

• Digital Inputs: 12
• Universal Inputs: 8
• Communication Protocol: LON
• Compatibility: Lonworks
• Integrated HMI: Yes
• Integrated Press Sensor: No
• Power Supply: 24 VAC,24 VDC
• Type: Module
• Number of Ports: 20
• Supply Voltage: 24 VAC 10 % # 2.7 VA, 24 VDC @ 113 mA
• Operating Temperature: 32 to 122 F (0 to 50 C)
• Operating Humidity: 10-90% RH @ 122 F (50 C) non-condensing
• Approvals: CE, FCC, LonMark 3.4. RoHs
• Brand: LOYTEC
• MPN: LIOB-151
• Country of Origin: South Korea
• Media channel: Free Topology - TP/FT10
• Certified: yes
