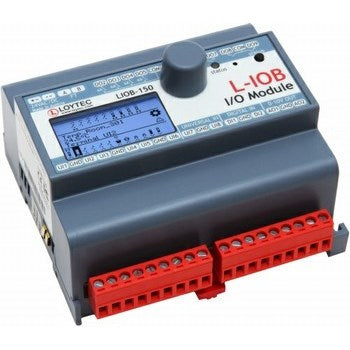

Loytec LIOB-150 LON I/O Module 8UI 2DI 2AO 8 DO

Product Description

The LOYTEC LIOB-150 is a LON I/O Module with 8 universal inputs, 2 digital inputs, 2 analog outputs, and 8 digital outputs. It provides expansion to LOYTEC devices with physical inputs and outputs and is connected through a twisted-pair cable to the L-INX Automation Server or L-ROC Controller. The LIOB FT connection corresponds to the LonMark TP/FT-10 channel specification.

• Physical Inputs and Outputs
• Models available for LonMark (TP/FT-10 and IP-852) and BACnet Networks (BACnet/IP)
• Local access to information about device status and data points

Product Highlights

The LIOB-150 module is LonMark certified and can be integrated as a standard CEA-709 node in a LonMark system.

Product Information

Standard Information

• Brand: LOYTEC
• Manufacturer Part Number: LIOB-150
• Country of Origin: Austria

Technical Specifications

• Communication Protocol: LON
• Universal Inputs: 8
• Digital Inputs: 2
• Analog Outputs: 2
• Digital Outputs: 8
• Integrated HMI: Yes
• Integrated Press Sensor: No
• Power Supply: 24 VAC,24 VDC
• Type: Module
• Number of Ports: 20
• Supply Voltage: 24 VAC 10 % # 2.7 VA, 24 VDC @ 113 mA
• Operating Temperature: 32 to 122 F (0 to 50 C)
• Operating Humidity: 10-90% RH @ 122 F (50 C) non-condensing
• Approvals: CE, FCC, LonMark 3.4. RoHs
• Media channel: Free Topology - TP/FT10
• Certified: yes
