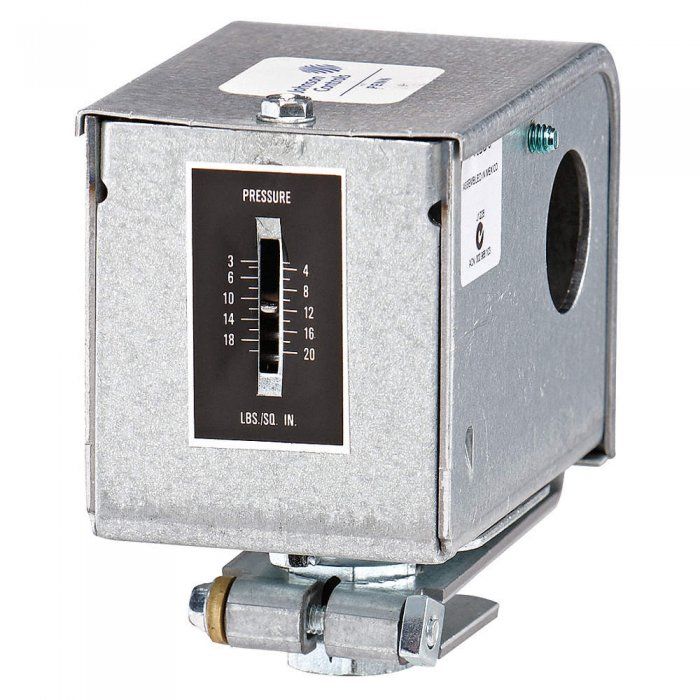

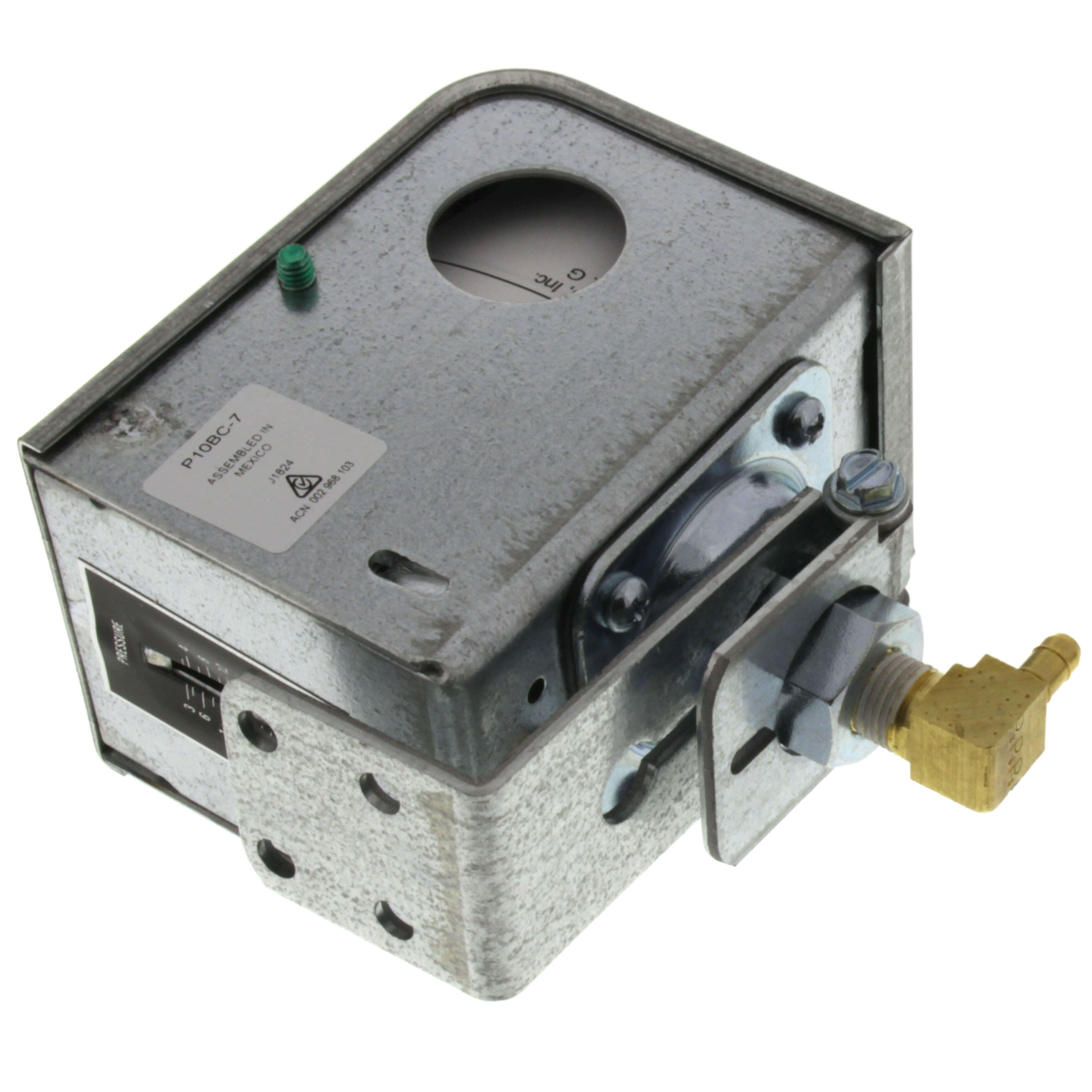

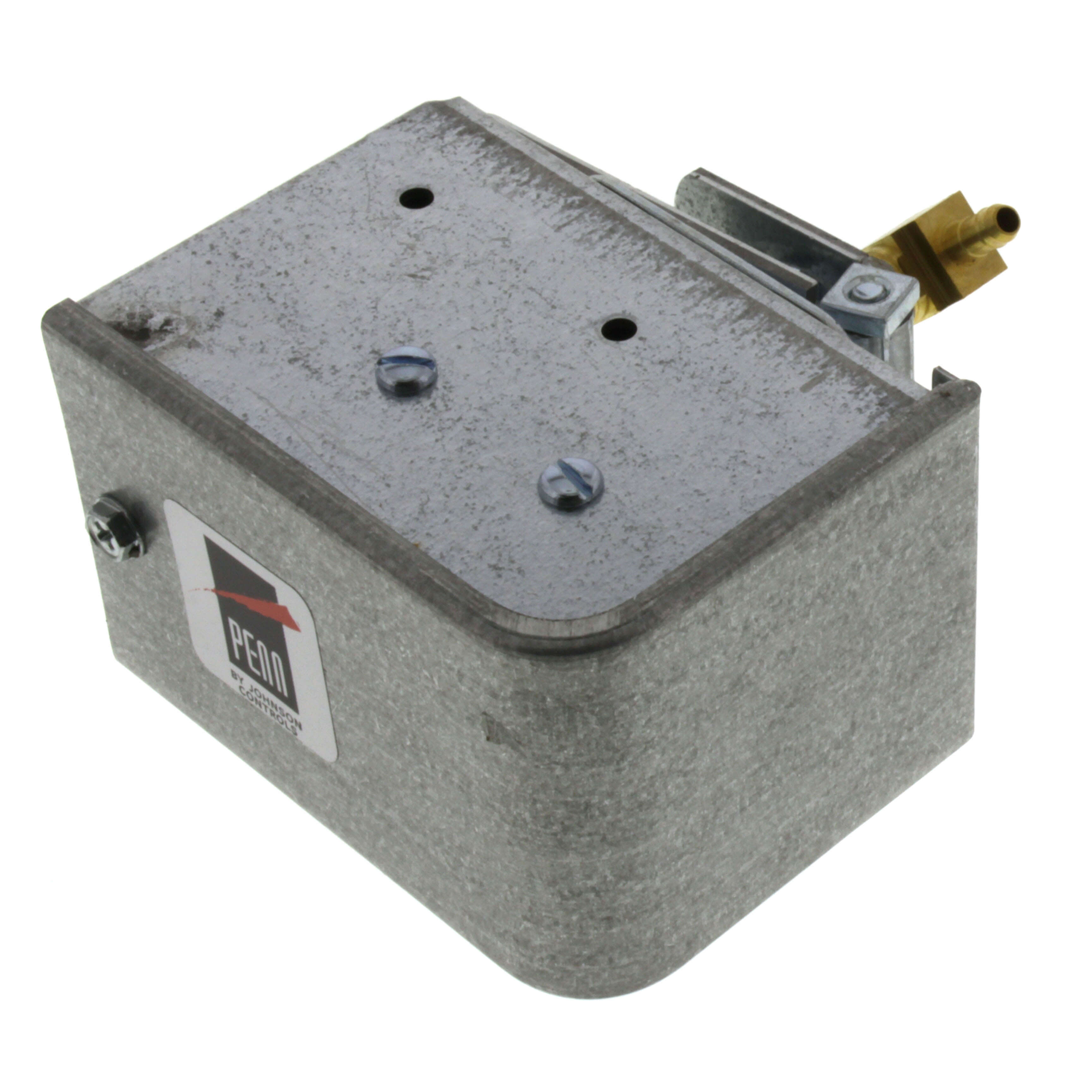

Johnson Controls P10BC-7C Pressure Control Single Stage SPDT Barbed Fitting 3-20 Pounds per Square Inch

Product Description

The Johnson Controls P10BC-7C is a pressure control designed for effective regulation in HVAC applications. This single stage SPDT low pressure control operates within a range of three to twenty pounds per square inch, suitable for various industrial uses. It features a barbed fitting for easy installation and connections.

• Operates in a pressure range of 3 to 20 PSI.
• SPDT configuration for versatile switching.
• Durable design for reliable performance in demanding conditions.

Product Highlights

This product is ideal for pneumatic systems and controls pumps or small air compressors, making it essential for HVAC professionals.

Product Information

Standard Information

• Brand: Johnson Controls
• Manufacturer Part Number: P10BC-7C

Technical Specifications

• Pressure Range: 3 to 20 PSI
• Switch Type: SPDT, Snap-Acting
• Connection Type: 1/8 Inch Barbed
• Operating Temperature: 140 degrees Fahrenheit
• Shipping Weight: 3 pounds
• Dimensions: Three and seven-eighths inches long x two and three thirty-seconds inches wide x three and three-sixteenths inches high
• Maximum Allowable Pressure: 150 PSI
• Approval Standards: CSA Certified, UL Listed
