Lovejoy SX185-6HUB RSB | Disc Coupling Hubs w/ Rough Stock Bore

Product Description

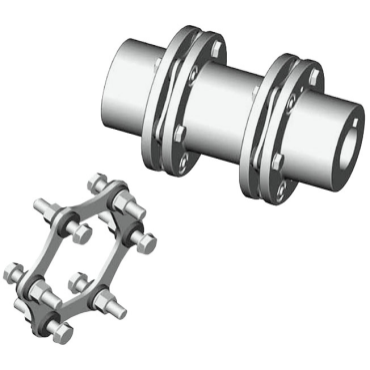

The Lovejoy SX185-6HUBRSB Disc Coupling Hub features a rough stock bore design for applications that require flexibility and durability. This coupling hub helps in connecting two shafts while accommodating misalignments effectively.

• Torque capacity up to 58,400 in lb.
• Compatible with standard hub sizes.
• Maximum RPM of 4,200.

Product Highlights

This Lovejoy hub is designed for high torque and reliability in various mechanical systems.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: SX185-6HUBRSB

Technical Specifications

• Torque: 29,200 in lb
• Distance Between Shaft Ends: 5 1/2 in
• Angular Misalignment [Max]: 1.5 degrees
• Coupling Size: 185-6
• Style: Unbored
• Series: SX-6
• Bore Dia. [Max]: 3.1300 in
• Hub Type: Standard
• Axial Misalignment: 0.146 in
• Hub Dia.: 4.41 in
• Keyway Size: No Keyway
• Outside Dia.: 7.28 in
• Torque [Max]: 58,400 in lb
• Insert Style: Unbored
• RPM [Max]: 4,200 rpm
• Material: AISI 1045
• Coupling Type: Disc Coupling Hubs
• Bore Type: Rough Stock Bore
• Overall Length: 11.8 in
• Length Through Bore: 3.15 in
• Rated Power @ 100 rpm: 46.3 hp
• Weight: 16.56 lb
• EAN or UPC: 697904914474
