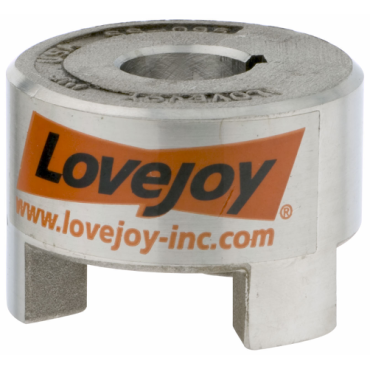

Lovejoy SS110X1HUB1/4 Stainless Steel Finished Bore Jaw Coupling Hub

Product Description

The Lovejoy SS110X1HUB1/4 is a stainless steel finished bore jaw coupling hub designed for reliable performance in various applications. This coupling hub features a one-inch bore and is suitable for use with standard L-line and AL-line products.

• Finished bore hubs are passivated against rust.
• Interchangeable with all hub sizes standard for the L-line and AL-line products.
• Compatible with inserts made from Buna-N, urethane, Hytrel, and bronze.

Product Highlights

This coupling hub provides strong construction and versatility for effective use in mechanically driving applications.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: SS110X1HUB1/4

Technical Specifications

• Length Through Bore: 1.68 inches
• Coupling Size: SS110
• Bore Type: Finished Bore
• Insert Style: Jaw Type
• Hub Diameter: 3.3125 inches
• Material: Stainless Steel
• Bore Diameter: 1 inch
• Keyway Size: 1/4 x 1/8 inches
• Coupling Type: Jaw
• Max RPM: 5000
• Lock Type: Setscrew
• Outside Diameter: 3.32 inches
