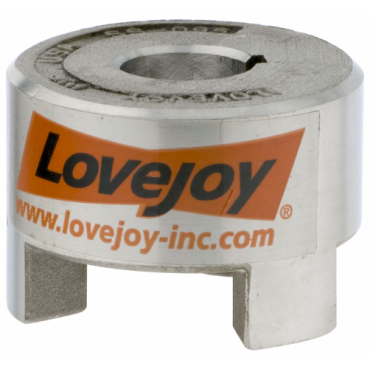

Lovejoy SS100X1 1/4HUB1/4 | Stainless Steel Finished Bore Jaw Coupling Hub

Product Description

The Lovejoy SS100X1 1/4HUB1/4 is a stainless steel finished bore jaw coupling hub designed for connecting shafts in machinery. This product enhances transmission efficiency and reliability in various applications.

• Passivated against rust for longevity
• Compatible with standard L-line and AL-line hub sizes
• Allows for inserts in multiple materials including Buna-N, urethane, Hytrel, and bronze

Product Highlights

The finished bore design simplifies installation while ensuring strong engagement between connected shafts.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: SS100X1 1/4HUB1/4

Technical Specifications

• Set Screw Size: 5/16-18
• Outside Diameter: 2.54 inches
• Length Through Bore: 1.38 inches
• Coupling Size: SS100
• Bore Diameter: 1.250 inches - 1 1/4 inches
• RPM [Max]: 7000 rpm
• Hub Diameter: 2.54 inches
• Keyway Size: 1/4 x 1/8
• Approximate Bore: 2.09 inches
• Material: Stainless Steel
• Bore Type: Finished Bore
• Bore Diameter [Min]: 0.4370 inches
• Insert Style: Jaw Type
• Bore Diameter [Max]: 1 3/8 inches
• Lock Type: Setscrew
• Coupling Type: Jaw
• Depth: 2.09 inches
• Weight: 1.6 lbs
• EAN or UPC: 685144700216
