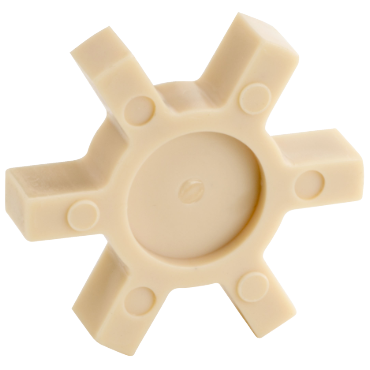

Lovejoy L050SPIDERHYT L Type Coupling Spider

Product Description

The Lovejoy L050SPIDERHYT is an L Type Coupling Spider designed for robust performance in various applications. It is suited for continuous load conditions and high torque operations. The coupling spider is constructed using Hytrel material for excellent durability.

• Compatible with size 050 jaw couplings.
• High temperature resistance up to two hundred fifty degrees Fahrenheit.
• Offers excellent oil and chemical resistance.

Product Highlights

This spider insert is essential for applications dealing with high torque and temperature. Its solid insert style ensures stable performance for demanding jobs.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: L050SPIDERHYT

Technical Specifications

• Outside Diameter: 1.0800 inches
• HP @ RPM: 1.43 hp @ 800 rpm
• Maximum RPM: 18,000 rpm
• Temperature Range (Min): -60 degrees Fahrenheit
• Maximum Torque Rating: 50.0 ft lb
• Torque: 5.6 N-m
• Insert Style: Solid
• Material: Hytrel
• Maximum Temperature: 250 degrees Fahrenheit
• Number of Legs: 6
• Coupling Size: L050
• Coupling Type: Jaw
• Torque Rating: 50.0 in lb
• Weight: 0.09 lb
• UPC: 685144253071
