LOVEJOY INC 68514436052 5/8 4J S-FLEX COUP FLANGE

Product Description

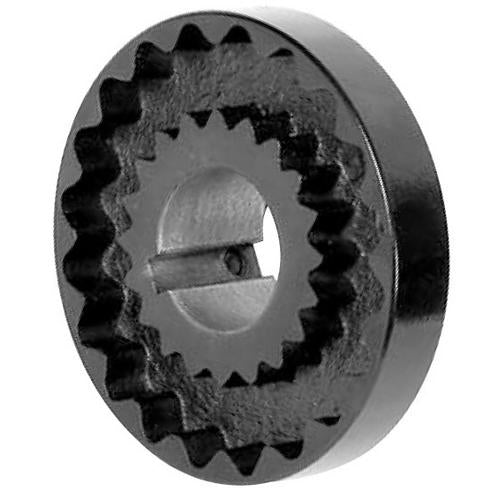

The LOVEJOY INC 68514436052 5/8 4J S-FLEX Coupling Flange is designed for power transmission applications. This coupling flange is a Type J Finished Bore with a bore diameter of five eighths inches. It features a hub diameter of one point sixty-three inches and a hub length of zero point forty-four inches. The construction is made from die cast zinc for durability.

• Compatible with EPDM or neoprene sleeves.
• Includes a keyway and two setscrews for secure installation.
• Maximum speed rating of seven thousand six hundred RPM.

Product Highlights

This coupling flange is suitable for a variety of machinery and applications requiring reliable connection and alignment. Its zinc alloy construction ensures strength and longevity.

Product Information

Standard Information

• Manufacturer: LOVEJOY INC
• Type: Type J Finished Bore

Technical Specifications

• Bore Diameter: 5/8 in
• Coupling Size: 4J
• Hub Diameter: 1.63 in
• Hub Length: 0.44 in
• Keyway Size: 3/16 x 3/32 in
• Length Through Bore: 0.88 in
• Material: Die Cast Zinc
• Maximum Speed: 7600 rpm
• Screw Size: 1/4-20
