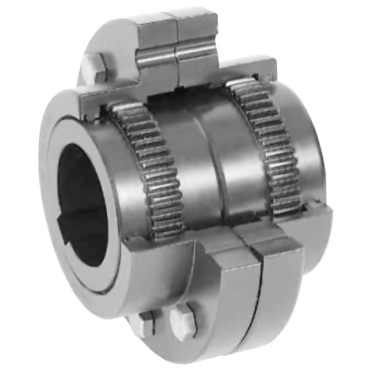

Lovejoy F4.5ERHUBRSB F Series Rigid Gear Coupling Hub

Product Description

The Lovejoy F4.5ERHUBRSB is a F Series rigid gear coupling hub designed for connecting two rigidly mounted shafts. This product supports a range of alignment issues while offering robust performance.

• Compensates for angular and parallel misalignment.
• Crowned hub teeth increase durability and reduce stress.
• Piloted design for improved high-speed operations.

Product Highlights

The gear coupling hub can handle a maximum bore diameter of seven and five-eighths inches and is suitable for use in various industrial applications.

Product Information

Standard Information

• Brand: Lovejoy
• Part Number: 102070462

Technical Specifications

• Hub Type: Rigid w/Center
• RPM [Max]: 2700 rpm
• Coupling Type: Gear
• Flange Type: Exposed Bolt
• Length Through Bore: 5.03 in
• Torque: 302400 in lb
• Material: AISI 1045
• Keyway Size: No Keyway
• HP @ RPM: 480 hp @ 100 rpm
• Bore Dia. [Max]: 7 5/8 in
• Hub Dia.: 10.38 in
• Color: Metallic
• Torque Rating: 302400 in lb
• Flange Diameter: 13.63 in
• Coupling Size: 4.5, 4 1/2
• Outside Dia.: 10.38 in
• Insert Style: Unbored
• RPM: 2700 rpm
• Speed (RPM): 2700
• Bore Type: Rough Stock Bore
• Weight: 129.0 LB
• EAN or UPC: 697904002256
