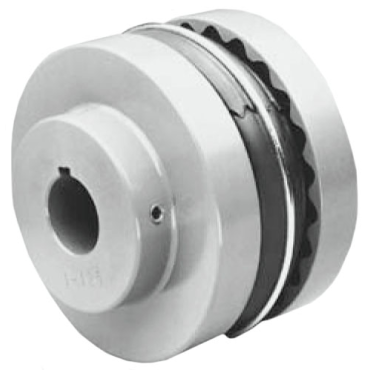

Lovejoy 7S24MM8 S-Flex Coupling Flange w/ Keyway

Product Description

The Lovejoy 7S24MM8 S-Flex Coupling Flange w/ Keyway is designed for efficient power transmission. Its durable construction and easy installation make it suitable for a variety of applications. The flange features internal teeth that engage securely, providing optimal connection and vibration dampening.

• Maintenance-free
• No lubrication required
• Controls shock and torsional flexibility

Product Highlights

Ideal for mechanical applications requiring flexibility and shock control.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: 7S24MM8

Technical Specifications

• Material: Cast Iron
• Hub Diameter: 71.37 mm
• Bore Size: 0.945 in - 24 mm
• Lock Type: Setscrew
• Set Screw: Yes
• Outside Diameter: 117.48 mm
• Bore Diameter (Max): 1 5/8 in
• Rated HP @ 1,200 RPM: 14 hp
• Max RPM: 5250 rpm
• Torque: 81.91 N-m
• Coupling Type: Coupling Flange
• Bushing Type: N/A
• Length Through Bore: 1.84375 in
• Rated HP @ 1,800 RPM: 21 hp
• Rated Power @ 100 RPM: 1 1/5 hp
• Coupling Size: 7S
• Rated HP @ 3,600 RPM: 41 hp
• Keyway Size: 8 x 3.3
• Bore Type: Finished Bore
• Hub Length: 11/16 in
• Color: Gray
• Set Screw Size: 3/8-16
• Inch/Metric: Metric
• Weight: 2.5 LB
• EAN or UPC: 685144512574
