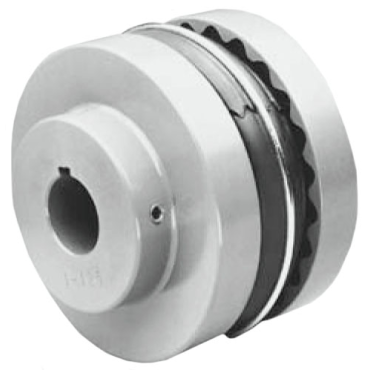

Lovejoy 6S19MM6 S-Flex Coupling Flange w/ Keyway

Product Description

The Lovejoy 6S19MM6 is a reliable S-Flex coupling flange that features a keyway for secure installation. This coupling is made from cast iron, which provides durability and resistance to wear. It is designed for easy installation and requires no lubrication, making it maintenance-free. The flange dampens vibrations and controls shock, contributing to the longevity and performance of your mechanical applications.

• Internal teeth for positive engagement
• Maintenance-free design
• Supports high RPM applications up to 6000

Product Highlights

This coupling flange is ideal for applications in industrial settings where flexibility and durability are essential. The torsionally soft design enhances performance while reducing stress on connected components.

Product Information

Standard Information

• Brand: Lovejoy
• Part Number: 6S19MM6

Technical Specifications

• Coupling Size: 6S
• Bore Size: 0.748 inches (19 mm)
• Rated Power @ 1,200 RPM: 8.5 HP
• Rated Power @ 1,800 RPM: 12.9 HP
• Rated Power @ 3,600 RPM: 25.7 HP
• Maximum RPM: 6000
• Torque: 50.84 N-m
• Material: Cast Iron
• Weight: 1.92 LB
