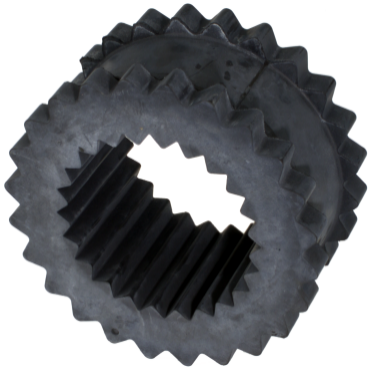

Lovejoy 6JESLEEVE 6JE Sleeve | S-Flex Endurance Shear Type Coupling Inserts

Product Description

The Lovejoy 6JESLEEVE is a size 6 JE coupling sleeve. It features S-Flex Endurance shear type coupling inserts made from EPDM. These inserts outperform previous designs, lasting at least three times longer. This sleeve is suitable for various applications and is interchangeable with industry standards.

• Size 6 coupling sleeve
• EPDM material for durability
• Interchangeable with standard designs

Product Highlights

This coupling sleeve is designed for effective power transmission in mechanical systems. It efficiently handles high torque ratings and operates within a wide temperature range.

Product Information

Standard Information

• Availability: Ready To Ship
• Minimum Order Quantity: None

Technical Specifications

• Material: EPDM
• HP @ RPM: 12.9 hp @ 1800 rpm
• Torque Rating [Max]: 450.0 in lb
• Length: 0.880 in
• Temperature Range [Max]: 275 °F
• Outside Diameter: 3 3/4 in
• Coupling Size: 6
• Temperature Range [Min]: -30 °F
• Torsional Stiffness (Inch Pounds/Radian): 1718
• Sleeve Type: JE
• RPM [Max]: 6,000 rpm
• Insert Style: One Piece
• Weight: 0.36 LB
• EAN or UPC: 685144355690
