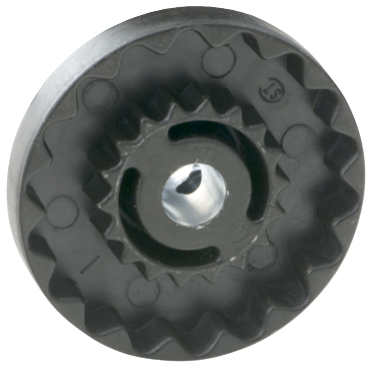

Lovejoy 6J5/8RSB S-Flex Coupling Flange - Reborable

Product Description

The Lovejoy 6J5/8RSB S-Flex Coupling Flange offers a reliable solution for connecting machinery in various applications. This coupling flange is designed for easy installation and provides efficient performance in dampening vibrations and controlling shock loads.

• Min. Bore: five eighths inches
• Max. Bore: one and three eighths inches
• Maintenance-free operation

Product Highlights

The product features internal teeth for secure engagement and is torsionally soft to reduce stresses on connected equipment.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: 6J5/8RSB

Technical Specifications

• Coupling Size: 6J
• Hub Length: 0.53 inches
• Color: Gray
• Bore Range [Min]: 0.625 inches
• Set Screw: With Setscrew
• Length Through Bore: 1.31 inches
• Torque: 450 in lb
• Bore Type: Rough Stock Bore
• Outside Diameter: 4 inches
• RPM [Max]: 6000 rpm
• Material: Cast Iron
• Bore Range [Max]: 1.375 inches
• Hub Diameter: 2.5 inches
• Bore Size: 0.625 inches - five eighths inches
• Weight: 2.34 lb
• EAN or UPC: 685144363510
