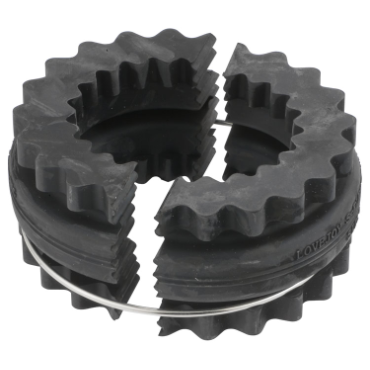

Lovejoy 6ESLEEVE 6 E Sleeve | S-Flex Endurance Shear Type Coupling Inserts

Product Description

The Lovejoy 6ESLEEVE is a size six Type E coupling sleeve designed for use with S-Flex Endurance shear type couplings. This EPDM insert offers enhanced durability and performance. The design has been updated to last three times longer than previous versions, making it suitable for demanding applications. The coupling sleeve is interchangeable with standard designs available in the market.

• Durable EPDM material
• High torque rating of 450 in lb
• Compatible with various flange sizes

Product Highlights

Utilizing advanced material technology, this coupling sleeve ensures longevity and reliable operation in high-performance settings.

Product Information

Standard Information

• Brand: Lovejoy
• Part Number: 100814522

Technical Specifications

• Color: Black
• Material: EPDM
• Outside Diameter: 3.75 inches
• Length: 0.880 inches
• Weight: 0.41 lb
• Max RPM: 6000
• Torque Rating (Max): 450.0 in lb
• Temperature Range (Max): 275 °F
• Temperature Range (Min): -30 °F
• Insert Style: Two Piece Split with Ring
• Coupling Size: 6
• HP @ RPM: 12.9 hp at 1800 rpm
• Torsional Stiffness: 1718 inch pounds/radian
