Lovejoy 68514449969 Universal Joint Boot

Product Description

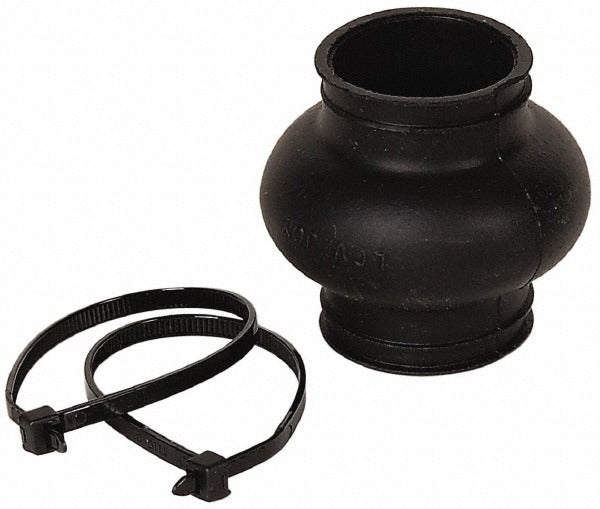

The LOVEJOY 68514449969 is a universal joint boot designed to protect U-joint assemblies from contamination, moisture, and debris. It features a 7/16-inch inside diameter and a 1-1/2-inch outside diameter, with an overall length (OAL) of 1.52 inches and a bore depth of 7/8 inch. Rated for up to 1,176 inch-pounds of torque, this boot provides a reliable seal around the joint interface. It is installed by mechanical and drive-line technicians working on rotating-shaft assemblies where maintaining lubrication and excluding contaminants are essential to service life.

This universal joint boot is suited for drive-shaft and rotating-shaft applications where a protective flexible boot is required over the U-joint. Its compact profile and defined bore geometry make it a direct-fit component in assemblies requiring the specified inside and outside diameters. Each package contains two boots, making it practical for twin-joint service or to keep a spare on hand. The part is appropriate for both initial installation and replacement service in light mechanical and drive-line applications.

Key Features

• Rated torque capacity of 1,176 inch-pounds for reliable load handling
• 7/16-inch inside diameter and 1-1/2-inch outside diameter for precise fitment
• 1.52-inch overall length accommodates standard U-joint boot seats
• 7/8-inch bore depth for secure seating over the joint
• Sold in a two-piece package quantity for back-to-back joint service
• Flexible boot construction protects against contamination and moisture ingress

Compatibility

Designed as an OEM-style replacement boot for universal joint assemblies requiring a 7/16-inch inside diameter and 1-1/2-inch outside diameter boot with a 1.52-inch OAL and 7/8-inch bore depth.

Installation Notes

Installation is typically performed by a qualified mechanical or drive-line technician. Before servicing the U-joint assembly, ensure the shaft is de-energized, stationary, and properly supported to prevent unintended rotation. Inspect the joint and surrounding components for wear or damage before installing the replacement boot. Follow all applicable manufacturer guidelines and workplace safety procedures during disassembly and reassembly.
