LOVEJOY 68514436047 3J-FLNG-1/2-1/8X1/16KW

Product Description

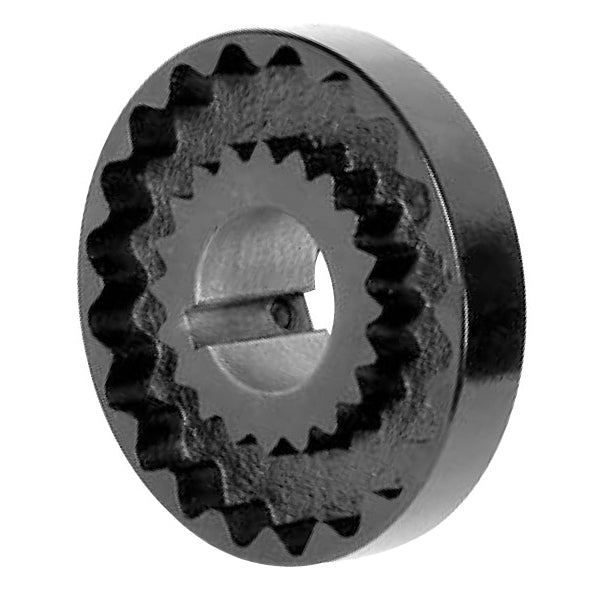

LOVEJOY 68514436047 S-Flex Coupling Flange is essential for power transmission applications. This Type J finished bore flange fits a half-inch bore and provides reliable mechanical coupling. The flange is designed for 3J coupling use, with a diameter of one and a half inches and a hub length of zero point four four inches. It includes a keyway of one eighth by one sixteenth inches and supports a maximum speed of nine thousand two hundred rotations per minute.

• Made from die-cast zinc for strength and durability.
• Includes two setscrews for secure installation.
• Compatible with EPDM or neoprene sleeves for varied applications.

Product Highlights

This flange provides effective power transmission and is designed for professional use in various mechanical systems.

Product Information

Standard Information

• Manufacturer: LOVEJOY INC
• Type: Type J Finished Bore

Technical Specifications

• Bore Diameter: 1/2 in
• Coupling Size: 3J
• Hub Diameter: 1-1/2 in
• Hub Length: 0.44 in
• Keyway Size: 1/8 x 1/16 in
• Length Through Bore: 0.81 in
• Material: Die Cast Zinc
• Maximum Speed: 9200 rpm
• Screw Size: 1/4-20
