Lovejoy 68514427815 Variable Speed Pulley Econoline

Product Description

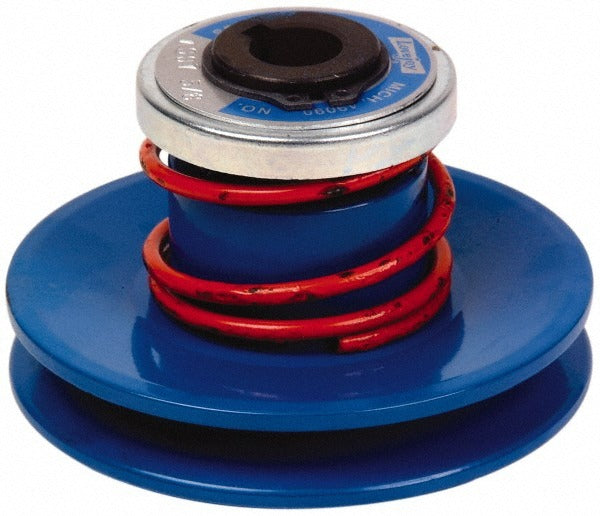

The LOVEJOY 68514427815 is a spring loaded variable speed pulley from the Econoline series, designed for use in belt-driven power transmission systems. This pulley automatically adjusts its pitch diameter under spring tension to vary output speed without manual intervention. It measures 2.81 inches in length with a maximum pitch diameter of 3.75 inches and a 4-inch outside diameter. The 0.5-inch bore accepts standard A-section V-belts and is supplied without a keyway. Licensed HVAC technicians and mechanical contractors install this type of component on fan and blower assemblies where variable airflow control is required.

This variable speed pulley is suited for residential and light commercial HVAC blower applications, motor-driven fan systems, and general industrial belt drive setups. It is rated at 0.5 horsepower at 1750 RPM and 0.333 horsepower at 1150 RPM, making it appropriate for fractional horsepower motor drives operating within those speed ranges. The Econoline series targets cost-effective replacement and retrofit installations where a spring-tensioned automatic pitch adjustment is preferred over fixed-pitch pulleys.

Key Features

• Spring loaded design automatically varies pitch diameter for continuous speed adjustment
• Maximum pitch diameter of 3.75 inches with a 4-inch outside diameter
• Minimum pitch diameter of 1.62 inches provides a wide speed range
• Rated 0.5 HP at 1750 RPM and 0.333 HP at 1150 RPM for fractional horsepower drives
• Compatible with A-section V-belts per standard belt trade sizing
• Supplied without keyway for straightforward bore fitment

Compatibility

Designed as an OEM-style replacement variable speed pulley for fractional horsepower belt drive systems using A-section V-belts, within the Econoline series product line.

Installation Notes

Installation should be performed by a qualified HVAC technician or mechanical contractor. Disconnect and lock out electrical power to the motor before removing or installing any pulley. Verify that the replacement pulley bore, belt section, and horsepower rating match the existing drive configuration before mounting. Consult applicable mechanical and electrical codes, including NFPA 70 (NEC), for motor disconnect and guarding requirements when servicing belt drive assemblies.
