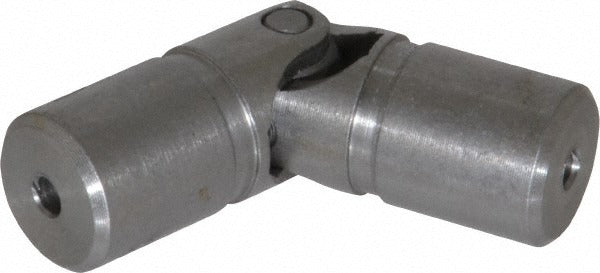

Lovejoy 68514415718 D-type Single Universal Joint

Product Description

The LOVEJOY 68514415718 is a D-Type single universal joint designed to transmit rotational force through angled or misaligned drive shafts in mechanical drive systems. It handles a torque capacity of 540 inch-pounds, making it suitable for moderate-duty power transmission applications. The joint features an 11/16-inch bore depth with a 5/16-inch inside diameter boot and a 5/8-inch outside diameter boot. Overall assembled length is 2-1/4 inches. Licensed technicians and mechanical tradespeople working on drive train assemblies, HVAC equipment, or light industrial machinery typically install this component.

This universal joint is used in applications where a shaft must transmit torque across an angular offset. It fits residential and light commercial mechanical systems where compact, single-joint configurations are required. The D-Type designation indicates the joint body profile, which is common in compact drive assemblies where space and weight are limited. It is sold individually and packaged as a single unit per order.

Key Features

• 540 inch-pound torque capacity for moderate-duty drive applications
• D-Type single universal joint configuration for compact installations
• 11/16-inch bore depth with 5/16-inch inside and 5/8-inch outside boot diameters
• 2-1/4-inch overall assembled length for space-constrained drive trains
• Single-piece packaging with minimum order quantity of one unit

Compatibility

Designed as a replacement or new-installation D-Type single universal joint for mechanical drive assemblies requiring a 540 inch-pound torque rating and the specified bore and diameter dimensions.

Installation Notes

Installation should be performed by a qualified mechanical technician familiar with drive shaft and power transmission assemblies. Always de-energize and lock out the drive system before removing or installing any universal joint. Verify shaft alignment and angular offset are within the joint's rated operating range before finalizing the installation. Follow applicable mechanical and equipment manufacturer guidelines during service.
