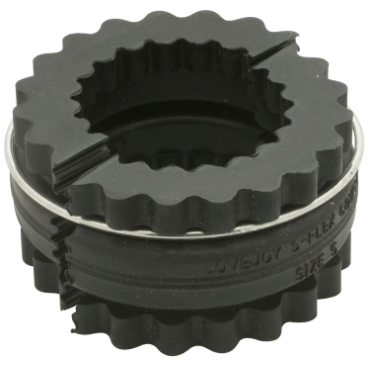

Lovejoy 5ESLEEVE 5 E Sleeve | S-Flex Endurance Shear Type Coupling Inserts

Product Description

Lovejoy 5ESLEEVE is an S-Flex Endurance shear type coupling insert made from EPDM. This coupling insert is engineered to outperform previous designs, providing durability and reliability for various mechanical applications.

• EPDM construction enhances lifespan and performance
• Interchangeable with industry standards
• Available in multiple flange sizes

Product Highlights

The S-Flex Endurance coupling inserts are designed for use in applications requiring high flexibility and strength. These inserts ensure efficient transmission of power and can withstand high RPMs and temperatures.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: 5ESLEEVE

Technical Specifications

• Color: Black
• Length: 3/4 in
• Weight: 0.28 LB
• HP @ RPM: 6.9 hp @ 1800 rpm
• Material: EPDM
• Maximum RPM: 7,600 rpm
• Coupling Size: 5
• Axial Misalignment: 0.125 in
• Torque Rating (Max): 240.0 in lb
• Temperature Range (Min): -30 °F
• Temperature Range (Max): 375 °F
• Wind-Up Angle @ Nominal Torque: 15 °
• Torsional Stiffness (Inch Pounds/Radian): 916
• Insert Style: Two Piece Split w/ Ring
• Outside Diameter: 2.9400 in
• EAN or UPC: 685144353689
