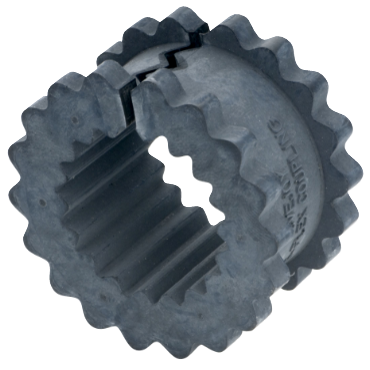

Lovejoy 4JESSLEEVE 4 JES Sleeve | S-Flex Endurance Shear Type Coupling Inserts

Product Description

The Lovejoy 4JESSLEEVE is a component designed for use in S-Flex Endurance shear type coupling systems. This EPDM sleeve offers high performance and durability.

• Compatible with industry standard couplings.
• Constructed from EPDM material for longevity.
• Maintains torque and performance across a wide range of temperatures.

Product Highlights

The Lovejoy 4JESSLEEVE excels in applications requiring reliable performance and quick installation, making it an ideal choice for HVAC and mechanical systems.

Product Information

Standard Information

• Brand: Lovejoy
• Part #: 102130963

Technical Specifications

• Temperature Range [Min]: -30 °F
• Temperature Range [Max]: 375 °F
• Wind-Up Angle @ Nominal Torque: 15 °
• Sleeve Type: JES
• Torque Rating [Max]: 120.0 in lb
• Material: EPDM
• Axial Misalignment: 0.125 in
• HP @ RPM: 3.4 hp @ 1800 rpm
• Insert Style: One Piece Split
• Length: 0.630 in
• RPM [Max]: 7,600 rpm
• Torsional Stiffness (Inch Pounds/Radian): 458
• Color: Black
• Coupling Size: 4
• Outside Dia.: 2.3100 in
• Weight: 0.13 LB
• EAN or UPC: 685144366955
