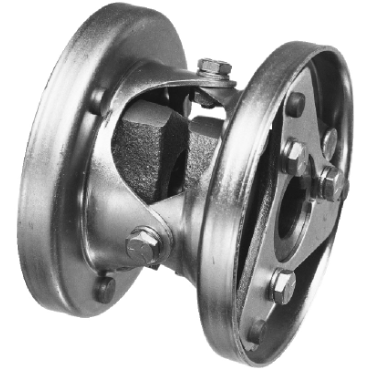

Lovejoy 40HTOUTERFLANGE 40HT Outer Flange

Product Description

The Lovejoy 40HTOUTERFLANGE is a Deltaflex outer flange designed to work efficiently in various coupling applications. This flange is compatible with a range of equipment, ensuring flexibility and durability across multiple settings.

• 4.38 inches Outside Diameter
• Zero lubrication necessary
• Capable of high-speed applications

Product Highlights

This flange operates smoothly under misalignment and provides a longer equipment life without the need for special tools for visual alignment.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: 40HTOUTERFLANGE

Technical Specifications

• Coupling Type: Flex-Link
• HP @ RPM: 1.2 hp @ 100 rpm
• Allowable Continuous Vibratory Torque: 1890 in lb
• Outside Diameter: 4.38 inches
• Torque [Max]: 1260 in lb
• Rated HP @ 1,750 rpm (Standard Motor): 35 hp
• Bore Range [Max]: 1.625 inches
• Rated Power @ 100 rpm: 2 hp
• Angular Misalignment: 6 degrees
• Material: Steel
• Set Screw Size: 1/4-20
• Parallel Misalignment: 0.12 inches
• RPM [Max]: 8000 rpm
• Bore Dia. [Max]: 1 3/8 inches
• Rated HP @ 3,500 rpm (Standard Motor): 70 hp
• Weight: 1.05 lbs
• EAN or UPC: 685144390103
