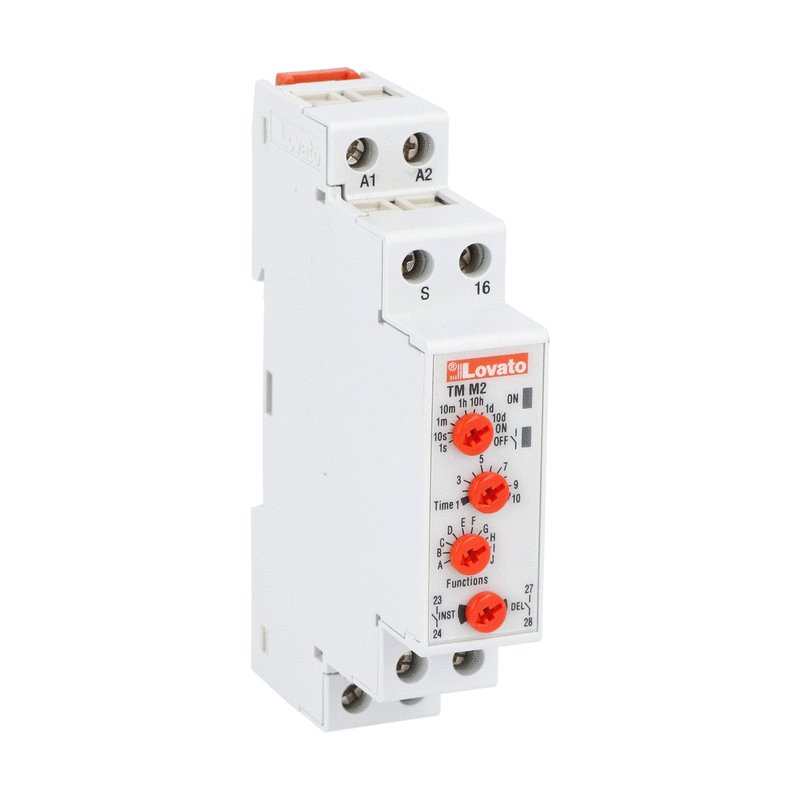

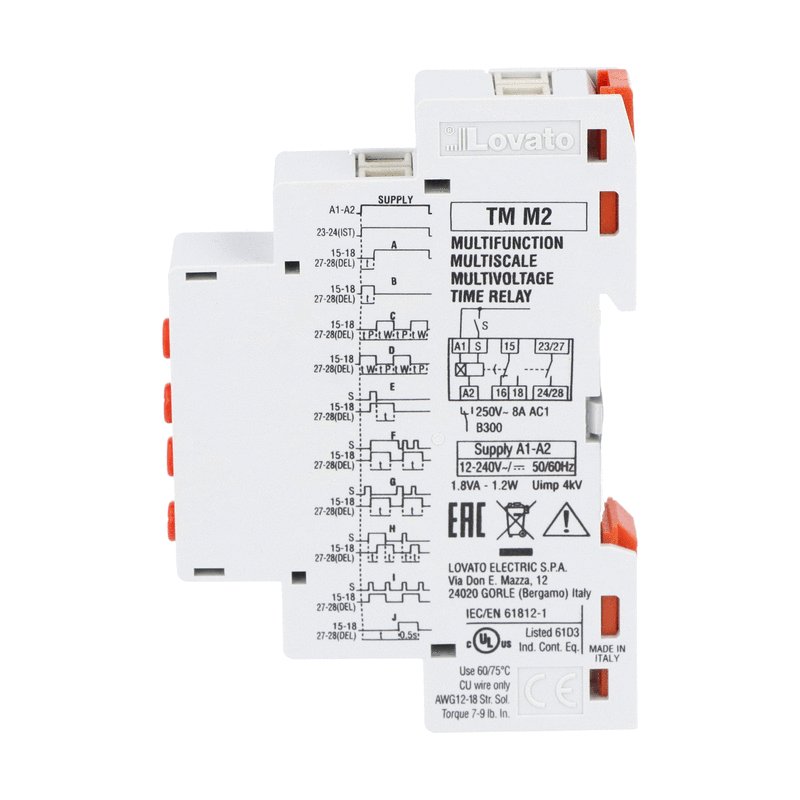

Lovato TMM2 Multifunction Time Relay 12-240VAC/DC

Product Description

The LOVATO TMM2 is a multifunction time relay with multiscale and multivoltage capabilities. This modular version features 2 relay outputs and operates within a 12...240VAC/DC range. It is suitable for modular-slot switchboards and offers selectable time ranges and functions via potentiometers.

• Multifunction, multiscale, and multivoltage capabilities
• Features 2 relay outputs
• Operates within a 12...240VAC/DC range

Product Highlights

The LOVATO TMM2 is a versatile multifunction time relay suitable for various applications with its wide voltage range and multiple functions.

Product Information

Standard Information

• Brand: LOVATO
• Manufacturer Part Number: TMM2
• Country of Origin: Canada

Technical Specifications

• Product designation: Time relay
• Product type designation: TMM2
• Number of DIN modules: 1
• Function: Multifunction
• Rated auxiliary supply voltage Us: 12 240VAC/DC
• Rated auxiliary supply voltage Us AC min: 12 VAC
• Rated auxiliary supply voltage Us AC Max: 240 VAC
• Rated auxiliary supply voltage Us DC min: 12 VDC
• Rated auxiliary supply voltage Us DC Max: 240 VDC
• Rated frequency: 50/60 Hz
• Operating voltage range: 0.85...1.1 Us
• Maximum power consumption / dissipation: 1.1VA/0.8W (12...48VAC/DC), 1.8VA/1.2W (110...240VAC/DC)
• Immunity time for microbreakings: 15 ms
• Time setting range: 0.1s...10days
• Setting accuracy: < 9 %
• Repeat accuracy: < 0.2 %
• Influence of voltage variation: < 0.1 %
• Influence of temperature variation: < 0.2 %
• Minimum ON time: 25 ms
• Resetting time During timing: 100 ms
• Resetting time Elapsed time: 50 ms
• Number of relays: 2 Nr.
• Contact arrangement: 1 inst./delayed N/O + 1 delayed C/O
• Maximum switching voltage: 250 VAC
• IEC Conventional free air thermal current Ith 40 C: 8 A
• UL/CSA and IEC/EN 60947-5-1 designation: B300
• Rated insulation voltage Ui: 250 V
• Rated impulse withstand voltage Uimp: 4 kV
• Power frequency withstand voltage: 2 kV
• Terminals type: Screw
• Tightening torque Max: 0.8 Nm
• Conductor section min AWG/Kcmil: 24 12
• Conductor section max AWG/Kcmil: 12 18
• Conductor section min IEC: 0.2 mm
• Conductor section max IEC: 4 mm
• Mechanical life: 30000000 cycles
• Electrical life (with rated load): 100000 cycles
• Operating temperature min: -20 C
• Operating temperature max: +60 C
• Storage temperature min: -30 C
• Storage temperature max: +80 C
• Relative humidity: <90 %
• Maximum Pollution degree: 2
• Overvoltage category: III
• Execution (n of modules): 1
• Material: Self-extinguishing polyamide

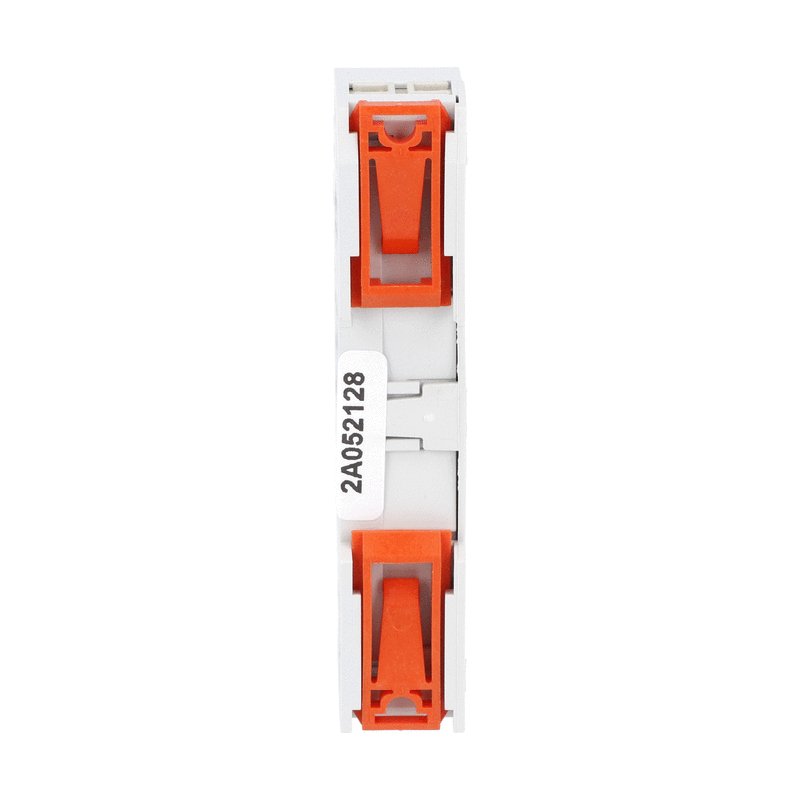

• Mounting: DIN rail 35 mm
• Degree of protection: IP40 on front, IP20 terminals
• ETIM 8.0: EC001439 - Timer relay
• UNSPSC Code: 39120000
• Brand: LOVATO Electric
• Mounting Type: DIN Rail Mount
• Series: TMM2 Series
• Manufacturer Part Number: TMM2
• Product Series: TM
• Family Series: Lovato Relays, TM Series
• Description: Multi-Function Timer, 12-240VAC/DC, 0.1S-10Day, Selectable Scale, DIN Mount, SPDT+SPST-NO
• Operation: Flasher, Interval, Off Delay, On Delay, On Delay Impulse, On/Off Delay
• Contacts: SPDT (Timed), 1NO (Inst)
• Status Indicator: LED
• Time Range Adjustment: Onboard
• Adjustment Operator: Knob
• Timing Range: 0.1 s-10 Days
• Max Time: 10 Days
• Time Tolerance: 9 %
• Nominal Coil Voltage: 12 VAC, 24 VAC, 48 VAC, 120 VAC, 208 VAC, 240 VAC, 12 VDC, 24 VDC, 48 VDC, 125 VDC, 250 VDC
• AC Voltage: 12-240 VAC
• DC Voltage: 12-240 VDC
• Contact Rating: 8 A
• Termination: Screw Terminals
• Protection Rating: IP40
• Approvals: cULus, EAC
• Type of automation module: timer
• Counting range: 1...10days
• Kind of output: NO, SPDT
• Output 1 electrical parameters: 250V AC / 8A
• Manufacturer series: TM
• Counter operation modes: ON and OFF delay, ON for the set interval, symmetrical cyclical operation pause first, symmetrical cyclical operation pulse first
• Electrical connection: screw terminals
• IP rating: IP40 (from the front)
• Indication: LED
• Supply voltage: 12...240V AC 12...240V DC
• EAN code: 8013975147115
