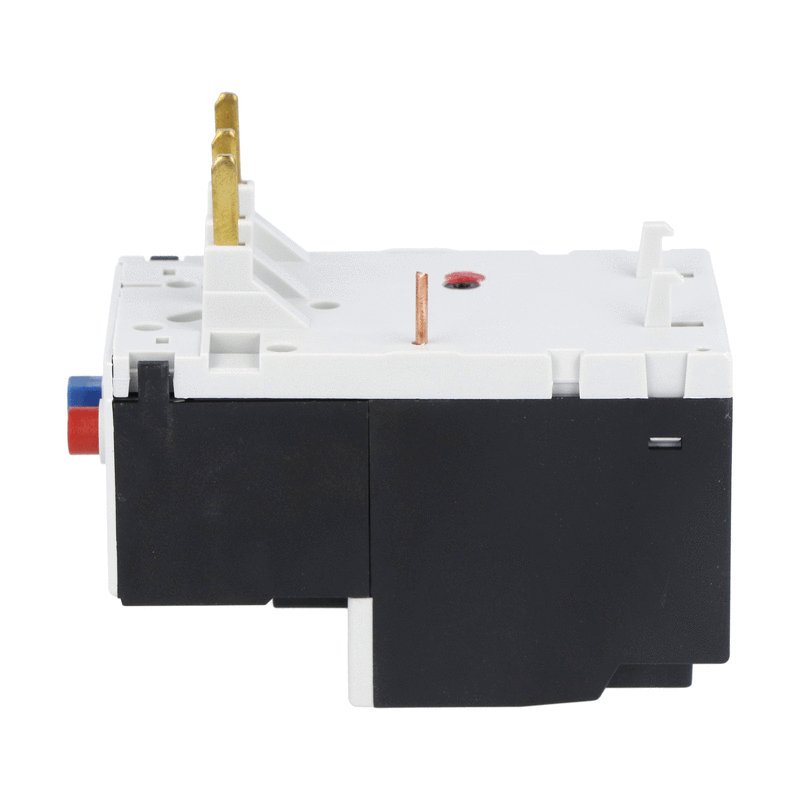

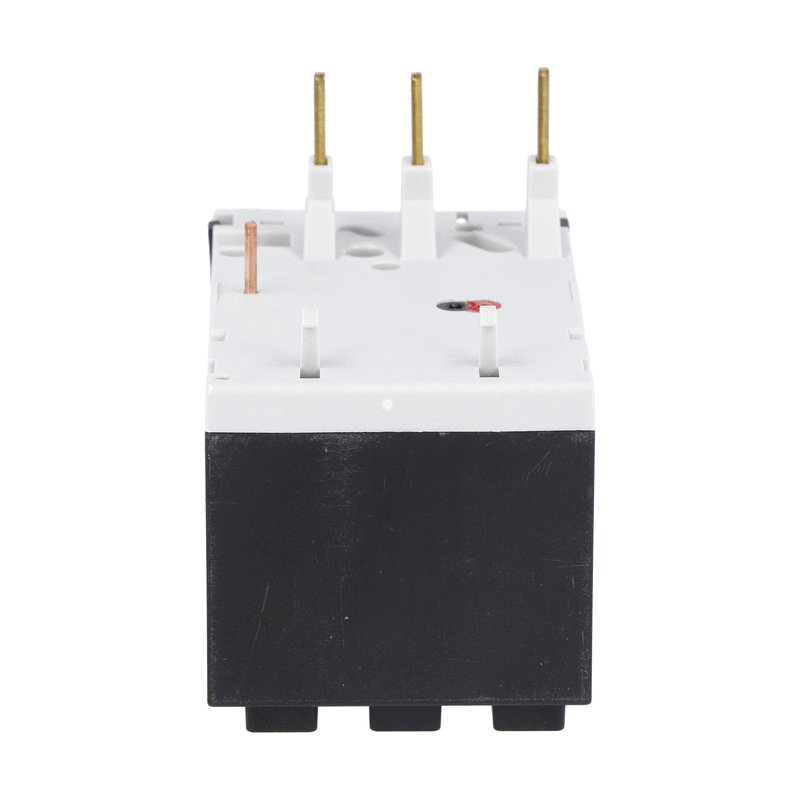

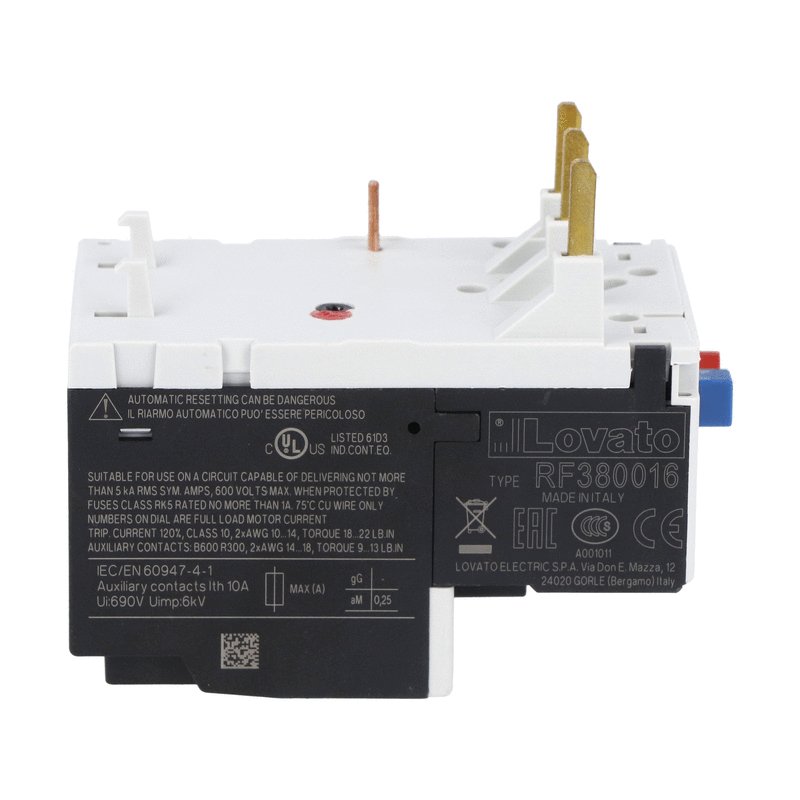

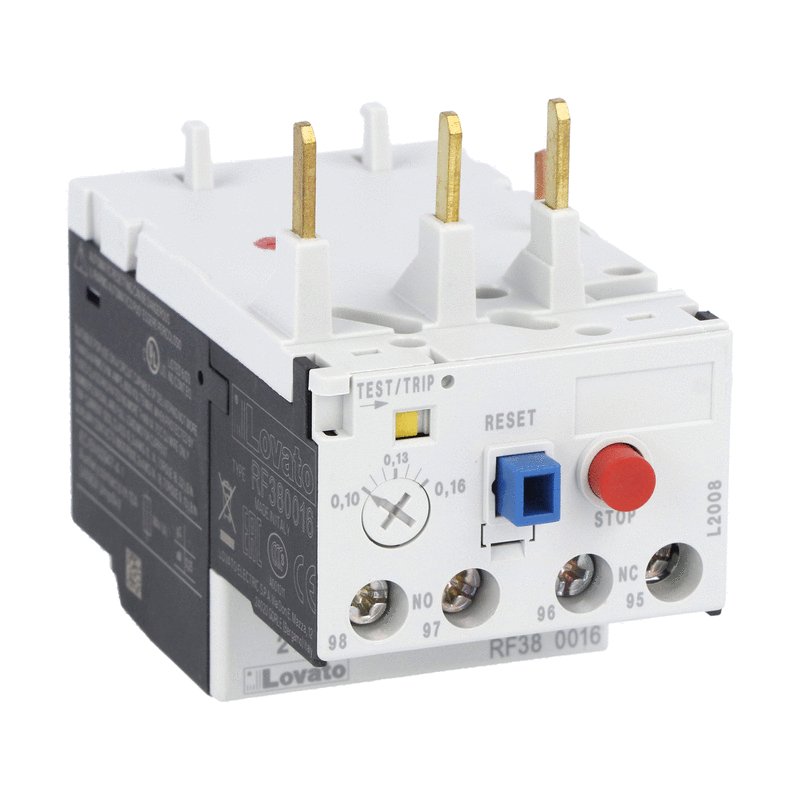

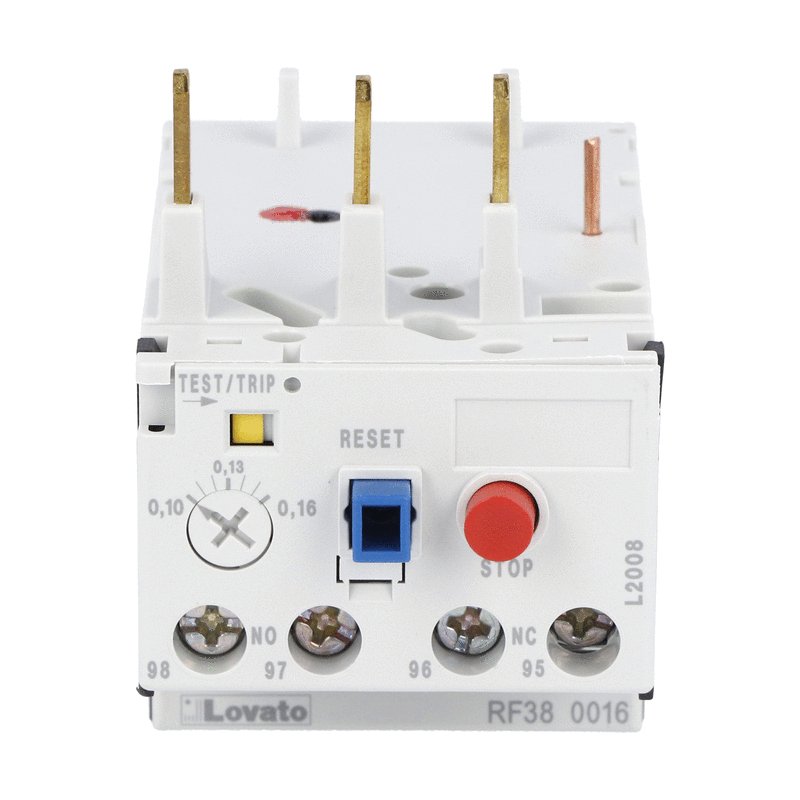

Lovato RF382300 Motor Protection Relay 17-23A

Brand: LOVATO
SKU: RF382300
Availability: In Stock

Ships same day if ordered by 12 pm
$93.49
$93.49
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The LOVATO RF382300 is a motor protection relay with phase failure/single-phase sensitivity. This three-pole relay features manual or automatic resetting and direct mounting on BF09 - BF38 contactors. Adjustable from 17 to 23 AMPS, it provides complete motor protection when wired to the coil connection of the contactor.

  • Motor protection relay
  • Phase failure/single-phase sensitive
  • Manual or automatic resetting

Product Highlights

Provides thermal overload protection between 17-23A. Direct mounting on BF09 - BF38 contactors.

Product Information

Standard Information

  • Brand: LOVATO
  • Manufacturer Part Number: RF382300
  • Country of Origin: ITALY
Technical Specifications
Product designation
RF38
Product type designation
Motor protection relay
Number of poles
3
Overvoltage category
III
Pollution degree
3
Frontal IP degree
IP20
Type of release
Thermal
Protection fuse gG (IEC)
50 A
Protection fuse aM (IEC)
25 A
Protection fuse RK5 (UL)
90 A
Phase failure detection
yes
Reset mode
Manual or automatic
Rated insulation voltage Ui IEC/EN
690 V
Rated impulse withstand voltage Uimp
6 kV
Rated operational voltage
690 V
Operational frequency min
0 Hz
Operational frequency max
400 Hz
Operational current min
17 A
Operational current max
23 A
Tripping class
10A
Test Button
Yes
Trip indicator
yes
Terminals type
screw and washer
Terminals screw
M4
Terminals width
12.6 mm
Terminals tool
Phillips 2
Tightening torque for terminals min
2 Nm
Tightening torque for terminals max
2.5 Nm
Conductor section Flexible w/o lug max
10 mm 2
Conductor section Flexible c/w lug max
6 mm 2
AWG/kcmil max
8
Auxiliary contacts NO Nr.
1
Auxiliary contacts NC Nr.
1
Auxiliary Rated insulation voltage Ui IEC/EN
690 V
Auxiliary Rated impulse withstand voltage Uimp
6 kV
Auxiliary Rated operational voltage
690 V
Operating current AC15 24V
3 A
Operating current AC15 120V
3 A
Operating current AC15 240V
1.5 A
Operating current AC15 380V
0.95 A
Operating current AC15 480V
0.75 A
Operating current AC15 500V
0.72 A
Operating current AC15 600V
0.6 A
Operating current DC13 125V
0.11 A
Operating current DC13 600V
0.22 A
IEC Conventional free air thermal current Ith 45.11.1000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000
10 A
Auxiliary circuit type
screw and washer
Auxiliary circuit screw
M3.5
Auxiliary circuit width
8 mm
Auxiliary circuit tool
Phillips 2
Auxiliary circuit Flexible w/o lug max
2.5 mm 2
Auxiliary circut Flexible c/w lug max
2.5 mm 2
Tightening torque for terminals Auxiliary circuit min
0.8 Nm
Tightening torque for terminals Auxiliary circuit max
1 Nm
Operating temperature min
-25 °C
Operating temperature max
60 °C
Storage temperature min
-50 °C
Storage temperature max
70 °C
Compensation temperature min
-20 °C
Compensation temperature max
60 °C
Max altitude
3000 m
Operating position
normal
Vertical plan allowable
±30°
Fixing
Direct mounting on BF09… BF38…
Full-load current (FLA) for three-phase AC motor at 480V
23 A
Full-load current (FLA) for three-phase AC motor at 600V
23 A
ETIM 8.0
EC000106 - Thermal overload relay
Operational current [A]
17...23
For contactor series
BF
Type
Phase failure / Single-phase sensitive
Type of mounting
Direct mounting on BF09… BF38…
AMP Range
17 to 23 AMPS
Phase loss protection?
Yes
Auxiliary contacts
1 N.O. and 1 N.C.
Mounts to
BF18/BF25/BF32
Manufacturer Part Number
RF382300
Manufacturer
Lovato
Product Series
BF
Family Series
Lovato Overload Relays, BF Series
Description
Thermal Overload Relay 17-23A
Current Rating
17-23 A
Poles
3
Output Contacts
1NO, 1NC
Trip Class
Class 10
Reset Type
Automatic, Manual
Connection Type
Direct Mounting
Ambient Temperature
-13-140 °F
Approvals
cUL, UL
Net Weight
0.3572 lbs
Gross Weight
0.3572 lbs
Brand
LOVATO Electric
For Use With
BF Series Contactors
Mounting Style
Contactor Mount
Series
RF Series
