Product Description

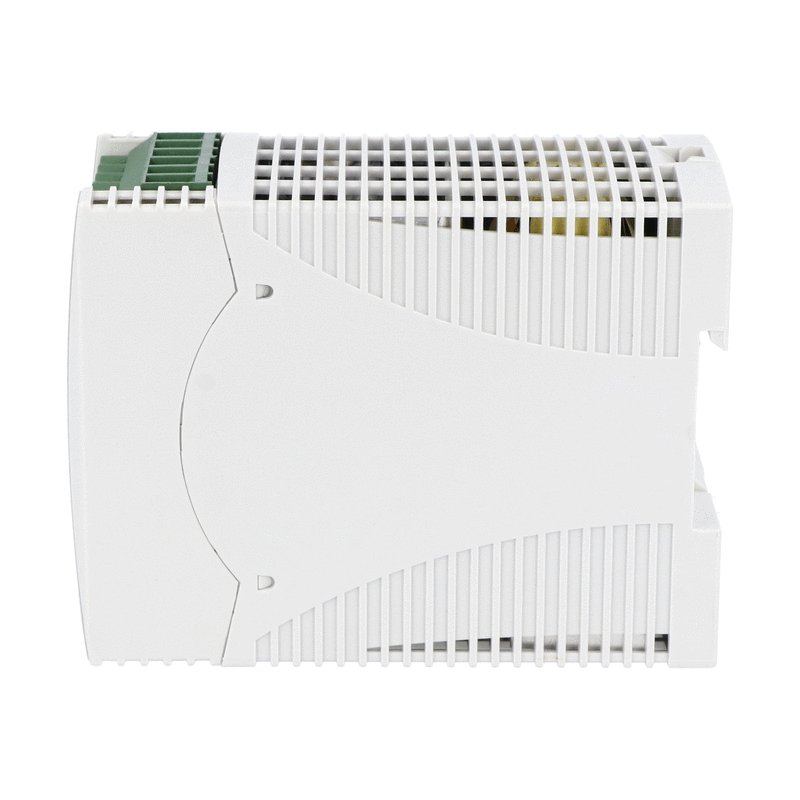

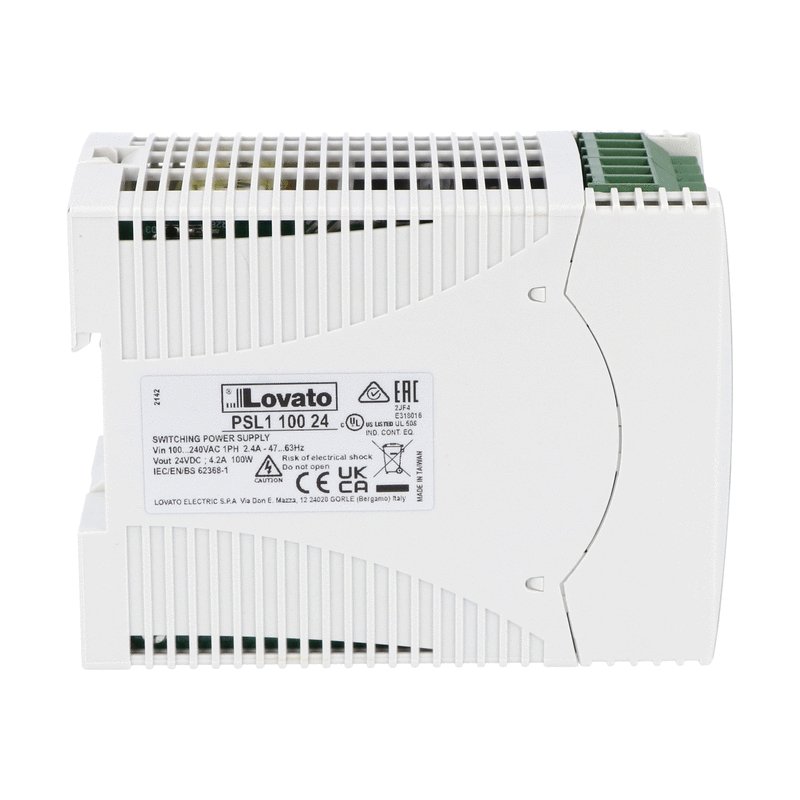

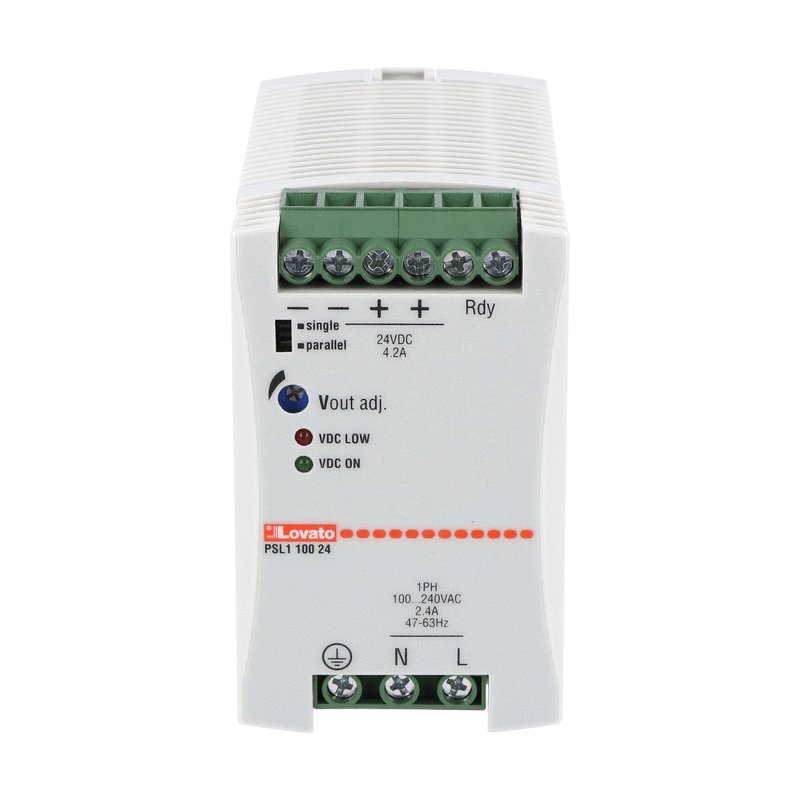

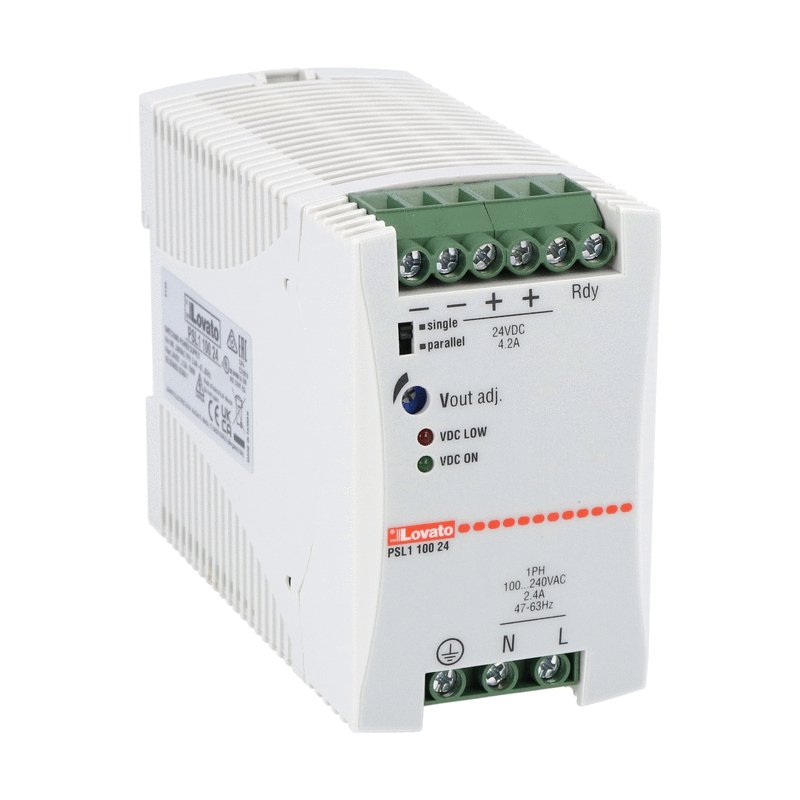

The LOVATO PSL110024 is a DIN rail switching power supply with a single-phase input. It delivers 24VDC at 4.2A, providing 100W of power. It is designed to power electromechanical and electronic devices with DC control, such as contactors, time relays, sensors, PLCs and DC motors.
- Single-phase input
- Short circuit and overload protection
- LED indicators for power and low voltage
Product Highlights
This power supply is ideal for automation systems and networks, offering reliable DC power for a variety of devices.
Product Information
Standard Information
-
Brand: LOVATO
-
Manufacturer Part Number: PSL110024
-
Country of Origin: ITALY
Technical Specifications
-
Product designation: Switching power supplies
-
Product type designation: PSL1
-
Input Type: Single-phase
-
Rated supply voltage AC: Multivoltage 100...240 VAC
-
Operating range AC min: 90 VAC
-
Operating range AC Max: 264 VAC
-
Operating range DC min: 120 VDC
-
Operating range DC Max: 375 VDC
-
Rated frequency: 50/60 Hz
-
Operational frequency min: 47 Hz
-
Operational frequency max: 63 Hz
-
Current consumption Max: 2400 mA
-
Insulation voltage Input/Output AC: 3000 VAC
-
Insulation voltage Input/Output DC: 4242 VAC
-
Internal fuse (250VAC): T3.15A 250VAC
-
Rated output voltage DC: 24 VDC
-
Voltage trimming (potentiometer) DC min: 22.5 VDC
-
Voltage trimming (potentiometer) DC Max: 28.5 VDC
-
Rated output current: 4.2 A
-
Rated output power: 100 W
-
Temperature coefficient: 0.03 %/ 0C
-
Line adjustment: 1 %
-
Load adjustment: 1 %
-
Efficency: 86 %
-
Overload protection: 110 140%
-
Short-circuit protection: Fold forward
-
Ripple & noise: 50 mV
-
Parallel connection: 3 Nr.
-
LED indicator for power on: Yes
-
LED indicator for low voltage: Yes
-
Power Rdy (Ready - minimum limit): Yes
-
Terminals type: Screw
-
Operating temperature min: -35 0C
-
Operating temperature max: +71 0C
-
Storage temperature min: -40 0C
-
Storage temperature max: +85 0C
-
Derating: 2.5%/ 0C above 60 0C
-
Material: Plastic
-
IEC degree of protection: IP20
-

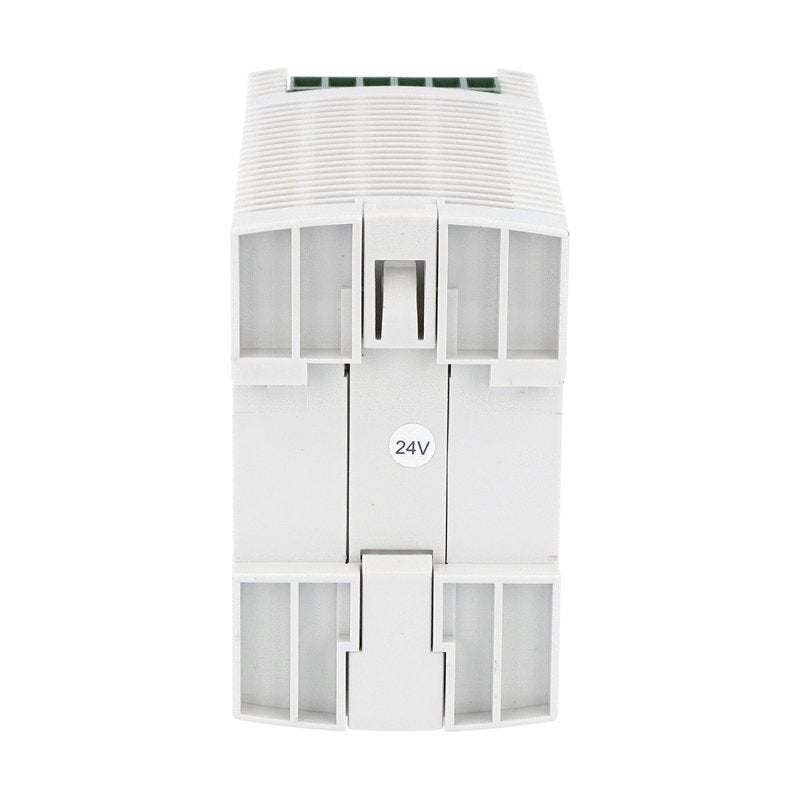

Mounting: On 35mm DIN rail
-
Mounting Type: DIN Rail Mount
-
Supply Voltage: 100-240 VAC
