Lovato HR5XS22 Socket For Relay

Product Description

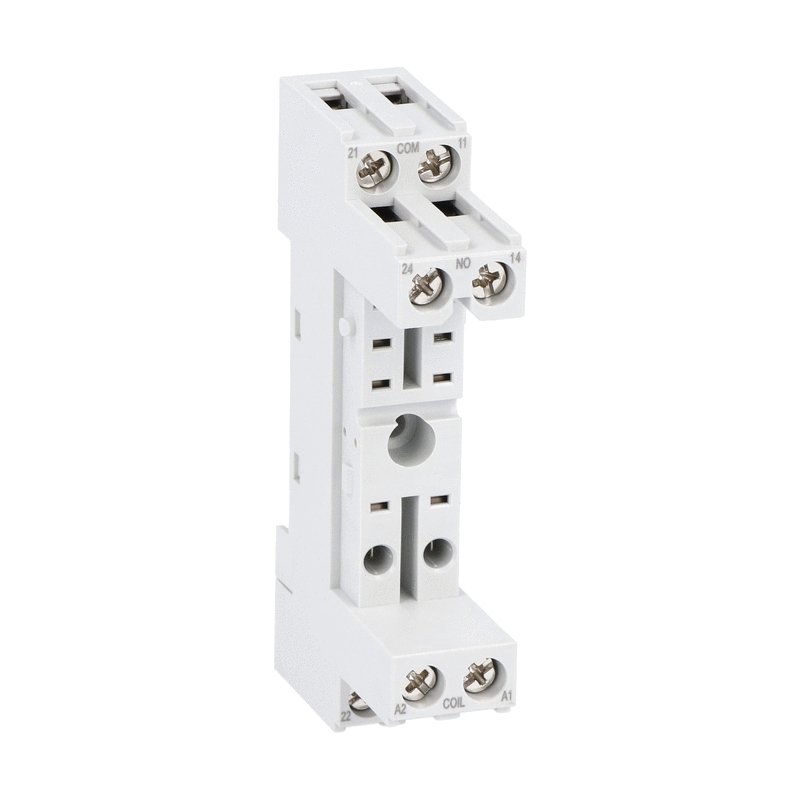

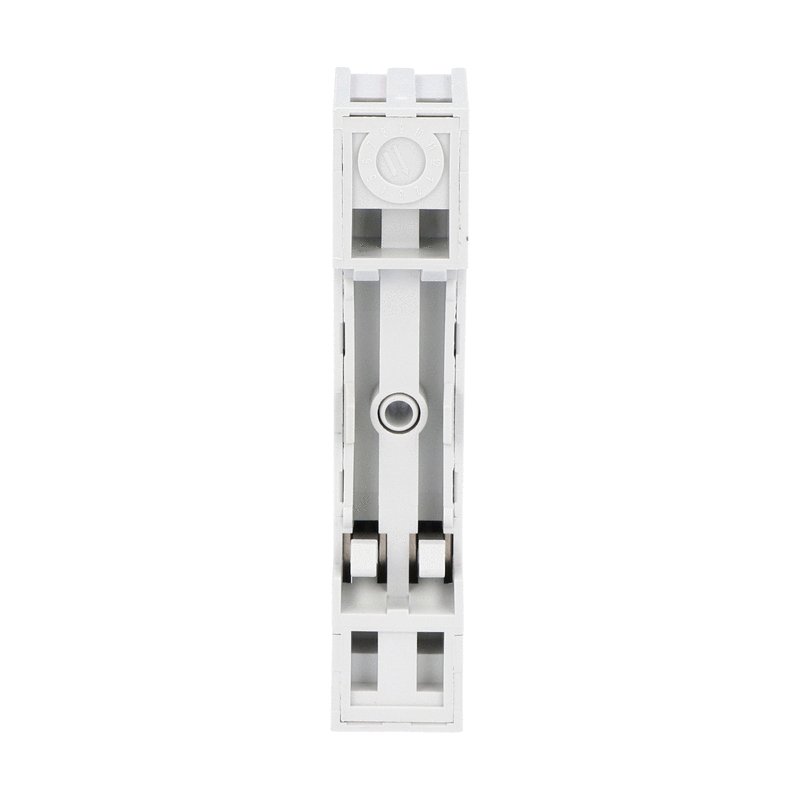

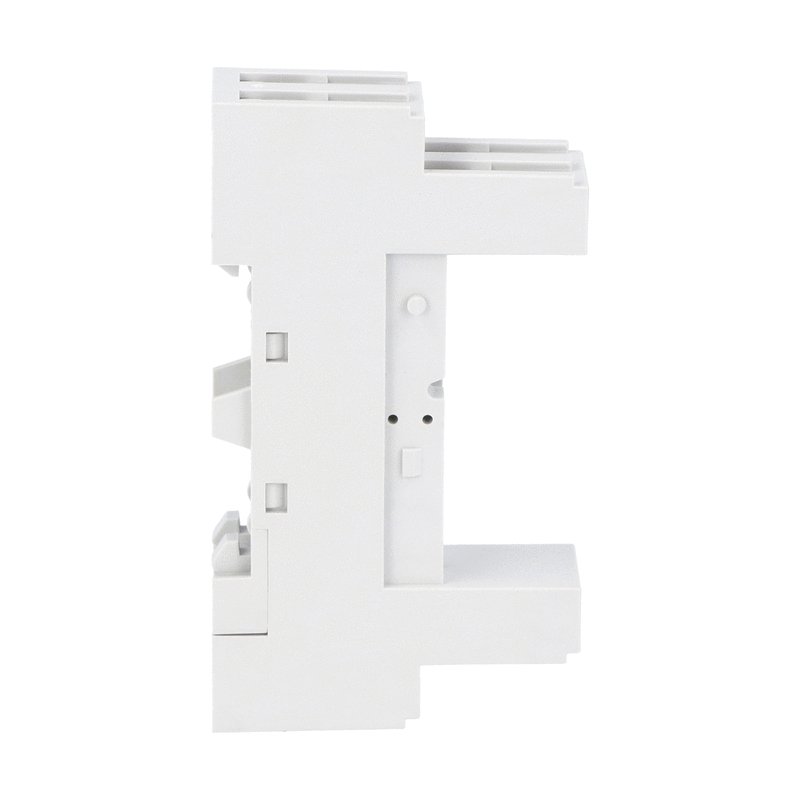

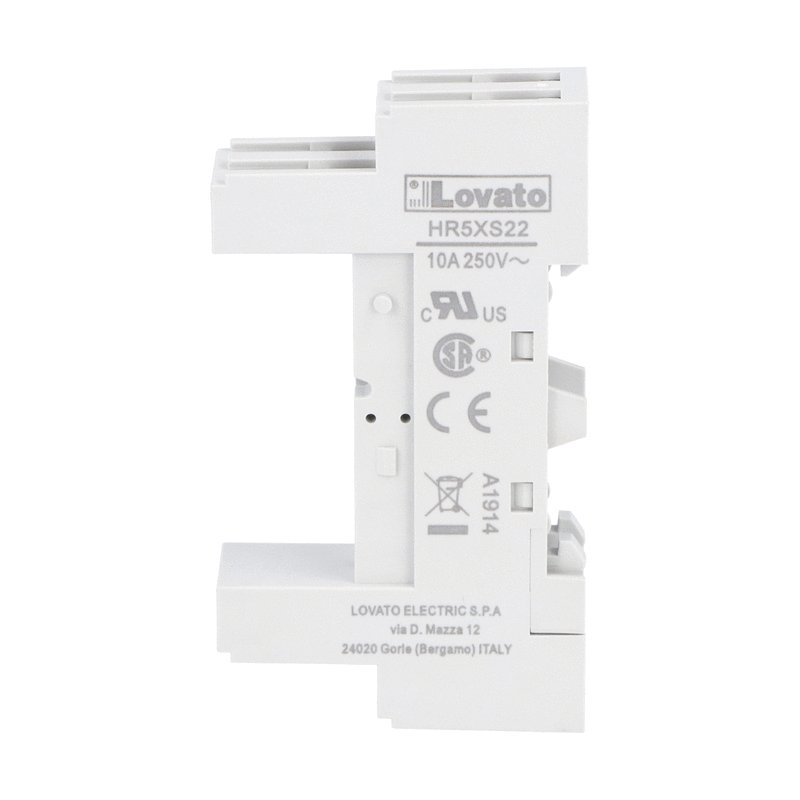

The LOVATO HR5XS22 is a socket for relays designed for fitting on DIN rails or with screws, utilizing screw terminals. It is compatible with HR30 and HR50 series relays. This socket provides a secure and reliable connection for your relay. It features a screw connection type and is designed for DIN rail mounting.

• Socket for relay
• Fitting on DIN rail or screws
• Screw terminals

Product Highlights

Socket for relay fitting on DIN rail or screws with screw terminals.

Product Information

Standard Information

• Brand: LOVATO
• Manufacturer Part Number: HR5XS22
• Country of Origin: ITALY

Technical Specifications

• Product designation: SOCKET
• Product type designation: HR5XS22
• Rated insulation voltage Ui IEC/EN: 250V
• Rated impulse withstand voltage Uimp: 4kV
• Max socket terminal tightening torque: 0.6Nm
• Socket screw tightening tool (cross / flat blade): Phillips 1/4.5mm
• Conductor section AWG/Kcmil min: 20
• Conductor section AWG/Kcmil max: 14
• Conductor section IEC min: 0.5mm
• Conductor section IEC max: 2.5mm
• Fixing: On 35mm DIN rail and with screw
• ETIM 8.0: EC001456 - Relay socket
• Brand: LOVATO Electric
• Manufacturer Part Number: HR5XS22
• Mounting Type: DIN Rail Mount
• Primary Type: Relay Sockets
• Series: HR Series
• Socket Mounting: DIN Rail
• Socket Terminals: Screw
• No. of Pins: 8Pins
• Current Rating: 10A
• Component Type: Relay Base/Socket
• Type of product: Socket
• Type of socket: Screw terminals
• Accessories for: HR30 HR50
• Order code: HR5XS22
• Type of electric connection (EF003961): Screw connection
• Mounting method (EF000003): DIN rail (top hat rail) 35 mm
• Function extension possible (EF003444): No
• With detachable clamps (EF003340): No
• Number of pins (EF005580): 8
